15 ELECTRICAL SYSTEM 130
V00580-11

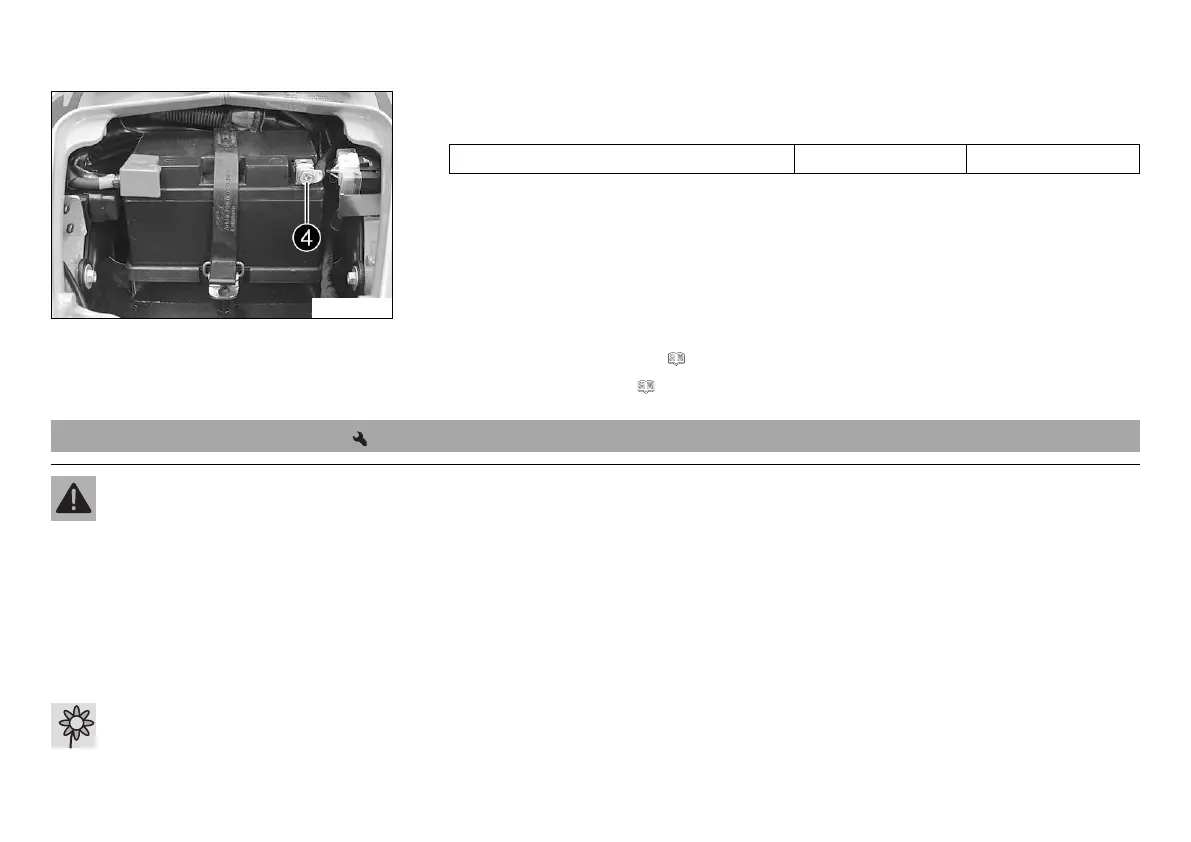

Connect negative cable
4
to the battery.
Guideline
Screw, battery terminal M6 2 Nm (1.5 lbf ft)
Finishing work
Mount the passenger seat. ( p. 86)
Set the time and date. ( p. 49)
15.3 Recharging the battery
Warning
Risk of injuryBattery acid and battery gases cause serious chemical burns.
Keep batteries out of the reach of children.
Wear suitable protective clothing and goggles.
Avoid contact with battery acid and battery gases.
Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least 15
minutes and contact a physician.
Warning
Environmental hazardBatteries contain environmentally-hazardous materials.
Do not dispose of batteries as household waste.
Dispose of batteries at a collection point for used batteries.
