KTM 690 Duke 2017 User Manual

15 ELECTRICAL SYSTEM 136
V00583-10

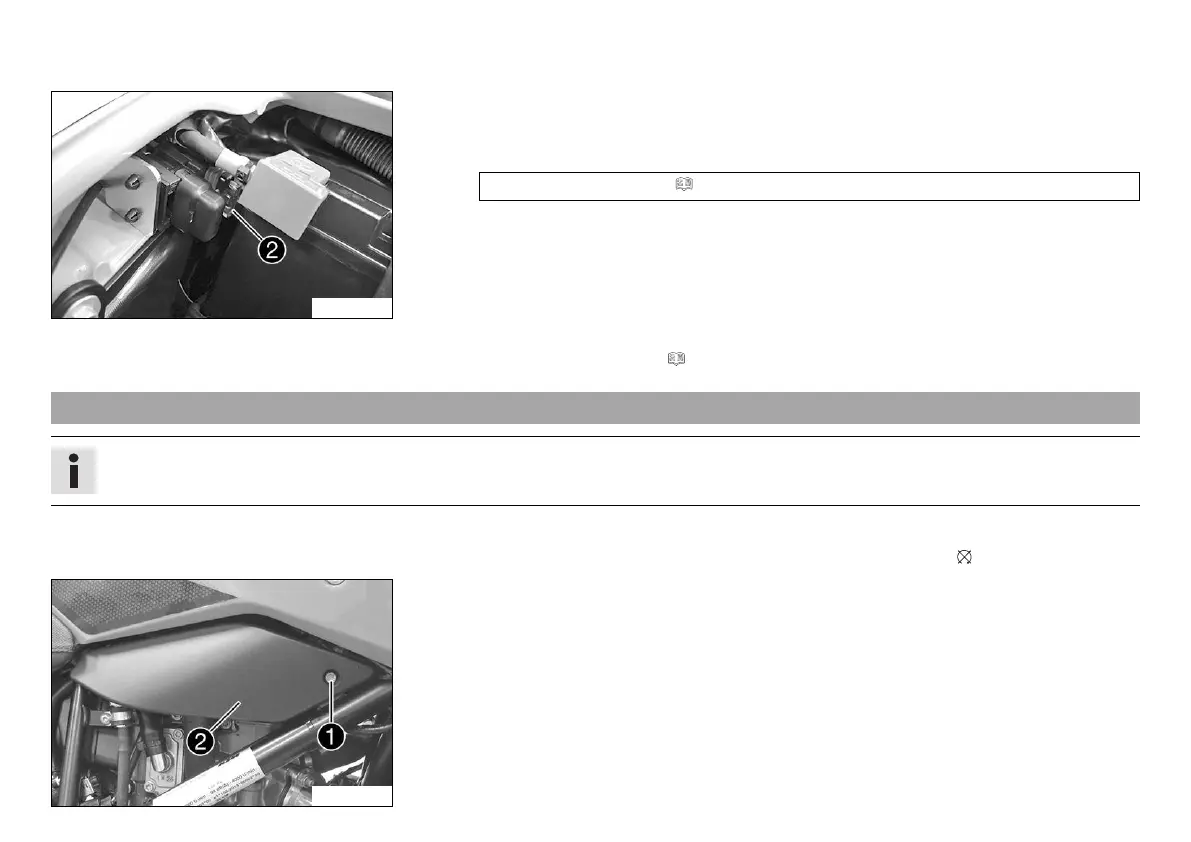

To change the fuse of the ABS return pump:
–
Remove the protection cap and fuse
2
.
– Insert a new fuse.
Fuse (58011109125) ( p. 186)
– Mount the protection cap.
Finishing work
– Mount the passenger seat. ( p. 86)
15.6 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located on the right under the fuel tank.
Preparatory work
– Switch off the ignition by turning the ignition key to the position .
V00084-10
Main work
(Duke R, 690 Duke EU)
–
Remove screw
1
.
–
Remove
2
the trim.

KTM 690 Duke 2017 Specifications

General

Displacement	690 cc
Compression Ratio	12.7:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Lubrication	Forced oil lubrication with 2 oil pumps
Front Suspension	WP upside-down Ø 43 mm
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	835 mm
Ground Clearance	192 mm
Wheelbase	1, 466 mm
Fuel Capacity	14 liters
Dry Weight	148.5 kg
Engine Type	Single-cylinder, 4-stroke
Torque	74 Nm @ 6, 500 rpm
Frame	Chromium-Molybdenum steel trellis frame
Rear Suspension	WP monoshock
Front Brake	Brembo four-piston radial fixed caliper, 320 mm disc
Rear Brake	Single 240 mm disc, Brembo single-piston caliper
ABS	Bosch 9M+ two-channel ABS (disengageable)
