KTM 690 Duke 2017 User Manual

12 SERVICE WORK ON THE CHASSIS 96
K00354-10

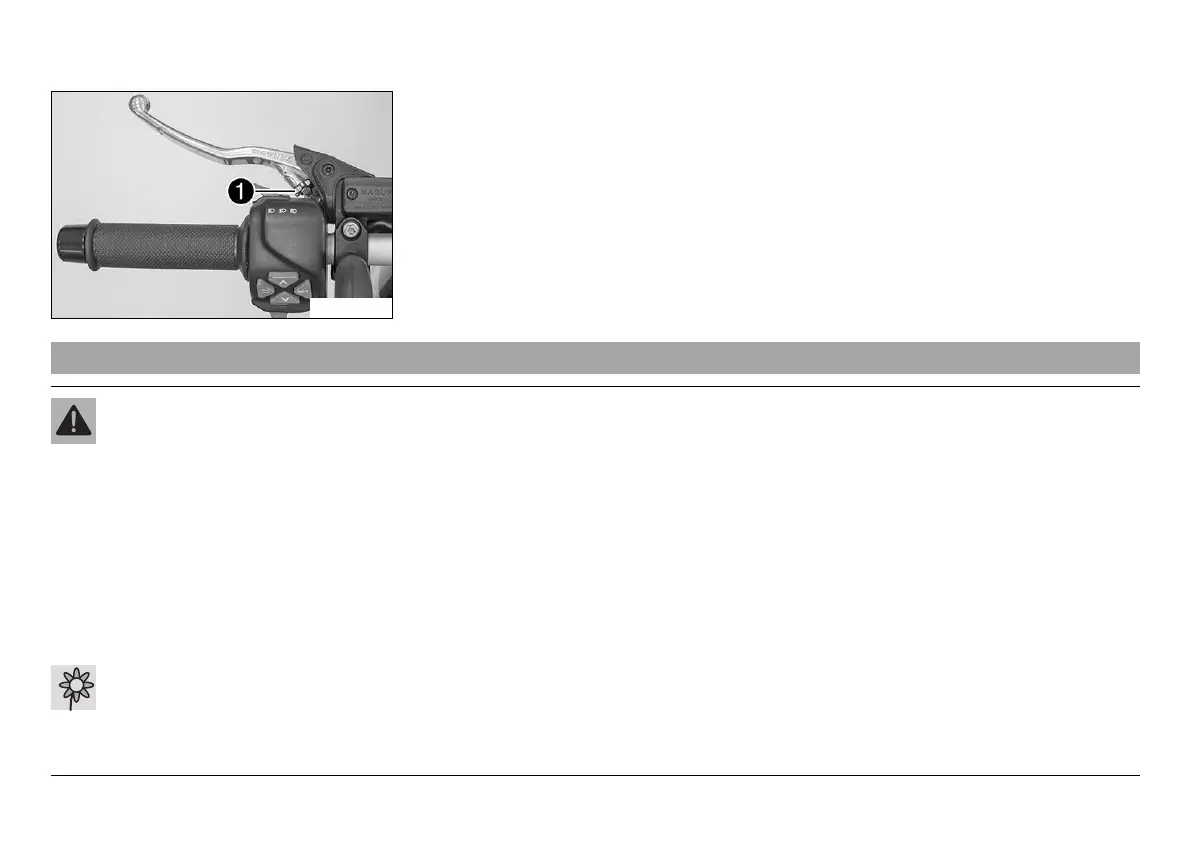

– Adjust the basic position of the clutch lever to your hand size by turning adjusting
screw
1
.
12.15 Checking/correcting the fluid level of the hydraulic clutch
Warning
Skin irritation Brake fluid causes skin irritation.
– Keep brake fluid out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Do not allow brake fluid to come into contact with the skin, the eyes or clothing.
– Consult a doctor immediately if brake fluid has been swallowed.
– Rinse the affected area with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water immediately and consult a doctor if brake fluid comes into contact with the eyes.
– If brake fluid spills on to your clothing, change the clothing.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regula-
tions.

KTM 690 Duke 2017 Specifications

General

Displacement	690 cc
Compression Ratio	12.7:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Lubrication	Forced oil lubrication with 2 oil pumps
Front Suspension	WP upside-down Ø 43 mm
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	835 mm
Ground Clearance	192 mm
Wheelbase	1, 466 mm
Fuel Capacity	14 liters
Dry Weight	148.5 kg
Engine Type	Single-cylinder, 4-stroke
Torque	74 Nm @ 6, 500 rpm
Frame	Chromium-Molybdenum steel trellis frame
Rear Suspension	WP monoshock
Front Brake	Brembo four-piston radial fixed caliper, 320 mm disc
Rear Brake	Single 240 mm disc, Brembo single-piston caliper
ABS	Bosch 9M+ two-channel ABS (disengageable)
