7 COMBINATION INSTRUMENT 38

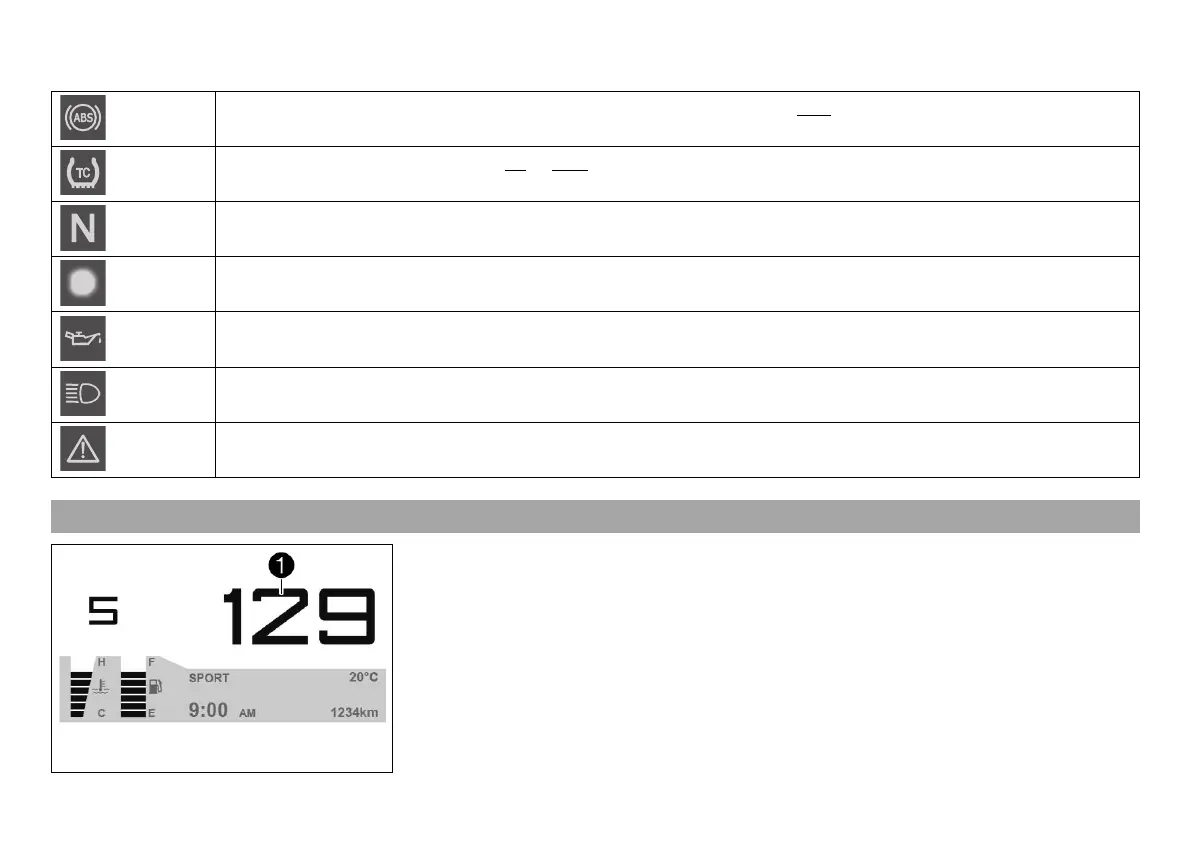

ABS warning lamp lights up yellow – Status or error messages relating to ABS. The ABS lamp flashes if the ABS
mode "SupMot" is enabled.
The TC lamp lights up yellow – The TC or MTC is not available. Contact an authorized KTM workshop. The TC lamp
flashes, if TC or MTC actively engage.
The idling speed indicator lamp lights up green – The transmission has shifted to idle.
The immobilizer indicator lamp lights up or flashes red – Status or error message for immobilizer/alarm system.
The oil pressure warning lamp lights up red – The oil pressure is too low.
The high beam indicator lamp lights up blue – The high beam is switched on.
The general warning lamp lights up yellow – An operating safety (warning) message was detected. This is also
shown on the display.
7.3 Speed
402647-11
Speed
1
is shown in kilometers per hour km/h or in miles per hour mph.

KTM 690 Duke 2017 Specifications

General

Displacement	690 cc
Compression Ratio	12.7:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Lubrication	Forced oil lubrication with 2 oil pumps
Front Suspension	WP upside-down Ø 43 mm
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	835 mm
Ground Clearance	192 mm
Wheelbase	1, 466 mm
Fuel Capacity	14 liters
Dry Weight	148.5 kg
Engine Type	Single-cylinder, 4-stroke
Torque	74 Nm @ 6, 500 rpm
Frame	Chromium-Molybdenum steel trellis frame
Rear Suspension	WP monoshock
Front Brake	Brembo four-piston radial fixed caliper, 320 mm disc
Rear Brake	Single 240 mm disc, Brembo single-piston caliper
ABS	Bosch 9M+ two-channel ABS (disengageable)
