KTM 690 Duke 2017 User Manual

15 ELECTRICAL SYSTEM 134
V00582-10
–

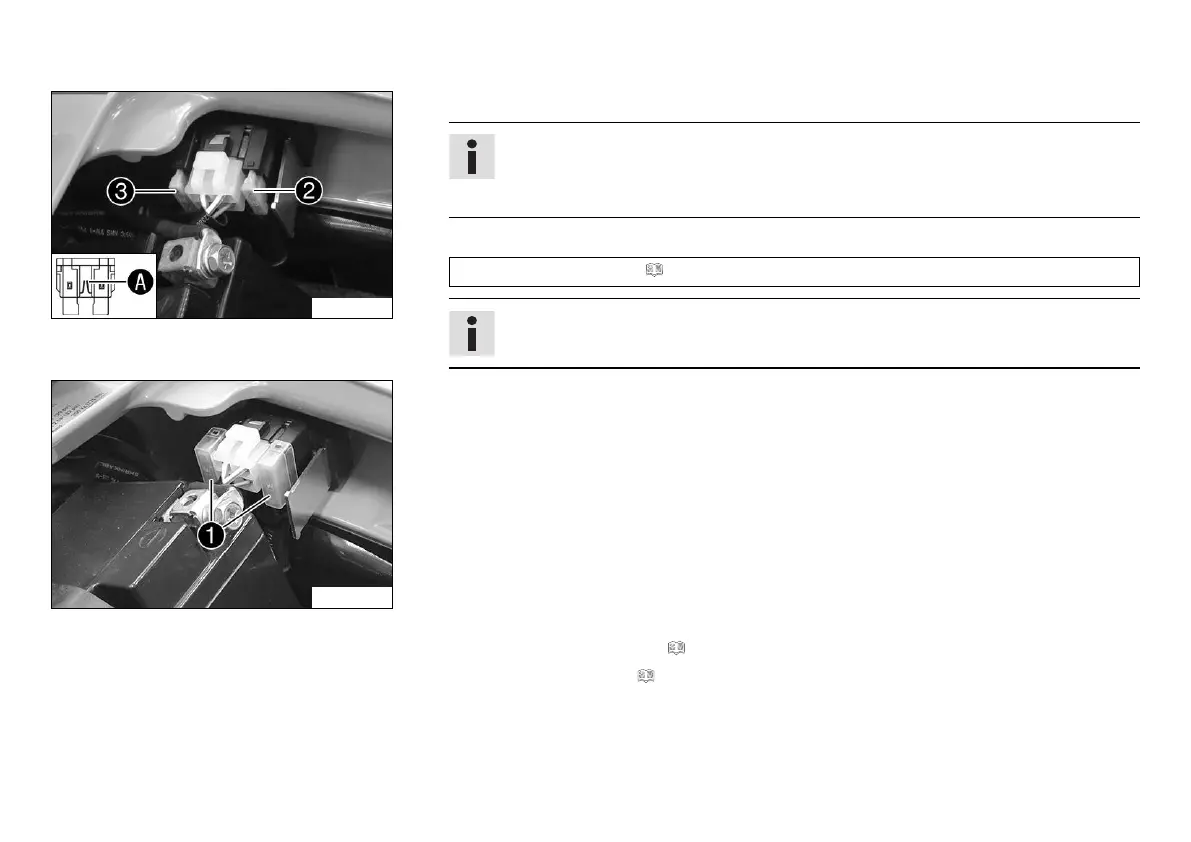

Remove the faulty main fuse
2
.
Info
A defective fuse is indicated by a burned-out fuse wire
A
.
A spare fuse
3
is located in the starter relay.
– Install a new main fuse.
Fuse (58011109130) ( p. 186)
Tip
Insert a new spare fuse into the starter relay to have it available when needed.
V00581-10
–
Mount protection caps
1
.
Finishing work
– Mount the passenger seat. ( p. 86)
– Set the time and date. ( p. 49)

KTM 690 Duke 2017 Specifications

General

Displacement	690 cc
Compression Ratio	12.7:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Lubrication	Forced oil lubrication with 2 oil pumps
Front Suspension	WP upside-down Ø 43 mm
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	835 mm
Ground Clearance	192 mm
Wheelbase	1, 466 mm
Fuel Capacity	14 liters
Dry Weight	148.5 kg
Engine Type	Single-cylinder, 4-stroke
Torque	74 Nm @ 6, 500 rpm
Frame	Chromium-Molybdenum steel trellis frame
Rear Suspension	WP monoshock
Front Brake	Brembo four-piston radial fixed caliper, 320 mm disc
Rear Brake	Single 240 mm disc, Brembo single-piston caliper
ABS	Bosch 9M+ two-channel ABS (disengageable)
