16 COOLING SYSTEM 153
Preparatory work
– Park the motorcycle on a horizontal surface.
V00068-11
Main work
–

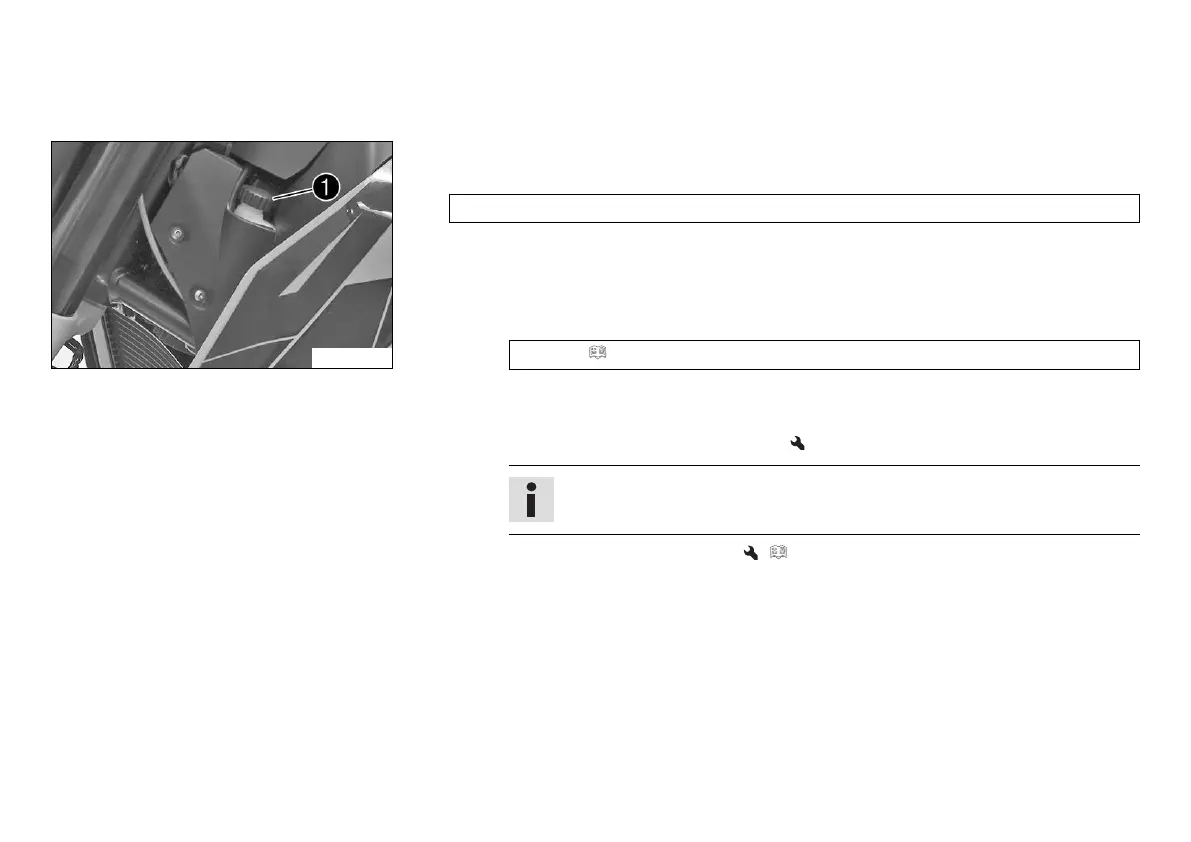

Check the coolant level in compensating tank
1
.
The coolant level must be at the MIN marking.
» If the coolant in the compensating tank is not at the required level, but the tank is
not empty:
– Remove the cap of the compensating tank.
– Add coolant to the MIN marking.
Coolant ( p. 194)
– Mount the cap of the compensating tank.
» If there is no coolant in the compensating tank:
– Check the cooling system for leaks.
Info
Do not start up the motorcycle!
– Fill/bleed the cooling system. ( p. 155)

KTM 690 Duke 2017 Specifications

General

Displacement	690 cc
Compression Ratio	12.7:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Lubrication	Forced oil lubrication with 2 oil pumps
Front Suspension	WP upside-down Ø 43 mm
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	835 mm
Ground Clearance	192 mm
Wheelbase	1, 466 mm
Fuel Capacity	14 liters
Dry Weight	148.5 kg
Engine Type	Single-cylinder, 4-stroke
Torque	74 Nm @ 6, 500 rpm
Frame	Chromium-Molybdenum steel trellis frame
Rear Suspension	WP monoshock
Front Brake	Brembo four-piston radial fixed caliper, 320 mm disc
Rear Brake	Single 240 mm disc, Brembo single-piston caliper
ABS	Bosch 9M+ two-channel ABS (disengageable)
