KTM 690 Duke 2017 User Manual

12 SERVICE WORK ON THE CHASSIS 92
K00435-11

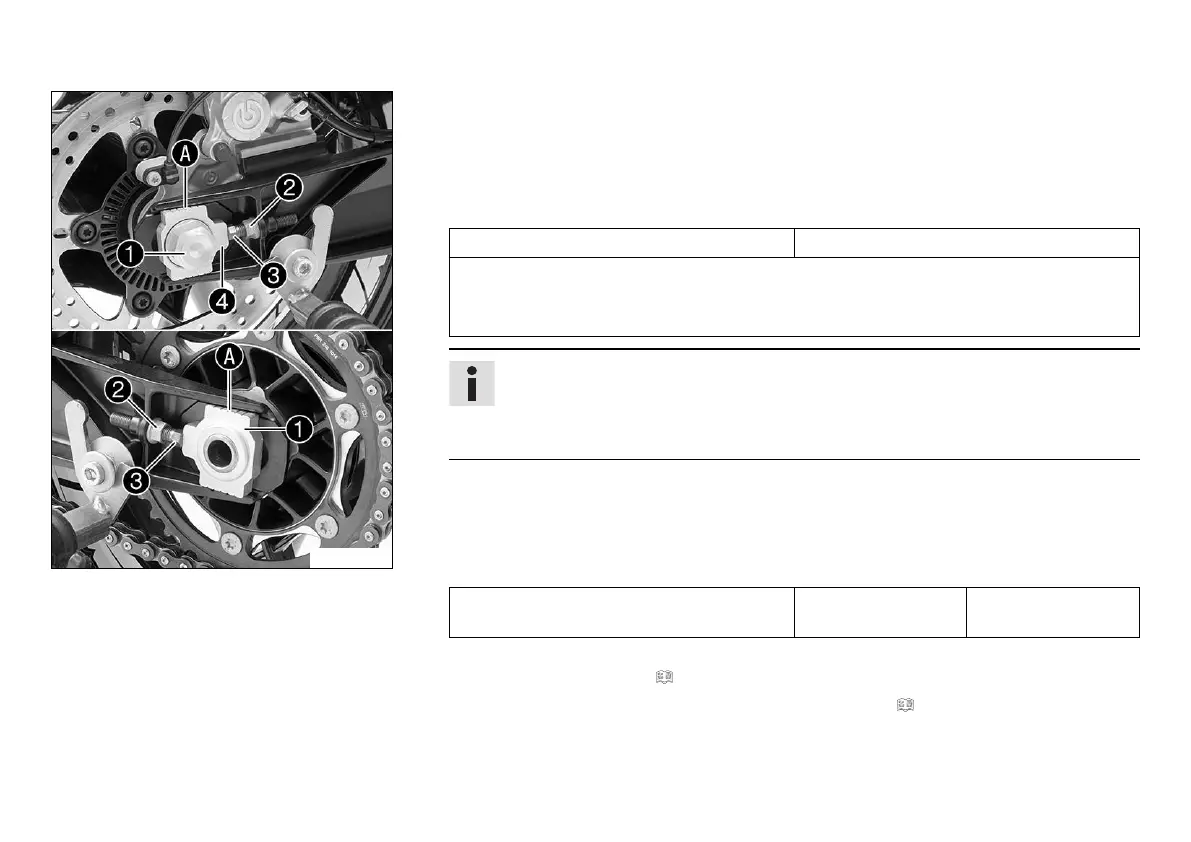

Main work
–
Loosen nut
1
.
–
Loosen nuts
2
.
–
Adjust the chain tension by turning adjusting screws
3
left and right.
Guideline
Chain tension 5 mm (0.2 in)
Turn the adjusting screws
3
on the left and right so that the markings on the
left and right chain adjusters
4
are in the same position relative to the reference
marks
A
. The rear wheel is then correctly aligned.
Info
The upper part of the chain must be taut.
Chain wear is not always even. Repeat this measurement at different chain posi-
tions.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on adjusting screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel spindle M25x1.5 90 Nm
(66.4 lbf ft)
Finishing work
– Check the chain tension. ( p. 89)
– Remove the rear of the motorcycle from the lifting gear. ( p. 83)

KTM 690 Duke 2017 Specifications

General

Displacement	690 cc
Compression Ratio	12.7:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Lubrication	Forced oil lubrication with 2 oil pumps
Front Suspension	WP upside-down Ø 43 mm
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	835 mm
Ground Clearance	192 mm
Wheelbase	1, 466 mm
Fuel Capacity	14 liters
Dry Weight	148.5 kg
Engine Type	Single-cylinder, 4-stroke
Torque	74 Nm @ 6, 500 rpm
Frame	Chromium-Molybdenum steel trellis frame
Rear Suspension	WP monoshock
Front Brake	Brembo four-piston radial fixed caliper, 320 mm disc
Rear Brake	Single 240 mm disc, Brembo single-piston caliper
ABS	Bosch 9M+ two-channel ABS (disengageable)
