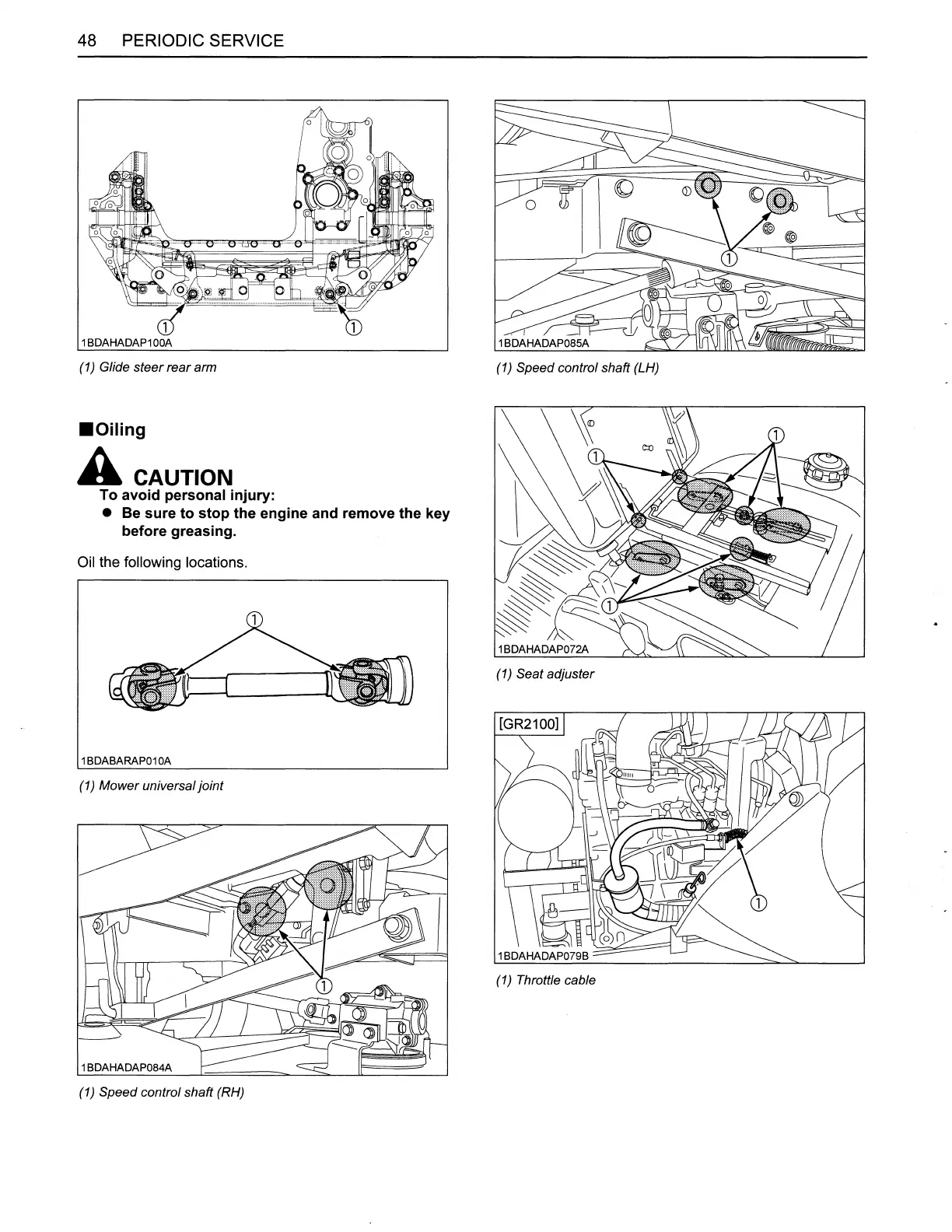

48 PERIODIC SERVICE
1
BDAHADAP1
OOA
(1)
Glide steer rear arm
.Oiling
A CAUTION
To avoid personal injury:
• Be sure to stop the engine and remove the key
before greasing.
Oil the following locations.
1 BDABARAP01
OA
(1) Mower universal jOint
1 BDAHADAP084A
(1)
Speed control shaft (RH)
(1)
Speed control shaft (LH)
(1)
Seat adjuster
(1)
Throttle cable
