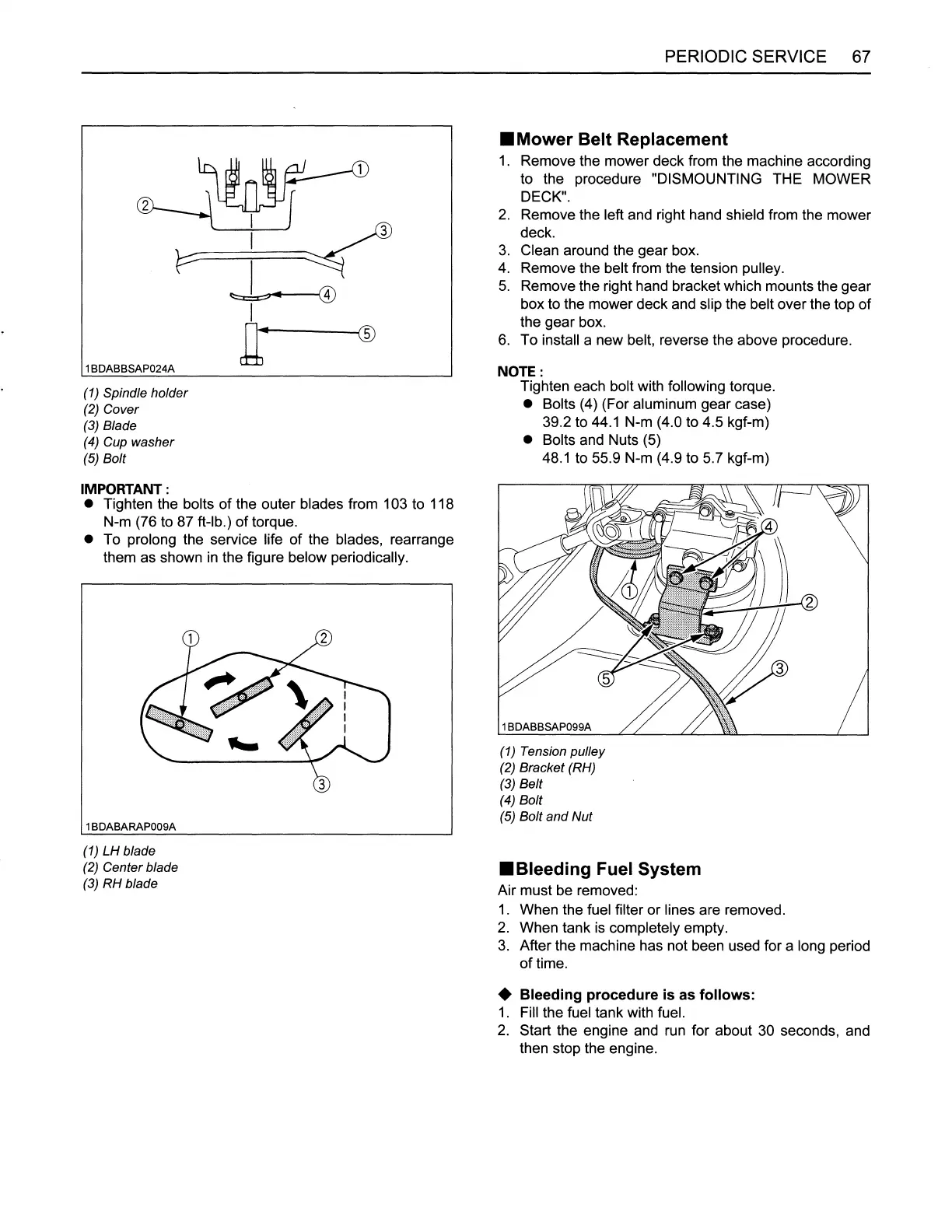

P I
~
1 BDABBSAP024A
(1)
Spindle holder
(2)
Cover
(3) Blade
(4)
Cup washer
(5) Bolt
IMPORTANT:
~~
@
I
[----®
• Tighten the bolts
of
the outer blades from 103 to 118
N-m (76 to
87
ft-Ib.) of torque.
• To prolong the service life of the blades, rearrange
them
as
shown
in
the figure below periodically.
1 BDABARAP009A
(1)
LH
blade
(2)
Center blade
(3)
RH
blade
PERIODIC SERVICE
67
• Mower Belt Replacement
1.
Remove the mower deck from the machine according
to the procedure
"DISMOUNTING THE MOWER
DECK".
2.
Remove the left and right hand shield from the mower
deck.
3.
Clean around the gear box.
4.
Remove the belt from the tension pulley.
5.
Remove the right hand bracket which mounts the gear
box to the mower deck and
slip the belt over the top
of
the gear box.
6.
To install a new belt, reverse the above procedure.
NOTE:
Tighten each bolt with following torque.
• Bolts (4) (For aluminum gear case)
39.2 to
44.1
N-m (4.0 to 4.5 kgf-m)
• Bolts and Nuts (5)
48.1
to 55.9 N-m (4.9 to 5.7 kgf-m)
1 BDABBSAP099A
(1)
Tension pulley
(2)
Bracket (RH)
(3) Belt
(4)
Bolt
(5) Bolt
and
Nut
.Bleeding
Fuel System
Air must be removed:
1.
When the fuel filter or lines are removed.
2.
When tank
is
completely empty.
3.
After the machine has not been used for a long period
of
time .
• Bleeding procedure is as follows:
1.
Fill the fuel tank with fuel.
2.
Start the engine and
run
for about
30
seconds, and
then stop the engine.
