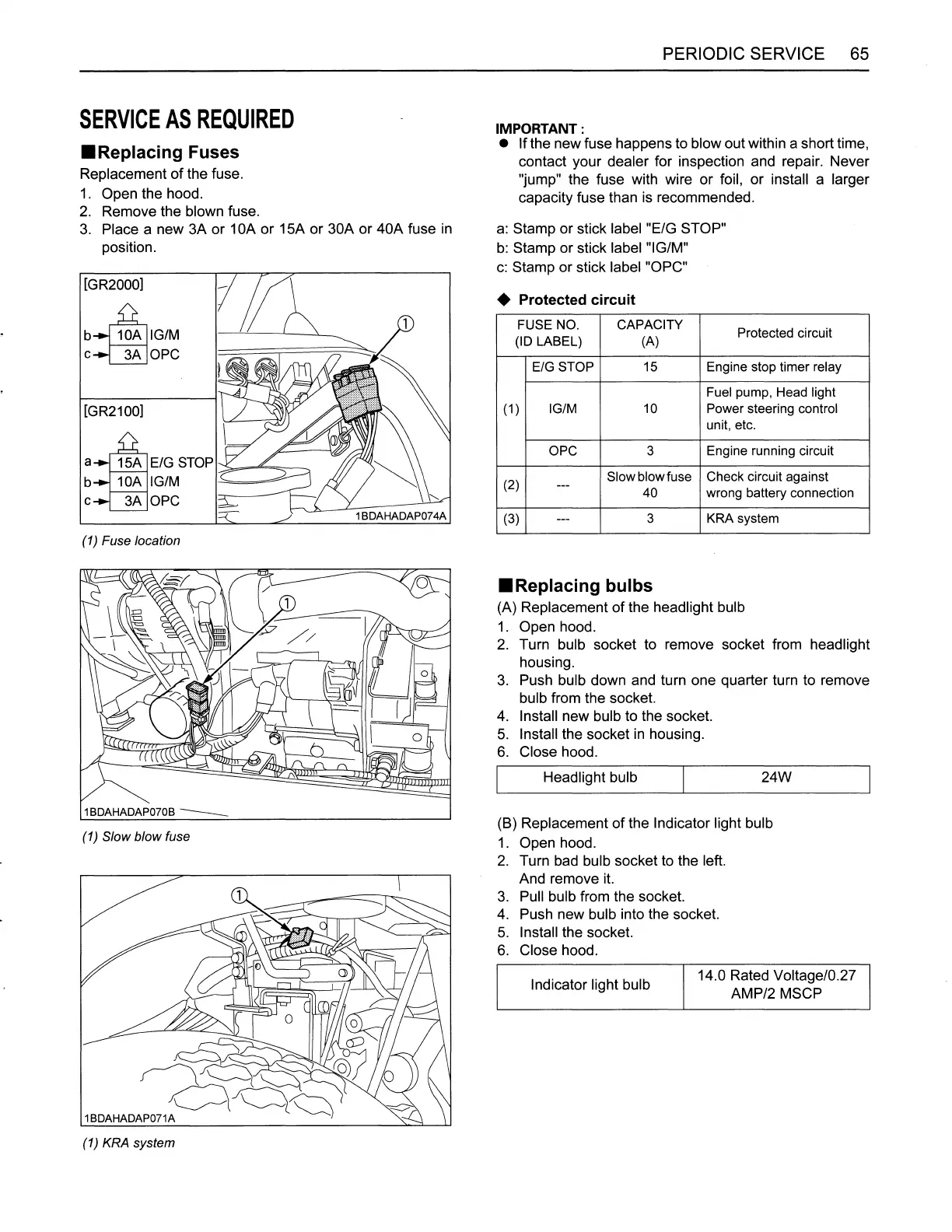

SERVICE
AS
REQUIRED
• Replacing Fuses
Replacement of the fuse.
1.
Open the hood.
2.
Remove the blown fuse.
3.
Place a new 3A or 10A or 15A or 30A or 40A fuse
in
position.
[GR2000]
b -
~IG/M
c:t:@oPC
[GR21
00]
a~5A
E/G
STOP
~=""=~......,
b 10A
IG/M
c
3A
OPC
~~-2~~~~~
(1)
Fuse location
(1) Slow blow fuse
(1) KRA system
PERIODIC SERVICE 65
IMPORTANT:
• If
the new fuse happens to blowout within a short time,
contact your
dealer for inspection and repair. Never
"jump" the fuse with wire or foil, or install a larger
capacity fuse than
is
recommended.
a:
Stamp or stick label "E/G STOP"
b:
Stamp or stick label "IG/M"
c:
Stamp or stick label "OPC"
• Protected
circuit
FUSE NO.
CAPACITY
Protected circuit
(ID LABEL) (A)
E/G
STOP 15
Engine stop timer
relay
Fuel
pump, Head light
(1
) IG/M
10
Power steering control
unit, etc.
OPC 3
Engine running circuit
(2)
Slow blow fuse Check circuit against
---
40 wrong battery connection
(3)
---
3 KRA system
• Replacing bulbs
(A) Replacement of the headlight bulb
1.
Open hood.
2.
Turn bulb socket to remove socket from headlight
housing.
3.
Push bulb down and turn one quarter turn to remove
bulb from the socket.
4.
Install new bulb to the socket.
5.
Install the socket
in
housing.
6.
Close hood.
Headlight bulb 24W
(8)
Replacement
of
the Indicator light bulb
1.
Open hood.
2.
Turn
bad
bulb socket to the left.
And remove
it.
3.
Pull bulb from the socket.
4.
Push new bulb into the socket.
5.
Install the socket.
6.
Close hood.
Indicator light bulb
14.0
Rated Voltage/0.27
AMP/2 MSCP
