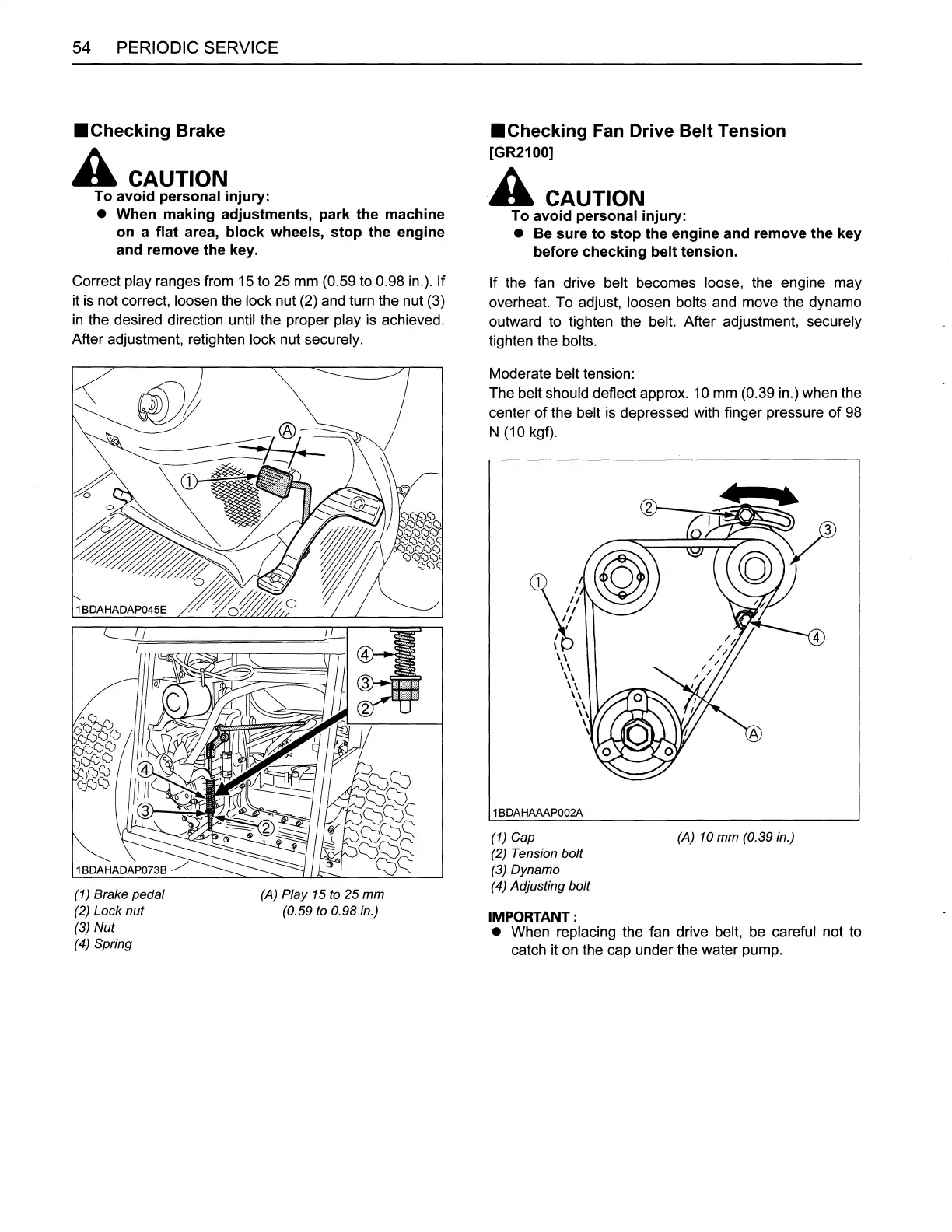

54
PERIODIC SERVICE
.Checking
Brake
A
CAUTION
To avoid personal
injury:
• When making adjustments,
park
the machine
on
a
flat
area,
block
wheels,
stop
the engine
and remove the key.
Correct
play ranges from 15 to 25
mm
(0.59 to 0.98 in.). If
it
is
not correct, loosen the lock nut (2) and turn the nut (3)
in
the desired direction until the proper play
is
achieved.
After adjustment, retighten
lock nut securely.
(1) Brake pedal
(2) Lock
nut
(3)
Nut
(4) Spring
(A) Play
15 to
25
mm
(0.59 to 0.98 in.)
.Checking
Fan Drive Belt Tension
[GR21 00]
A
CAUTION
To avoid personal
injury:
• Be
sure
to
stop
the engine and remove the key
before
checking
belt
tension.
If the fan drive belt becomes loose, the engine may
overheat. To adjust,
loosen bolts and move the dynamo
outward to tighten the
belt. After adjustment, securely
tighten the bolts.
Moderate belt tension:
The
belt should deflect approx.
10
mm
(0.39 in.) when the
center
of
the belt
is
depressed with finger pressure of
98
N (10 kgf).
~
/
II
II
II
,
I
\
\\
\\
\\
\\
\\
\\
\\
\
\
1
BDAHAAAPOO2A
(1)
Cap
(2) Tension bolt
(3) Dynamo
(4) Adjusting
bolt
IMPORTANT:
(A) 10
mm
(0.39 in.)
• When replacing the fan drive belt, be careful not to
catch it on the cap under the water pump.
