29OPERATING THE TRACTOR
BAdjustment of Foldable ROPS
A Adjust free fall of the ROPS upper frame regularly.
A If you feel less friction in folding the ROPS, remove the
cotter pin (1), tighten the nut (2) until you feel the right
friction in the movement and then replace the cotter
pin.
STARTING
BOperator's Seat
To avoid personal injury:
A Make adjustments to the seat only while the
tractor is stopped.
A Make sure that the seat is completely secured
after each adjustment.
A Do not allow any person other than the
operator to ride on the tractor.
C Travel adjustment
Pull the travel adjust lever and slide the seat backward or
forward, as required. The seat will lock in position when
the lever is released.
A The operator's seat base has a slope. When lifting the
lever, be careful not to allow the seat to slide down
forward.
C Suspension adjustment knob
Turn the suspension adjust knob to achieve the optimum
suspension setting.
C Tilt adjustment
Pull the backrest tilt adjust lever and move the backrest to
the desired angle.
A After adjusting the operator's seat, be sure to check to
see that the seat is properly locked.

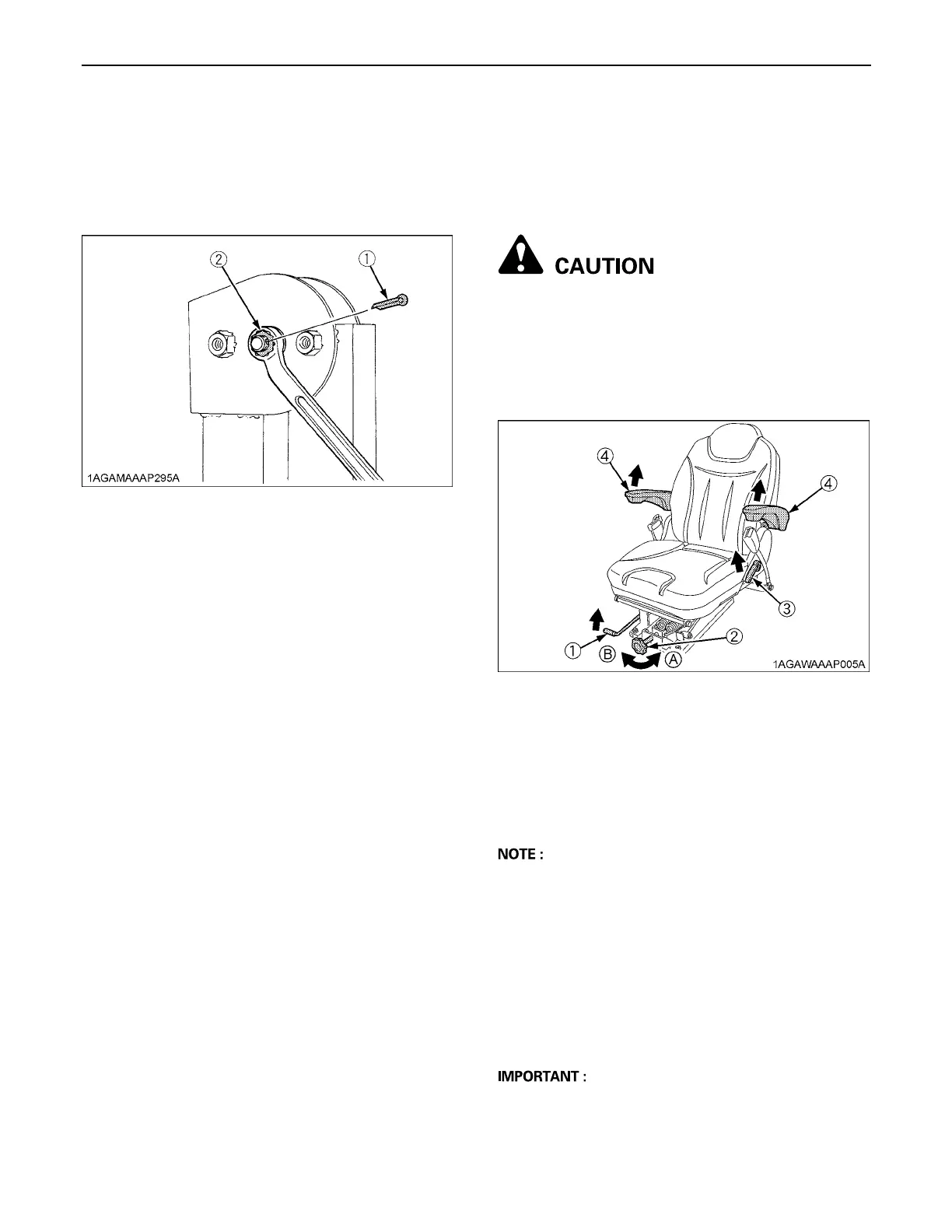

(1) Cotter pin
(2) Nut
1. Adjusting the operator's position.
(1) Travel adjust lever
(2) Suspension adjust knob
(3) Backrest tilt adjust lever
(4) Arm rest
(A) To decrease tension
(B) To increase tension
To Next Page
