63THREE-POINT HITCH & DRAWBAR
BLifting Rod (Right)
To avoid personal injury:
A Do not extend lifting rod beyond the groove on
the thread rod.
1. To adjust the length of the lifting rod, lift the adjusting
handle and turn to desired length.
2. After adjusting, lower the lifting rod adjusting handle to
the lock position.
3. When extending the rod using adjusting handle, do not
exceed the groove on the rod thread.
BTop Link
1. Adjust the angle of the implement to the desired
position by shortening or lengthening the top link.
2. The proper length of the top link varies according to
the type of implement being used.
BTelescopic Stabilizers
Adjust the telescopic stabilizers to control horizontal sway
of the implement. Select the proper set of holes by
referring to the "Hydraulic Control Unit Use Reference
Chart" in "REMOTE HYDRAULIC CONTROL SYSTEM"
in "HYDRAULIC UNIT" section.
After aligning satisfactorily, insert the set-pin through any
one of the four holes on the outer tube that align with one
of the holes on the inner bar, both stabilizers will be
locked.
If the set-pin is inserted through the slot to engage one of
the holes on the inner bar, a limited degree of sway will be
permitted.
BTelescopic Lower Links
To attach an implement, follow the instructions below:
1. Push the levers, pull out the lower link ends, and
attach to the implement.
2. Back up the tractor slightly to make sure the lower links
are pushed in securely.

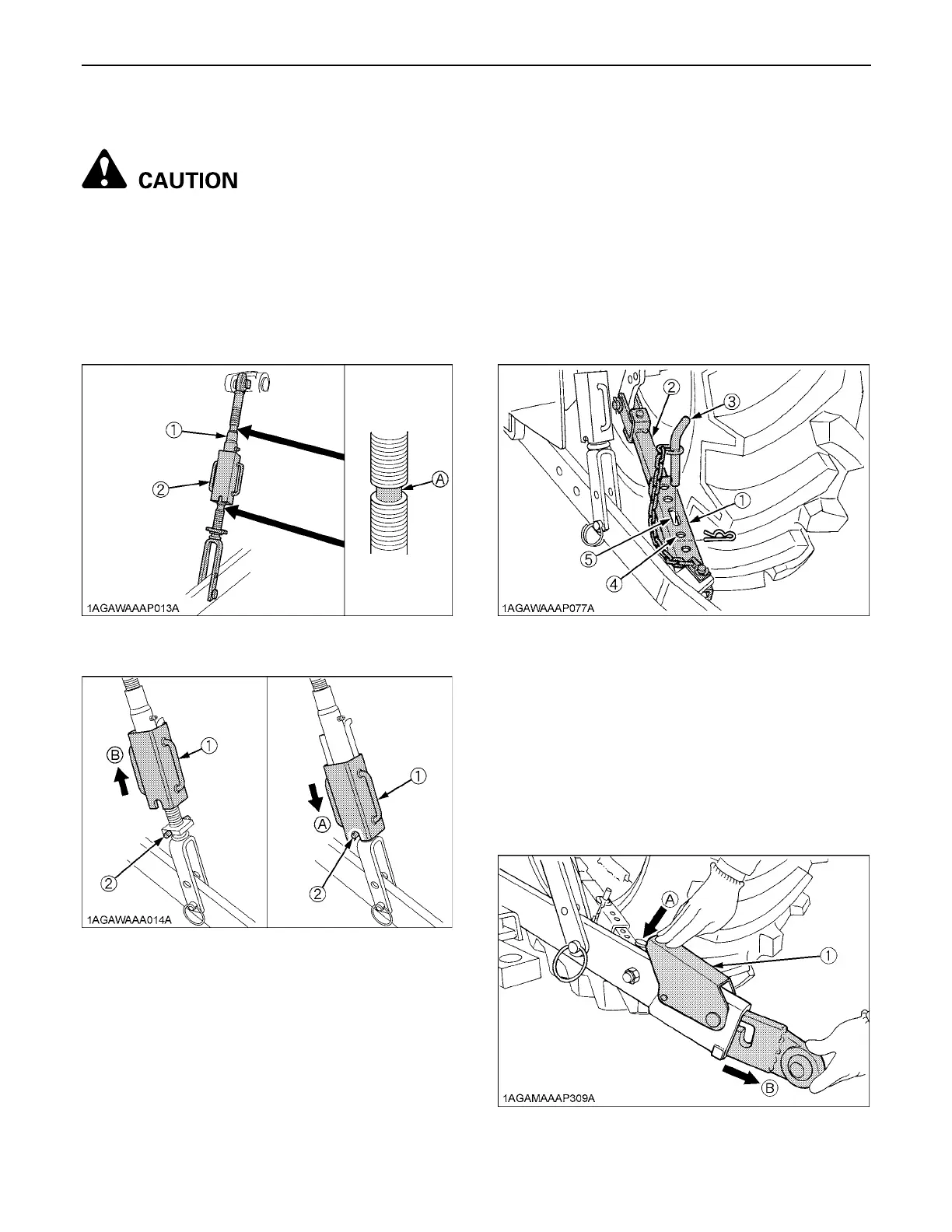

(1) Lifting rod
(2) Adjusting handle
(A) "GROOVE"
(1) Adjusting handle
(2) Lock pin
(A) "LOCK POSITION"
(B) "UNLOCK POSITION"
(1) Outer tube
(2) Inner bar
(3) Set-pin
(4) Hole
(5) Slot
(1) Lever (A) "PUSH"
(B) "PULL OUT"
