THREE-POINT HITCH & DRAWBAR64

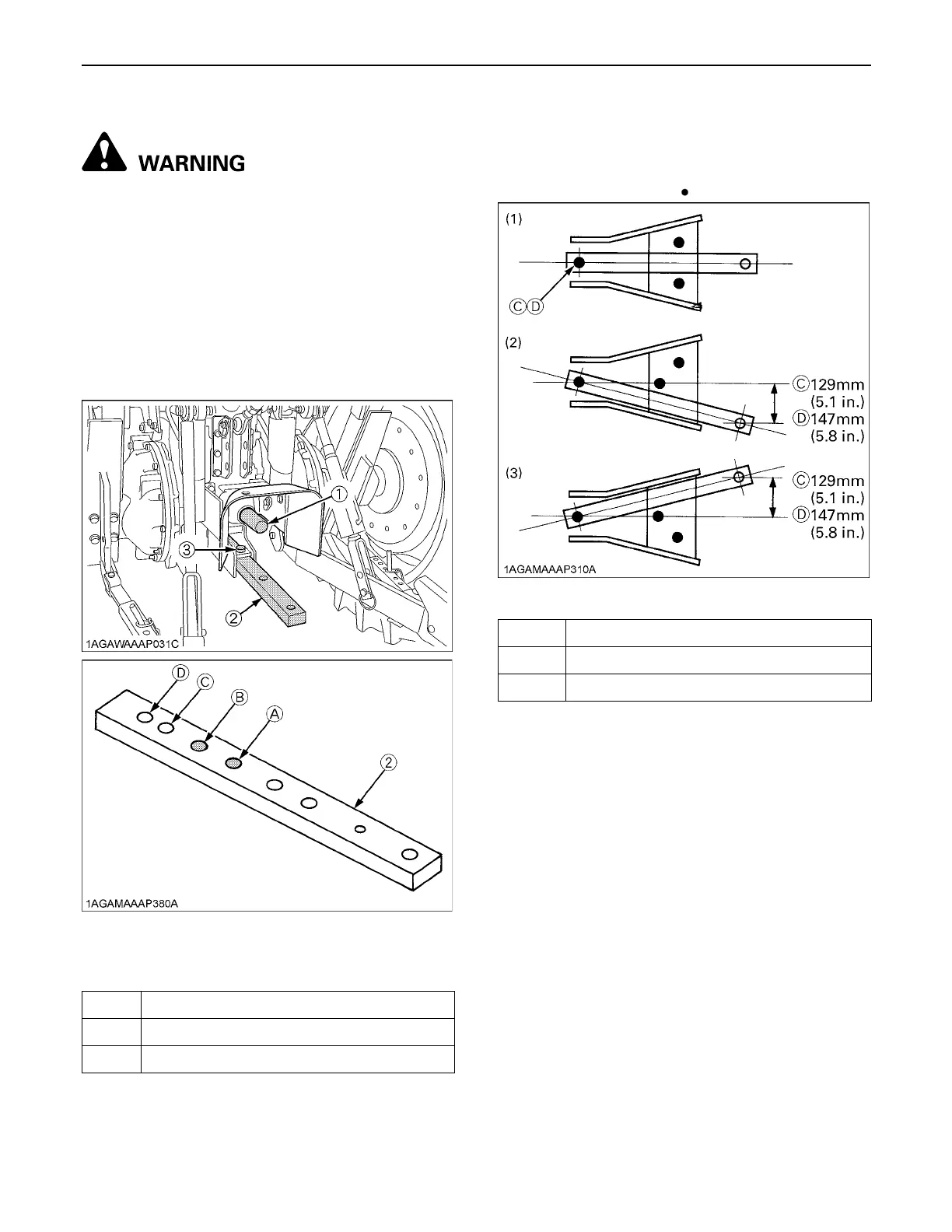

DRAWBAR
To avoid personal injury:
A Never pull from the top link, the rear axle or any
point above the drawbar. Doing so could cause
the tractor to tip over rearward causing
personal injury or death.
BAdjusting Drawbar Length
When towing an implement, recommend use of (A) or (B)
hole in drawbar.
The drawbar load is referred to "IMPLEMENT
LIMITATIONS" section.
BSwing Drawbar
The drawbar can be used in three different ways as
illustrated below. Assemble it correctly with joint pins set
at the points as marked by in the figure.
(1) PTO shaft
(2) Drawbar
(3) Drawbar pin
Holes : (A),(B)
Hole Tractor model
(A) L3240, L3540
(B) L3940, L4240, L4740, L5040, L5240, L5740
Holes : (C),(D)
Hole Tractor model
(C) L3240, L3540
(D) L3940, L4240, L4740, L5040, L5240, L5740
