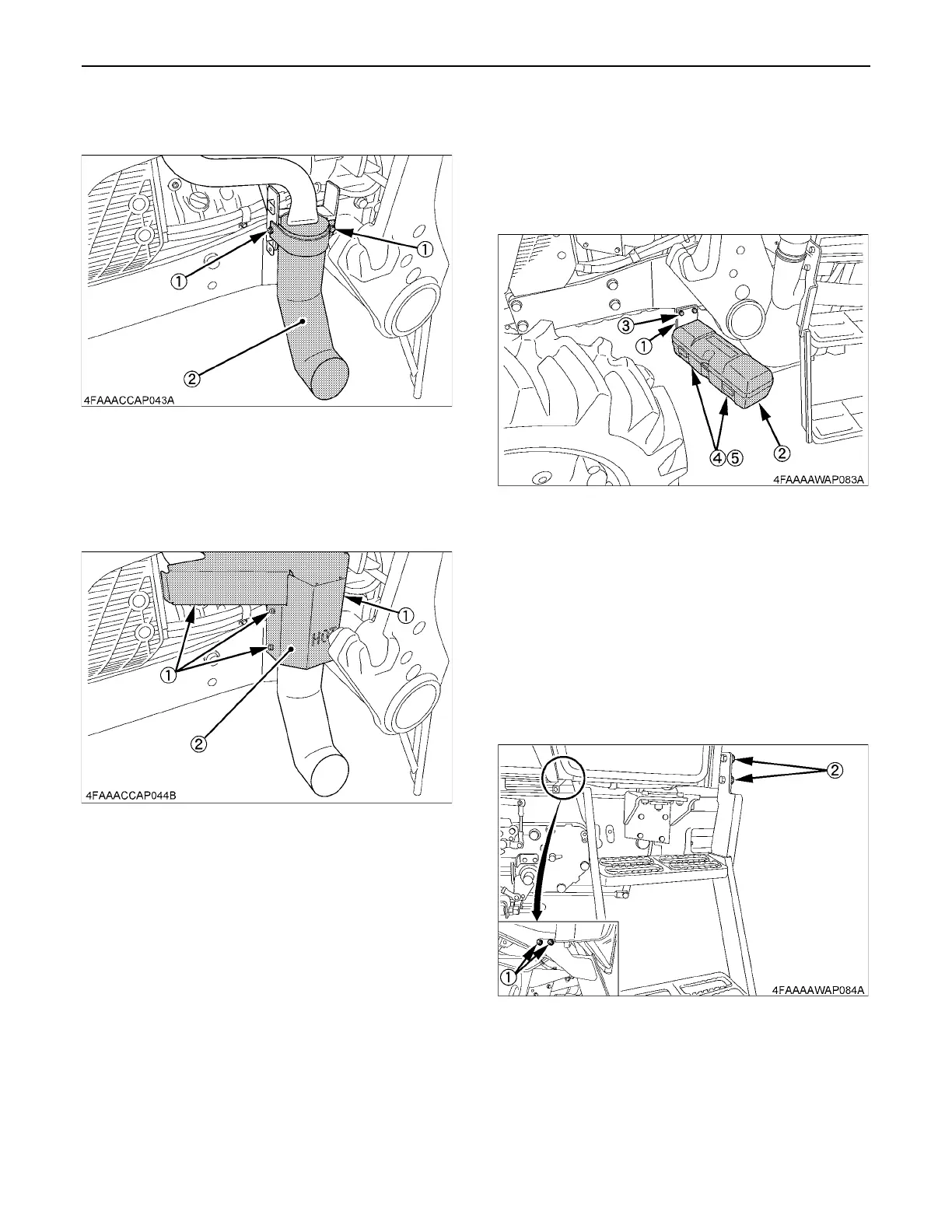

ASSEMBLY INSTRUCTIONS8
4. Reinstall the muffler pipe with the original bolts. (Left
side)
5. Reinstall the muffler cover with the original bolts. (Left
side)
BTool Box (CAB MODEL)
1. Attach the tool box stay to the main frame LH using
bolts.
2. Attach the tool box to the stay using the original bolts
and M8 nuts.
BStep
1. Before assembling the standard valve, remove the
step.
(1) 2-M8 x 16 bolts (Original)
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(2) Muffler pipe
(1) 4-M8 x 12 bolts (Original)
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(2) Muffler pipe
(1) Tool box stay
(2) Tool box
(3) 2-M10 x 20 bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(4) 2-M8 nuts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(1) 2-M10 bolts
(2) 2-M10 nuts

Kubota LA1154 Specifications

General

Lift Capacity at Pivot Pin	1150 kg
Bucket Width	72 in
Overall Width	72 in
Hydraulic Flow Rate	45 L/min (11.9 gpm)
Lift Capacity at 500mm Forward	850 kg (1874 lbs)
Max Lift Height	3.05 m (120 in)
Breakout Force at 500mm Forward	2100 kg (4630 lbs)
Weight	680 kg (1500 lbs)
