13ASSEMBLY INSTRUCTIONS

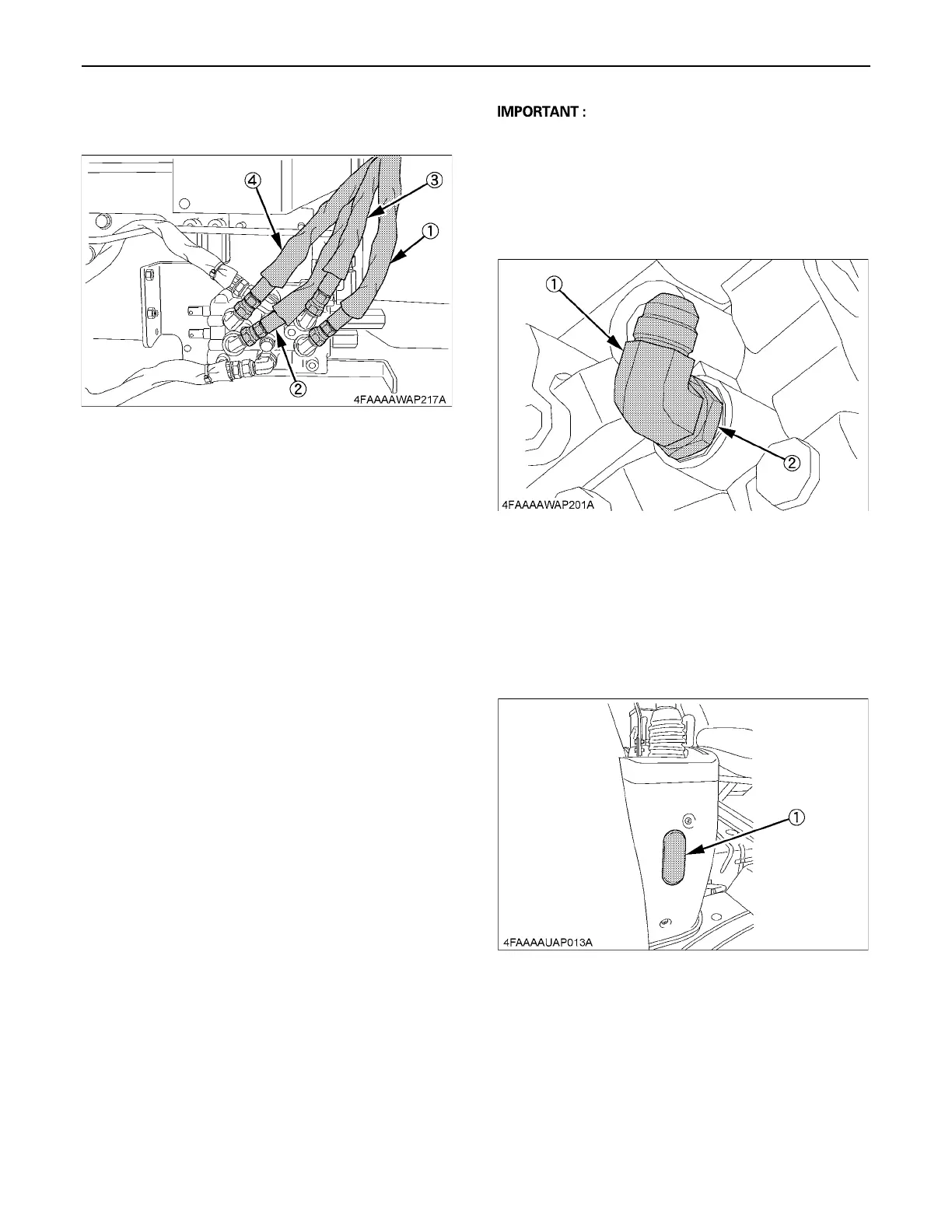

8. Connect the hoses between the connector assembly
stay and the valve.
A With all the hoses connected to the valve, be certain
that any of the hoses is out of close contact with the
other hoses, the fittings and edges.
A If the above problem is found, correct the hoses to
remove their twist of loosen the nut shown in the figure
to readjust the fitting angle for avoiding such close
contact.
BController and Cables
C M7995 (ROPS MODEL), M7996 (CAB MODEL)
1. Remove the cover cap of the tractor.
[M7995 (ROPS MODEL), M7996 (CAB MODEL)]
(1) Hydraulic hose (Red 500 mm (19.7 in.), 3/4-UNF)
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS AND OTHERS" section.
(2) Hydraulic hose (Blue 597 mm (23.5 in.), 3/4-UNF)
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS AND OTHERS" section.
(3) Hydraulic hose (Yellow 465 mm (18.3 in.), 3/4-UNF)
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS AND OTHERS" section.
(4) Hydraulic hose (White 559 mm (22.0 in.), 3/4-UNF)
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS AND OTHERS" section.
[LA1154SU]
(1) Hydraulic hose (Red 500 mm (19.7 in.), 3/4-UNF)
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS AND OTHERS" section.
(2) Hydraulic hose (Blue 560 mm (22.0 in.), 3/4-UNF)
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS AND OTHERS" section.
(3) Hydraulic hose (Yellow 465 mm (18.3 in.), 3/4-UNF)
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS AND OTHERS" section.
(4) Hydraulic hose (White 510 mm (20.1 in.), 3/4-UNF)
(1) Fitting
(2) Nut
Tightening torque: 48.0 to 54.0 N-m
(4.9 to 5.5 kgf-m, 35.0 to 40.0 ft-lbs)
(1) Cover cap

Kubota LA1154 Specifications

General

Lift Capacity at Pivot Pin	1150 kg
Bucket Width	72 in
Overall Width	72 in
Hydraulic Flow Rate	45 L/min (11.9 gpm)
Lift Capacity at 500mm Forward	850 kg (1874 lbs)
Max Lift Height	3.05 m (120 in)
Breakout Force at 500mm Forward	2100 kg (4630 lbs)
Weight	680 kg (1500 lbs)
