23ASSEMBLY INSTRUCTIONS
8. Attach the label on the back of the side frame (RH).
BController and Cables for Self Level Valve
C M7998 (ROPS MODEL), M7999 (CAB MODEL)

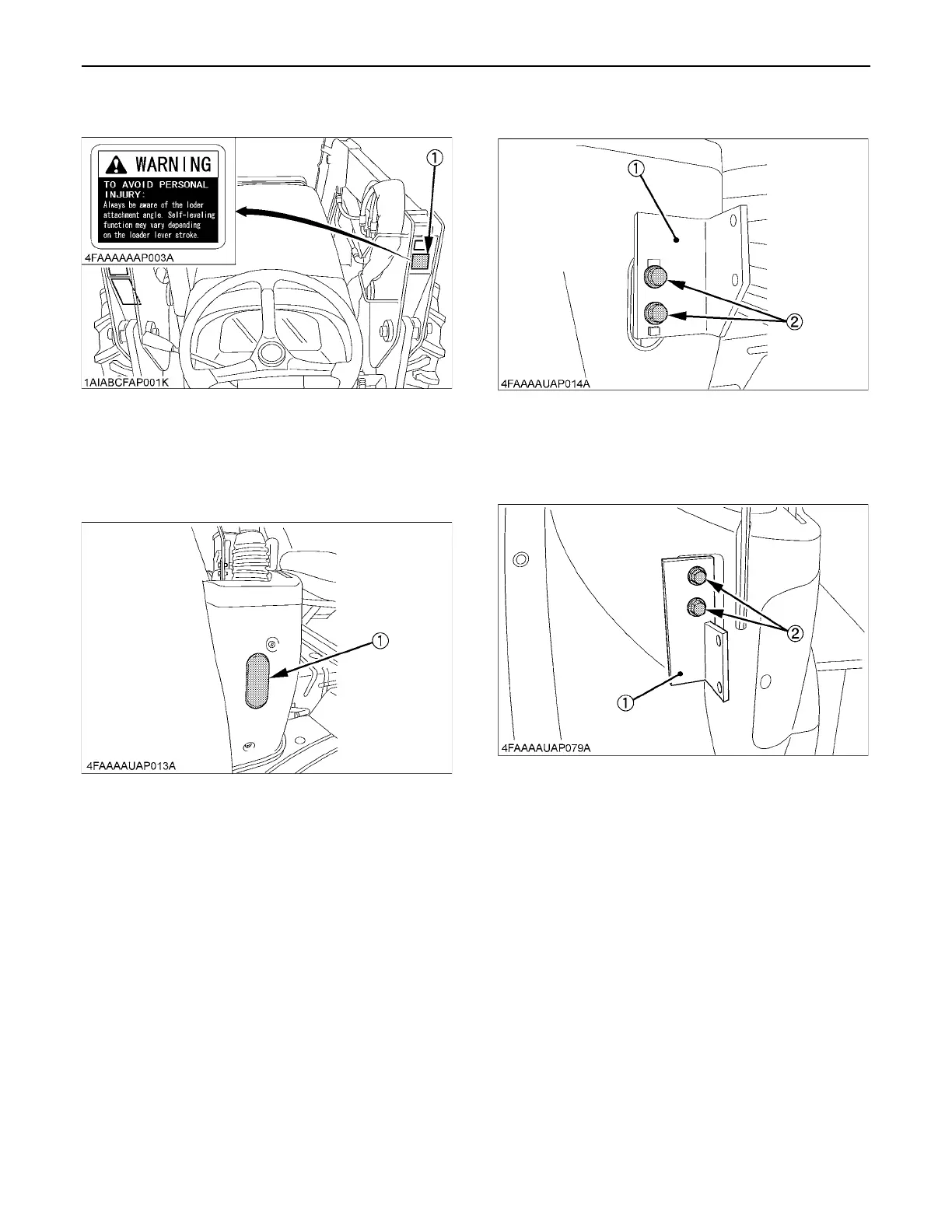

1. Remove the cover cap of the tractor.
2. Fit the controller stay 2 in position.
[M7998 (ROPS MODEL)]
[M7999 (CAB MODEL)]
(1) Label (7J437-7778-1)
(1) Cover cap
(1) Controller stay 2
(2) 2-M10 x 40 bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(1) Controller stay 2
(2) 2-M10 x 70 bolts
2-M10 spring lock washer
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
