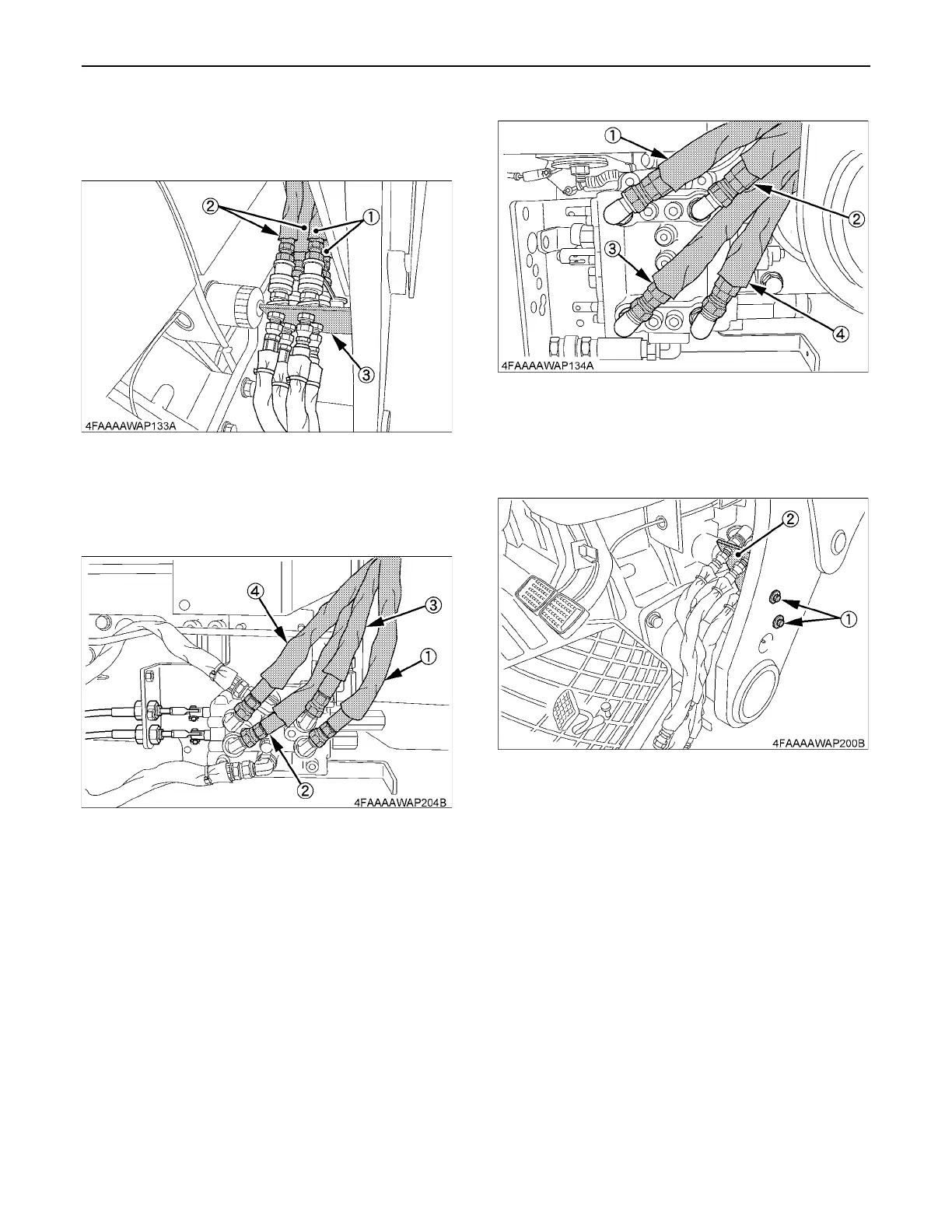

33ASSEMBLY INSTRUCTIONS
BMulti Coupler (if equipped)
1. Detach the loader.
2. Disconnect the hoses from the valves and coupler
stay.
[Standard valve]
[Self-level valve (if equipped)]
3. Remove the connector stay assembly.
(1) Hose 1
(2) Hose 2
(3) Coupler stay
(1) Hydraulic hose (Red 500 mm (19.7 in.))
(2) Hydraulic hose (Blue 597 mm (23.5 in.))
(3) Hydraulic hose (Yellow 465 mm (18.3 in.))
(4) Hydraulic hose (White 559 mm (22.0 in.))
(1) Hydraulic hose (Red 500 mm (19.7 in.))
(2) Hydraulic hose (Blue 432 mm (17.0 in.))
(3) Hydraulic hose (Yellow 520 mm (20.4 in.))
(4) Hydraulic hose (White 485 mm (19.1 in.))
(1) 2-M10 x 60 bolts
2-M10 nuts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
2-M10 plain washers
2-M10 spring lock washers
(2) Connector assy stay

Kubota LA1154 Specifications

General

Lift Capacity at Pivot Pin	1150 kg
Bucket Width	72 in
Overall Width	72 in
Hydraulic Flow Rate	45 L/min (11.9 gpm)
Lift Capacity at 500mm Forward	850 kg (1874 lbs)
Max Lift Height	3.05 m (120 in)
Breakout Force at 500mm Forward	2100 kg (4630 lbs)
Weight	680 kg (1500 lbs)
