ASSEMBLY INSTRUCTIONS44
BController and Wire Harness for 3rd
Function
C M7991 (ROPS MODEL), M7992 (CAB MODEL)

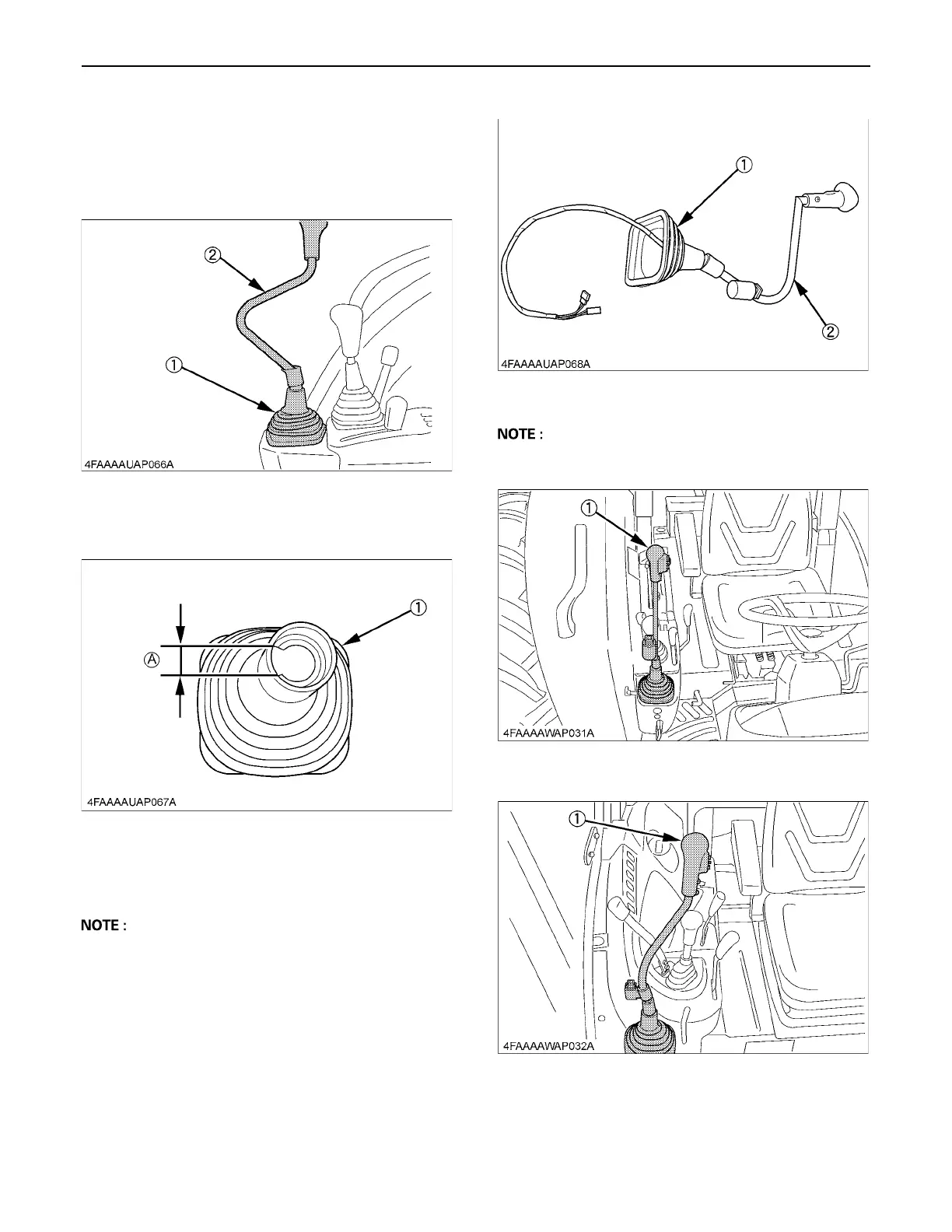

1. Remove the lever boot first and then the lever.
2. Cut the lever boot as shown below.
3. Pass the lever boot through the 3rd function control
lever, and attach the 3rd function control lever to the
tracator.
A Pass the harness through the cut opening of the boot.
A Install the lever upright in position.
[M7991 (ROPS MODEL)]
[M7992 (CAB MODEL)]
(1) Lever boot
(2) Control lever
(1) Lever boot (A) 15 mm (0.6 in.)
(1) Lever boot
(2) 3rd function control lever
(1) 3rd function control lever
(1) 3rd function control lever
