ASSEMBLY INSTRUCTIONS52
PRE-OPERATION CHECK

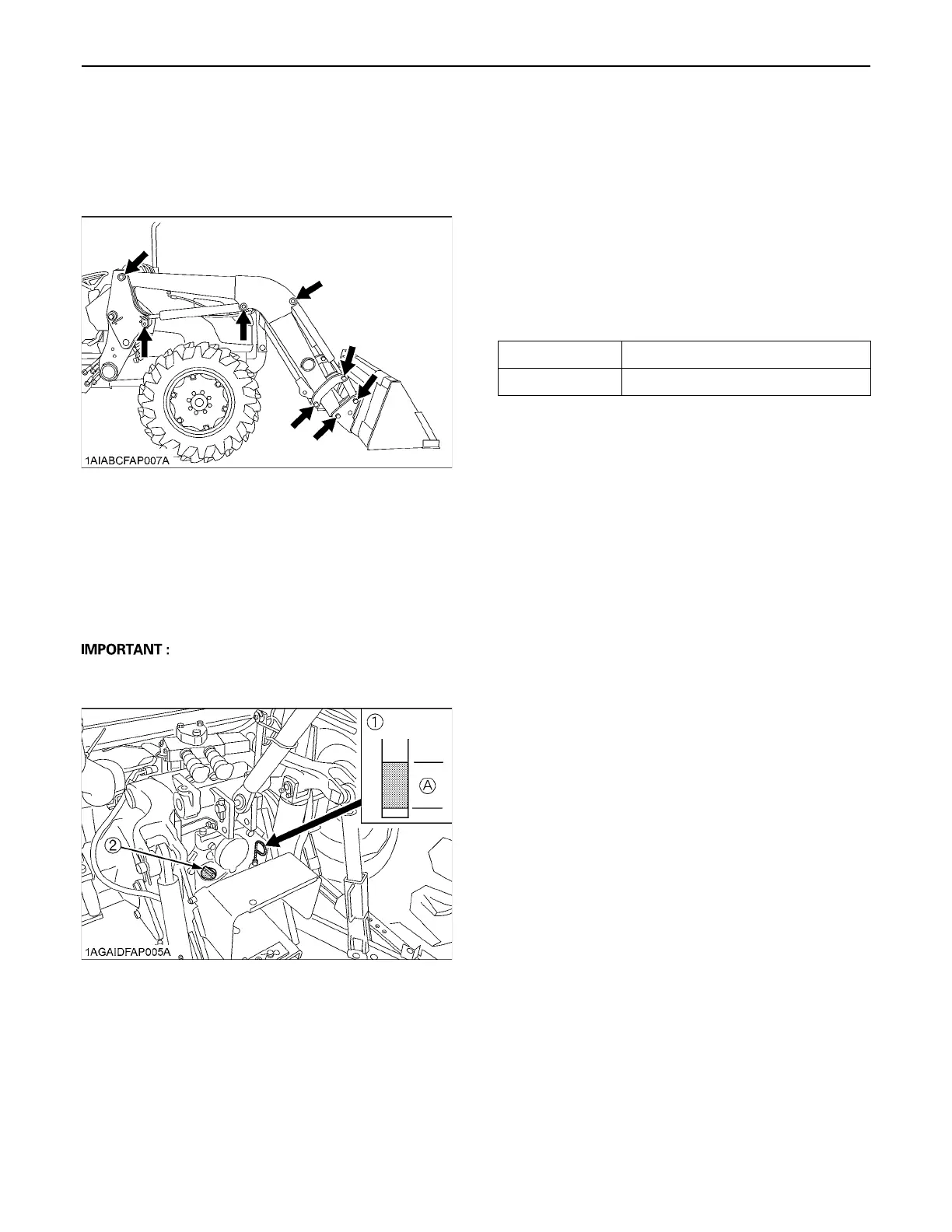

BLubrication
Lubricate all grease fittings with SAE multipurpose
grease.
BTransmission Fluid
Check the tractor transmission fluid level. Add fluid if
necessary. Refer to the tractor operator's manual for
instructions and proper fluid. Repeat this check after
purging air from the system. At that time, it will be
necessary to add transmission fluid.
A To check the tractor transmission fluid level, lower the
bucket to the ground and lower the 3-point hitch.
ESTIMATED ASSEMBLY TIME
Refer to the following table for the estimated assembly
time from opening the crate to finishing assembling the
loader.
Assembly time on the table are just reference under
average conditions with the following assumptions.
(1) When assembly is performed by two workers.
(2) Following tools and equipment are prepared.
1. Chain hoist or crane.
2. Impact wrench, Ratchet wrench, Torque wrench,
Socket wrench, Spanner wrench.
3. Nylon strap.
(1) Gauge
(2) Oil inlet
(A) Oil level is acceptable within this range
Remote Valve Type Loader
LA1154 1.5 hours
To Next Page
