9ASSEMBLY INSTRUCTIONS
BStandard Valve
1. Attach the valve stay support on the tractor.
[M7995 (ROPS MODEL)]
[M7996 (CAB MODEL)]
[LA1154SU]

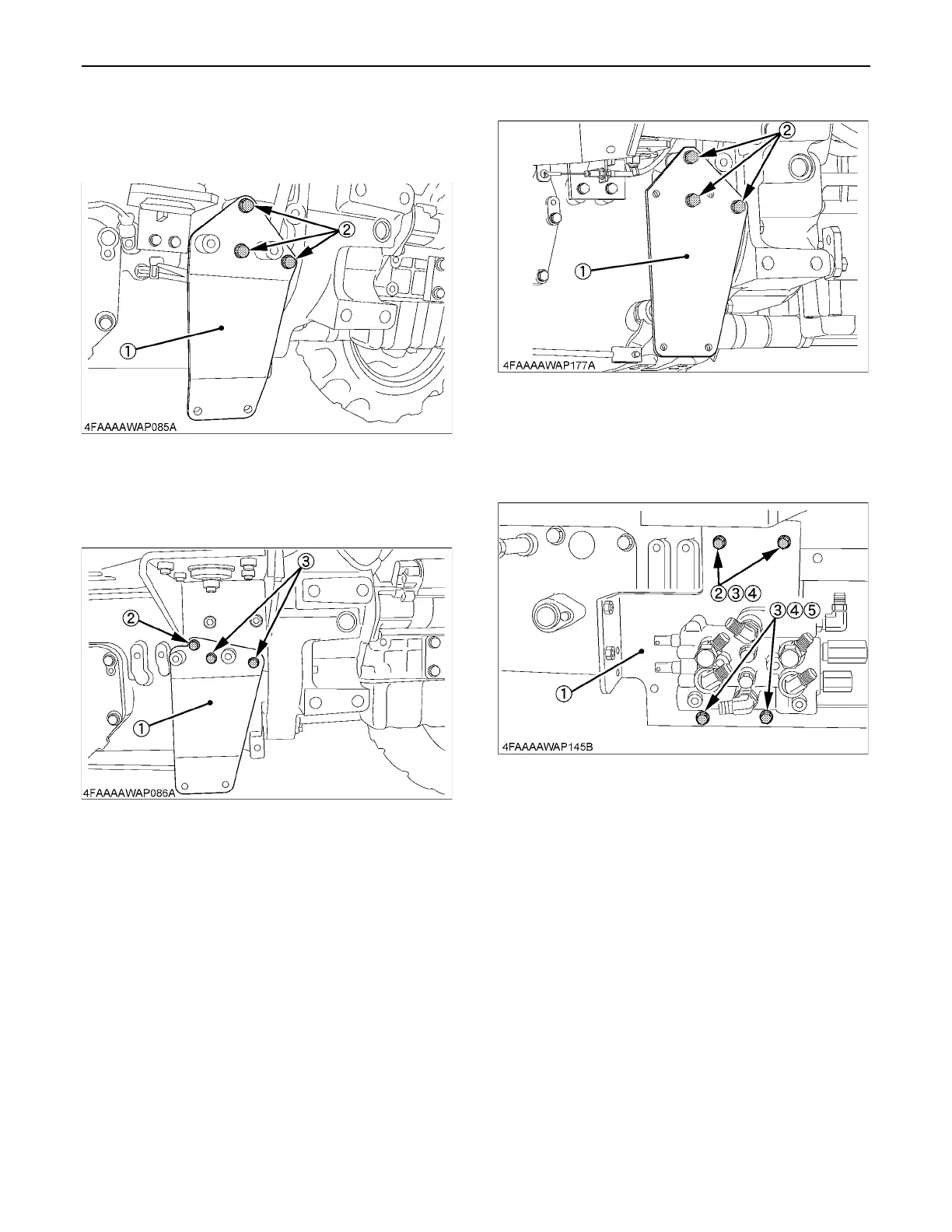

2. Fit the valve stay assembly to the valve stay support.
(1) Valve stay support
(2) 3-M12 x 30 bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(1) Valve stay support
(2) 1-M12 x 25 bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(3) 2-M12 x 35 bolts (original)
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(1) Valve stay support
(2) 3-M12 x 75 sems bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
[M7995 (ROPS MODEL), M7996 (CAB MODEL)]
(1) Valve stay
(2) 2-M10 x 110 hex. bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(3) 4-M10 spring lock washers
(4) 4-M10 plain washers
(5) 2-M10 x 120 hex. bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
[LA1154SU]
(1) Valve stay
(2) 2-M10 x 110 hex. bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(3) 4-M10 spring lock washers
(4) 4-M10 plain washers
(5) 2-M10 x 110 hex. bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
