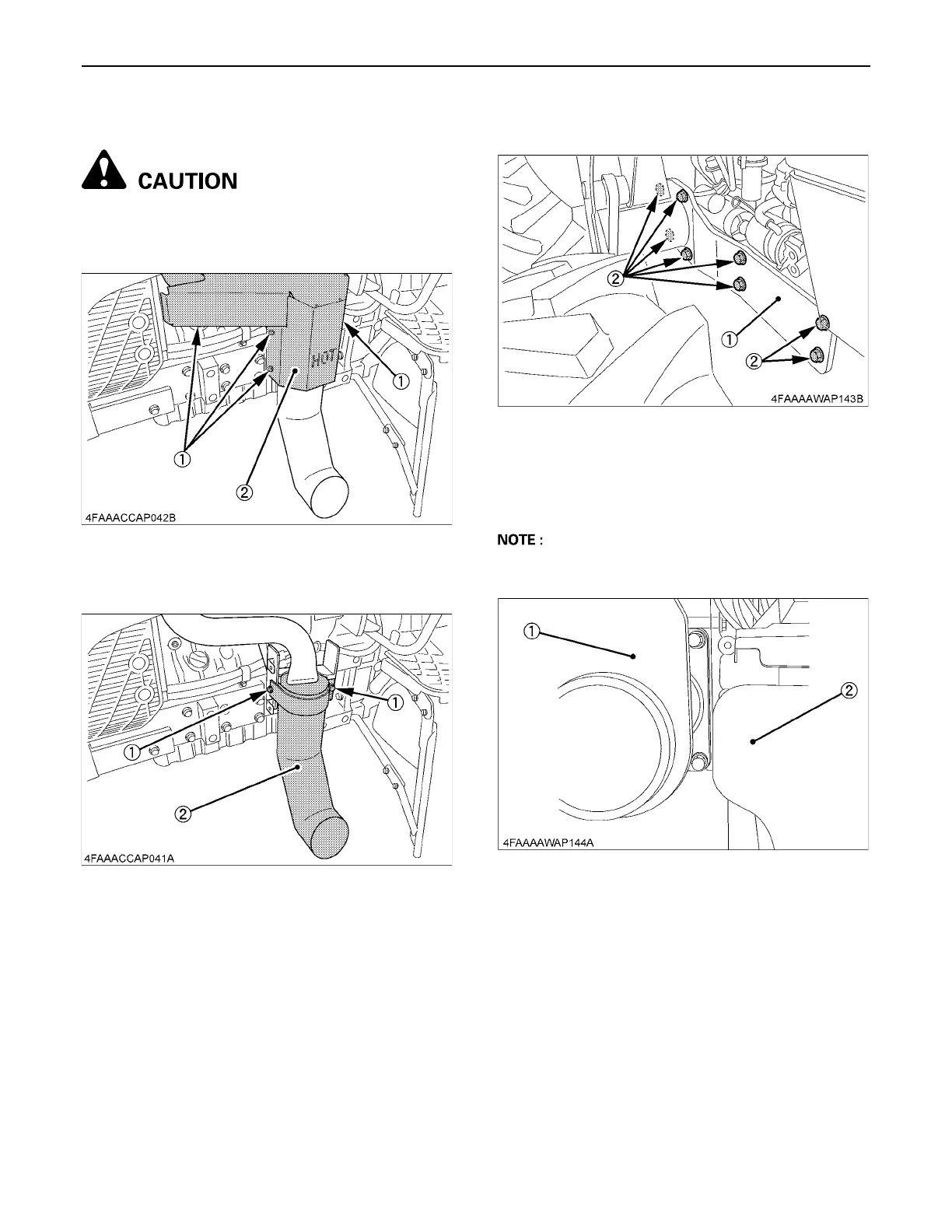

7ASSEMBLY INSTRUCTIONS
BMain Frame [Under Muffler Model]
A Wait long enough for the muffler cover and the muffler
pipe to cool down.
1. Remove the bolts and the muffler cover. (Left side)
2. Remove the bolts and the muffler pipe. (Left side)
3. Install the main frames to the clutch housing and the
front axle as shown.
A Main frame must be hoisted vertically as shown to
avoid contact with the fuel tank.
(1) 4-M8 x 12 bolts
(2) Muffler cover
(1) 2-M8 x 16 bolts
(2) Muffler pipe
(1) Main frame
(2) 16-M20 x 60 bolts
16-M20 spring lock washers
16-3/4 hardened plain washers
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(1) Main frame
(2) Fuel tank
