Kubota LA1154 User Manual

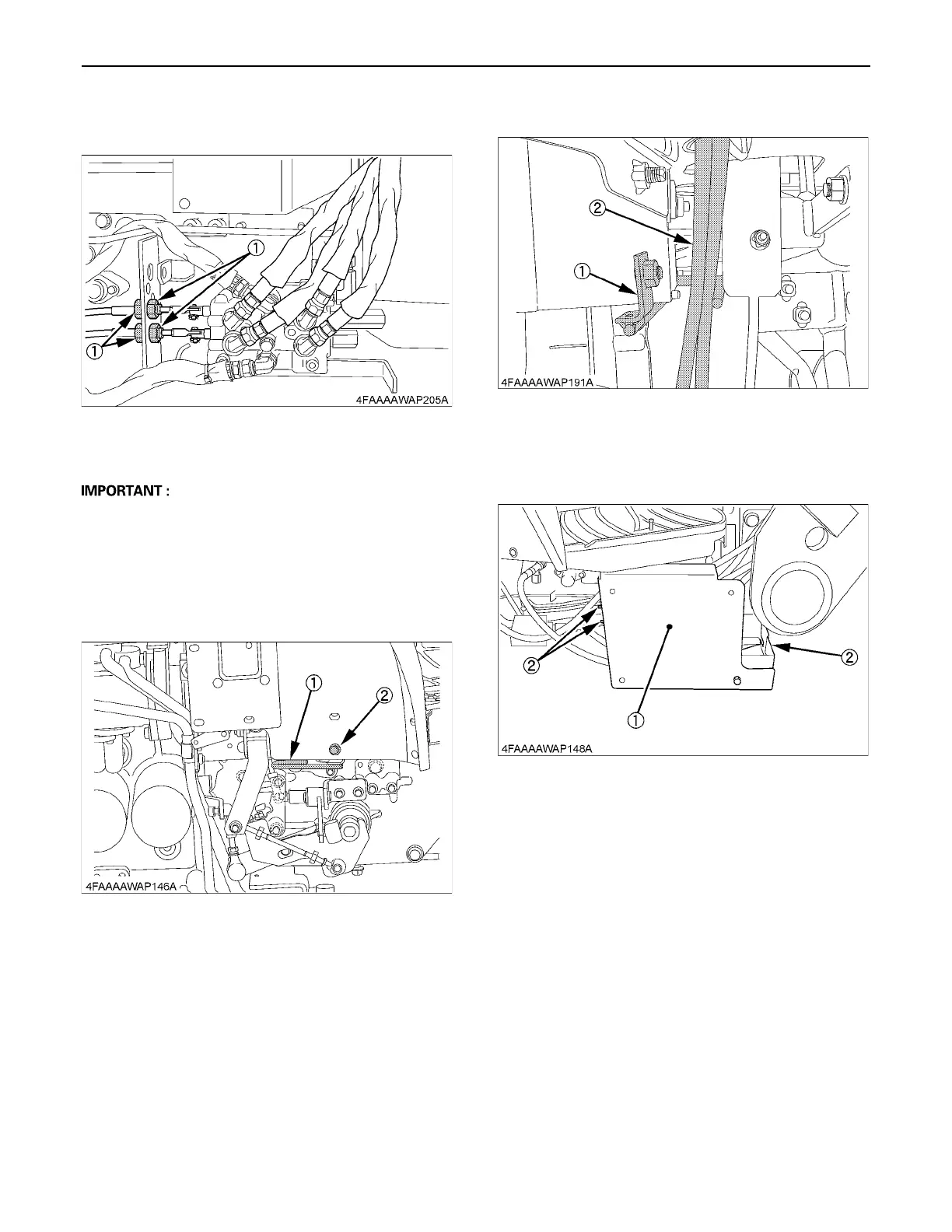

19ASSEMBLY INSTRUCTIONS
8. Tighten up the lock nuts at both sides of the valve stay
to secure the cables in place.
A With the lock nuts tight in position, move the lever to
make sure that the cables and spools behave
smoothly as specified.
BCable Guide [M7995 (ROPS Model)]
1. Attach the cable guide to the fender.
2. Pass the controller cable through the cable guide.
BControl Valve Cover
1. Attach the valve cover to the valve stay.
BStep
Attach the step.
(1) 4-M16 Lock nuts
Tightening torque: 60.0 to 80.0 N-m
(6.1 to 8.2 kgf-m, 44.3 to 59.0 ft-lbs)
(1) Cable guide
(2) 1-M8 x 16 bolt with washers
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(1) Cable guide (2) Controller cable
(1) Valve cover
(2) 3-M8 x 20 bolts with washers
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.

Kubota LA1154 Specifications

General

Lift Capacity at Pivot Pin	1150 kg
Bucket Width	72 in
Overall Width	72 in
Hydraulic Flow Rate	45 L/min (11.9 gpm)
Lift Capacity at 500mm Forward	850 kg (1874 lbs)
Max Lift Height	3.05 m (120 in)
Breakout Force at 500mm Forward	2100 kg (4630 lbs)
Weight	680 kg (1500 lbs)
