Kubota LA1154 User Manual

ASSEMBLY INSTRUCTIONS10
BHydraulic Lines

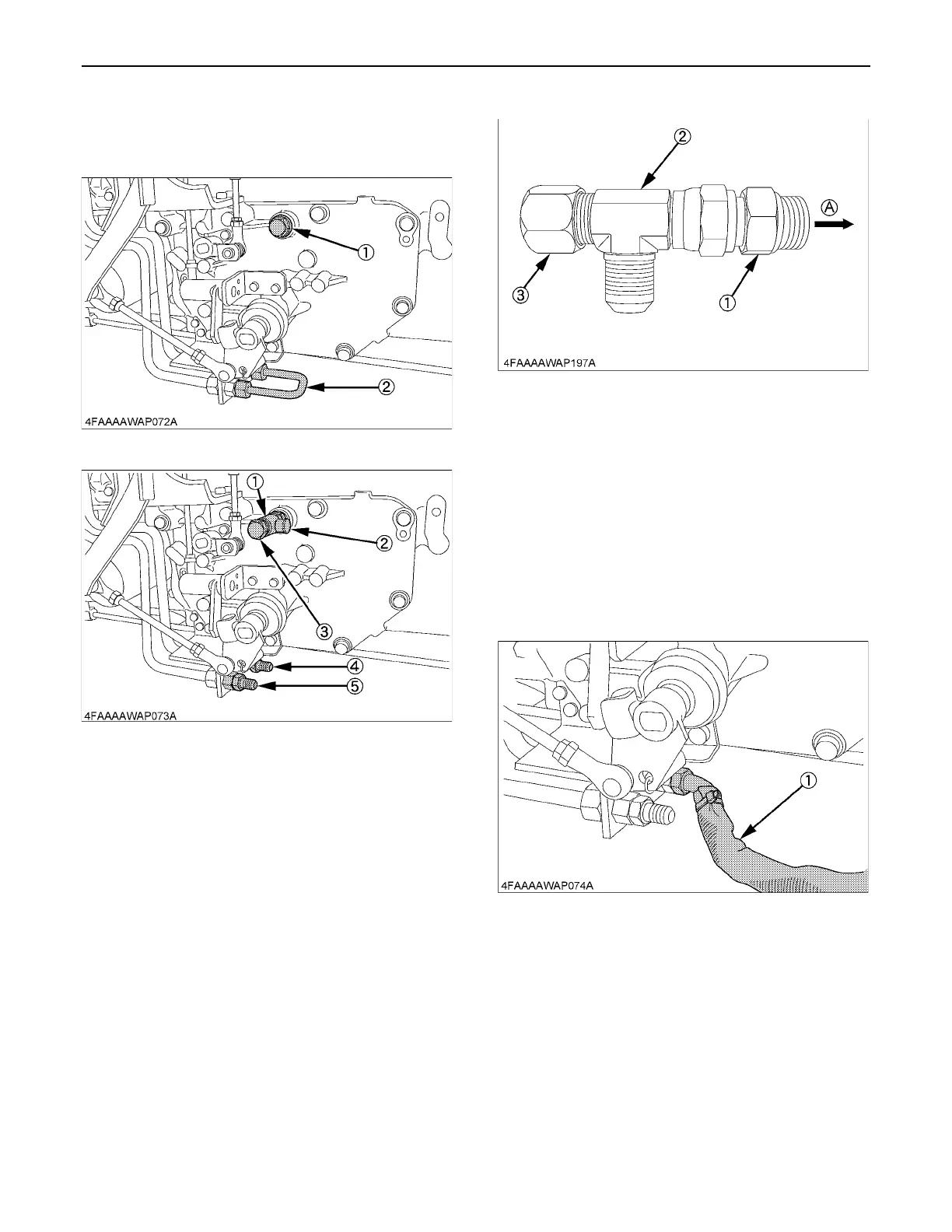

1. Remove the U pipe and tank port plug.
Connect the loader adapters to the tank port.
2. Connect the pump line hose as shown.
(1) Tank port plug (2) U pipe
(1) Assy adapter 1
Tightening torque: 77.0 to 85.0 N-m
(7.9 to 8.6 kgf-m, 57.0 to 62.0 ft-lbs)
(2) Tee, swivel run 7/8
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS, AND OTHERS" section.
(3) Cap, nut#10, 7/8-14 jic37deg
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS, AND OTHERS" section.
(4) Pump line port
(5) Power beyond port
(A) To the tractor tank port
(1) Pump line hose with sleeve
(hose 6, 630 mm (24.8 in.), 7/8-UNF)
Tightening torque: See "TIGHTENING TORQUE OF
ADAPTORS, ELBOWS, AND OTHERS" section.

Kubota LA1154 Specifications

General

Lift Capacity at Pivot Pin	1150 kg
Bucket Width	72 in
Overall Width	72 in
Hydraulic Flow Rate	45 L/min (11.9 gpm)
Lift Capacity at 500mm Forward	850 kg (1874 lbs)
Max Lift Height	3.05 m (120 in)
Breakout Force at 500mm Forward	2100 kg (4630 lbs)
Weight	680 kg (1500 lbs)
