3ASSEMBLY INSTRUCTIONS
BChecking Parts

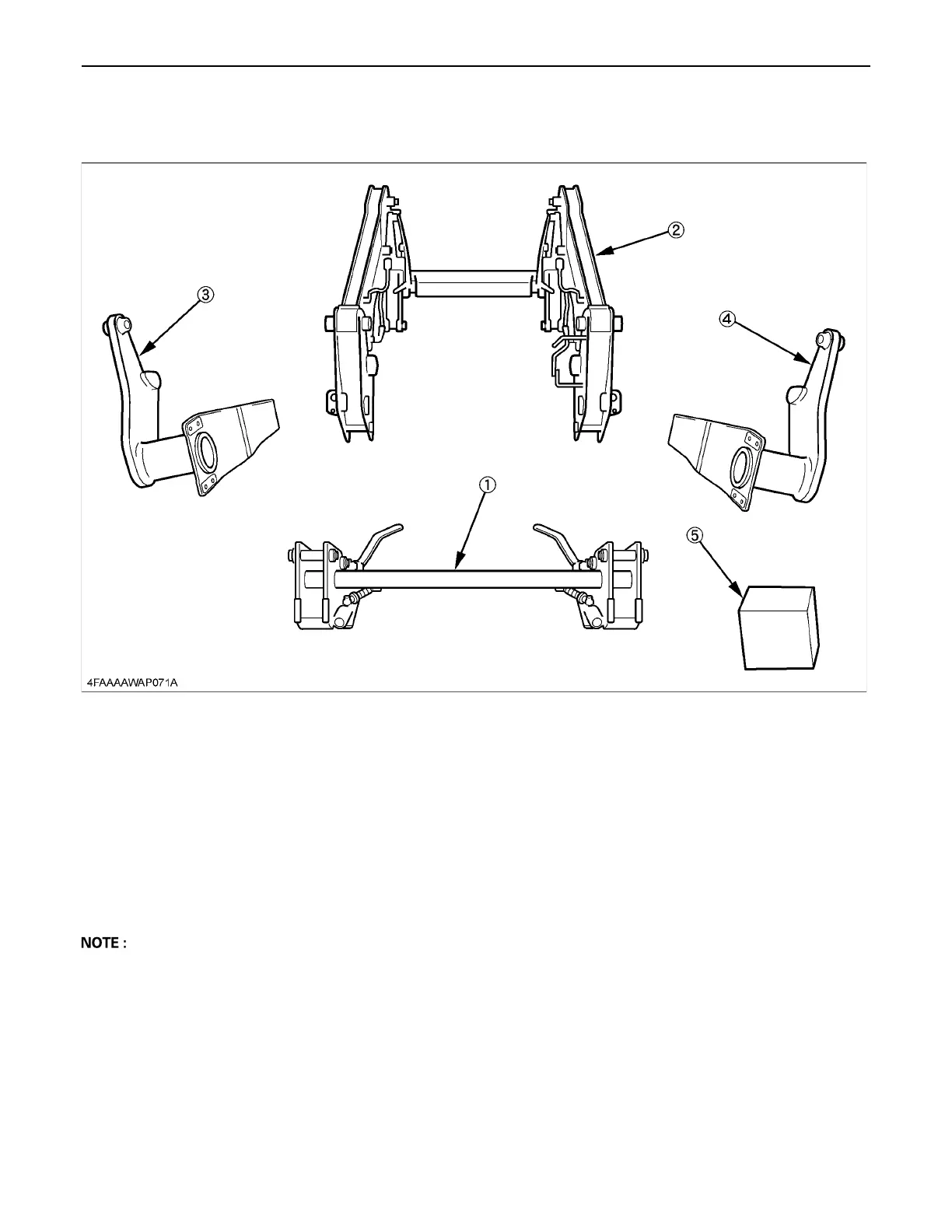

Remove all loader components. Referring to the illustration, ensure that all components have been included.
[LA1154]
[Contents of parts box]
A For valve kit, 3rd function kit, accumulator kit and front guard kit, check the checklists included in each kit.
(1) Quick hitch
(2) Boom assembly
(3) Main frame LH
(4) Main frame RH
(5) Parts box
2-pin mounts
16-M20 x 60 bolts
16-M20 spring lock washers
16-3/4 hardened plain washers
Operator’s manual
Instruction manual

Kubota LA1154 Specifications

General

Lift Capacity at Pivot Pin	1150 kg
Bucket Width	72 in
Overall Width	72 in
Hydraulic Flow Rate	45 L/min (11.9 gpm)
Lift Capacity at 500mm Forward	850 kg (1874 lbs)
Max Lift Height	3.05 m (120 in)
Breakout Force at 500mm Forward	2100 kg (4630 lbs)
Weight	680 kg (1500 lbs)
