Kubota LA1154 User Manual

51ASSEMBLY INSTRUCTIONS
BQuick Hitch Frame and Bucket
To avoid personal injury:
A Do not operate or mount loader without quick
attach or bucket installed to loader. Damage
may occur to bucket cylinders without these
conditions being set.

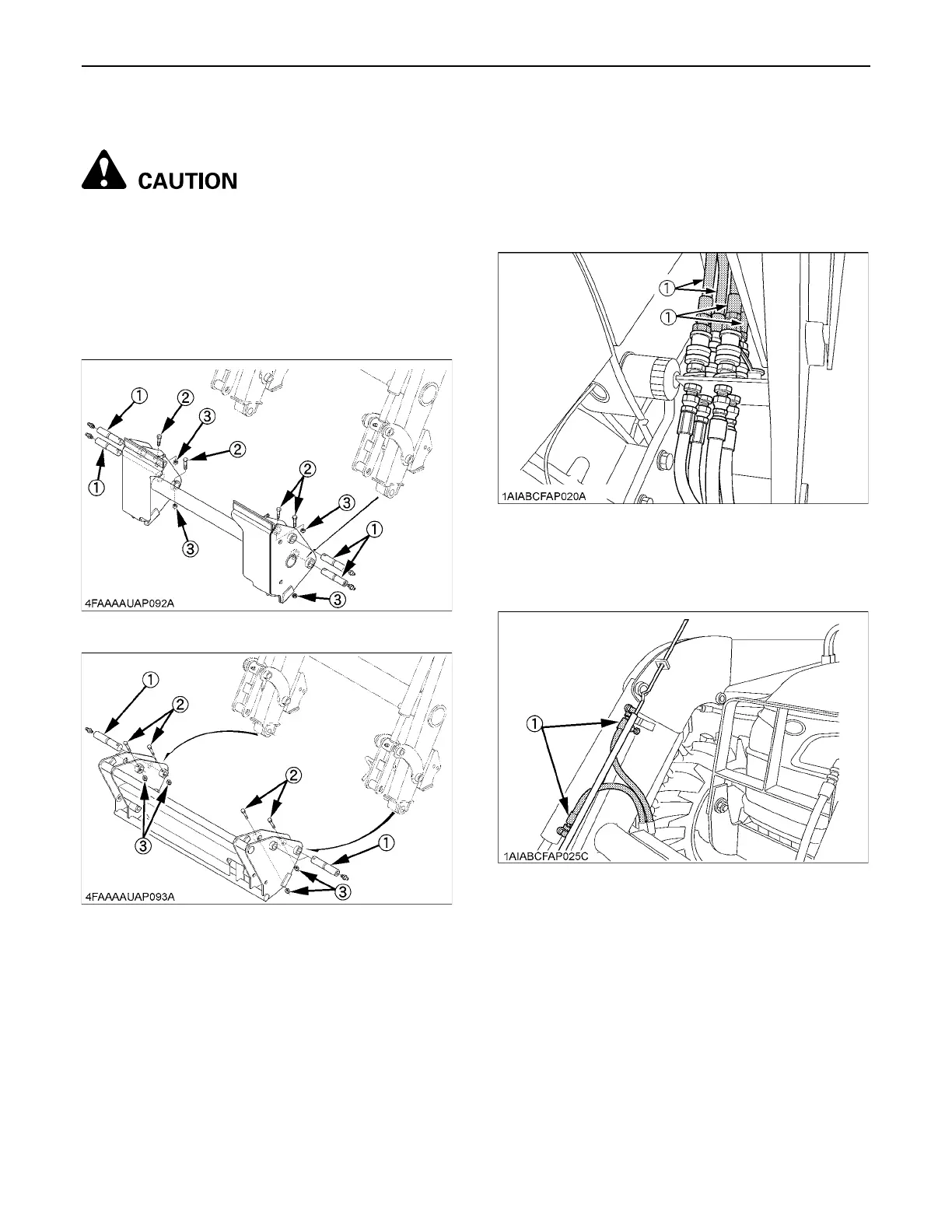

1. Attach the quick hitch frame to the boom and bucket
links as shown.
[Quick attach coupler]
[Euro type coupler]
2. Attach the bucket to the quick hitch.
(See operator's manual)
BHydraulic Hoses
1. Connect four hydraulic hoses, with quick couplers,
between the hydraulic tube lines and the control valve
as indicated with color marks.
Then connect the protective caps and plugs to each
other.
2. Adjust Hose 10 which connects the bucket cylinder to
the hydraulic tubes, so that the hoses do not touch the
level indicator rod.
(1) 4- Pin 3
(2) 4- M8 x 65 hex. bolts
(3) 4- M8 locking nuts
(1) Hose 1 and hose 2
(1) Hose 10

Kubota LA1154 Specifications

General

Lift Capacity at Pivot Pin	1150 kg
Bucket Width	72 in
Overall Width	72 in
Hydraulic Flow Rate	45 L/min (11.9 gpm)
Lift Capacity at 500mm Forward	850 kg (1874 lbs)
Max Lift Height	3.05 m (120 in)
Breakout Force at 500mm Forward	2100 kg (4630 lbs)
Weight	680 kg (1500 lbs)
