Kubota R430 User Manual

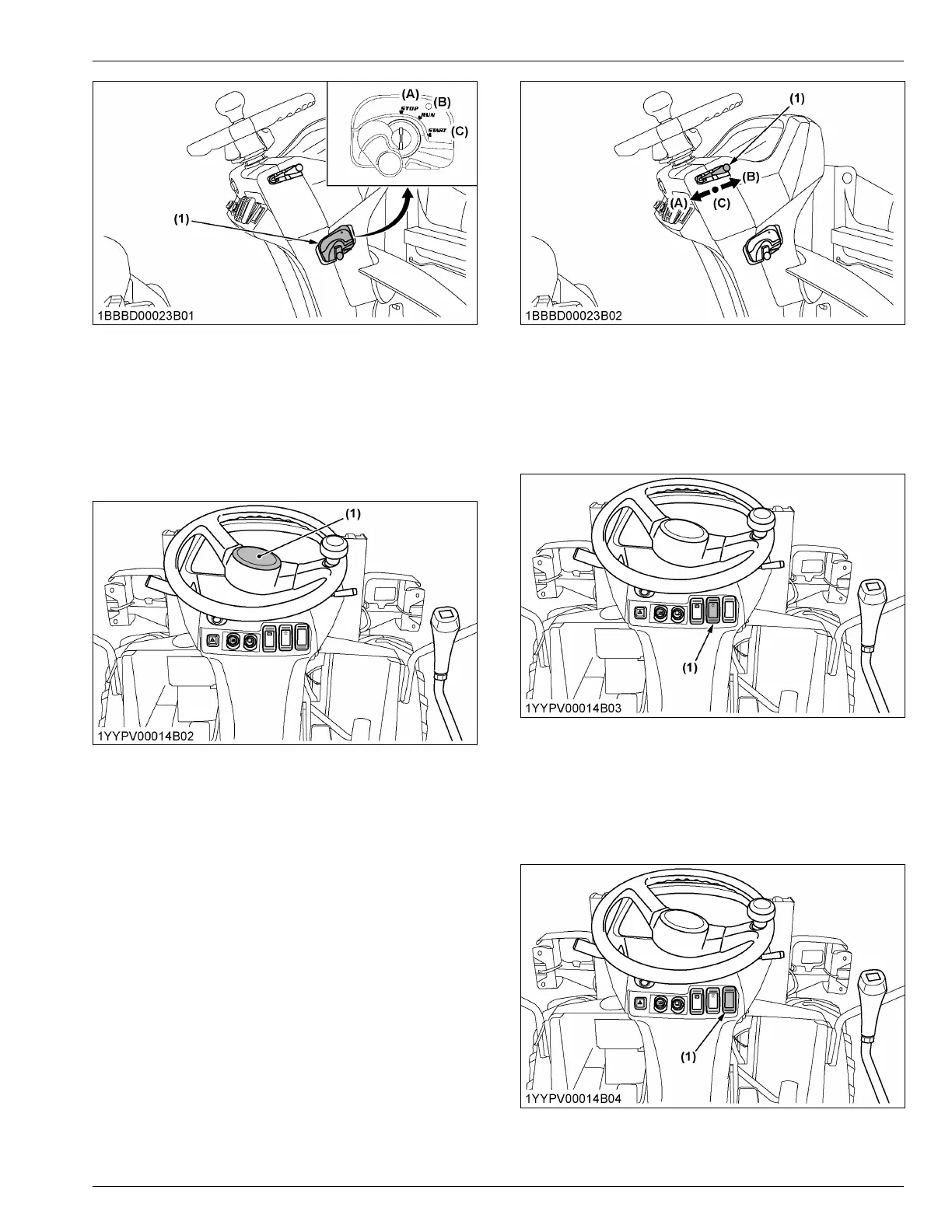

(1) Starter switch (A) STOP
(B)
RUN
(C) START
3. Horn switch
When pressing the horn switch, the horn will beep.
The
horn switch is operative even when the starter key
is in the [STOP] position.
(1) Horn switch
4. Turn signal switch
Operate the turn-signal-switch to the right or left
according
to the direction in which the machine is to be
turned. The corresponding turn signal will blink.
Be sure to return the turn-signal-switch to the neutral
position after the turn.
(1) Turn signal switch (A) To blink right turn signal
(B)
To blink left turn signal
(C) Neutral position
5. Light switch
Press the light switch to turn on the headlight and
clearance light, and instrument panel lights up.
(1) Light switch
6. Working light switch
When pressing the working-light-switch with the starter
switch
in position [RUN], the working light will be
switched on.
(1) Working light switch
CHECKS FOR THE SWITCHES
CHECKS BEFORE STARTING THE MACHINE
R430
31
