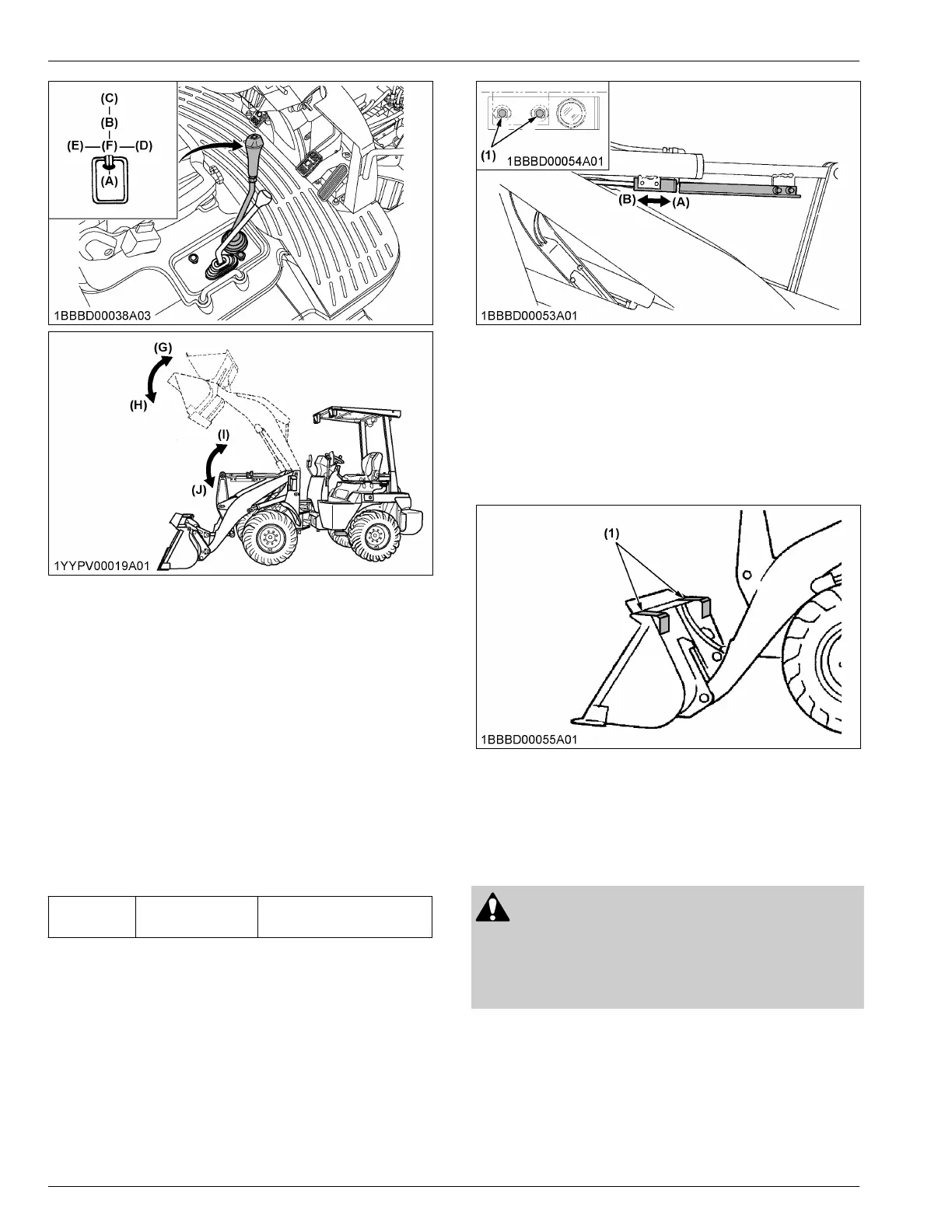

(A) Raise the lift arm
(B)
Lower the lift arm
(C) Float the lift arm
(D) Dump the bucket
(E) Roll back the bucket
(F) Neutral
(G) Roll back
(H) Dump
(I) Raise
(J) Lower
You can adjust the grounding-bucket-angle with sliding
the sensor bracket.
2.1 Adjusting the auto leveler
1. Loosen the M10 bolts
2.
Slide the sensor bracket.
• Slide to forward to upward the tip of the bucket.
• Slide to backward to downward the tip of the
bucket.
3. Tighten the M10 bolts.
M10 bolt Tightening torque
48.1 N⋅m to 55.9 N⋅m
(4.9 kgf⋅m to 5.6 kgf⋅m)
(1) M10 bolt (A) Upward
(B)
Downward
3. Bucket level indicator
Since the bucket-level-indicator covers almost the
entire
width of the bucket, you can check the condition
of bucket from the side, the center, or any other angle
even while working.
(1) Bucket level indicator
AUXILIARY PORT OPERATION
1. Precautions for auxiliary port
operation
WARNING
T
o avoid personal injury or death:
• When not using the auxiliary port, be sure to
lock the auxiliary-port-lever by the auxiliary-
port-lever-lock-knob.
2. Auxiliary port lever
Use the auxiliary-port-lever to operate the hydraulic
attachments such as 4in1 bucket.
• Pushing
the auxiliary-port-lever (A) sends oil to the
pipe-A (E).
OPERATION OF THE MACHINE OPERATION OF THE LIFT ARM AND THE BUCKET
To Next Page
