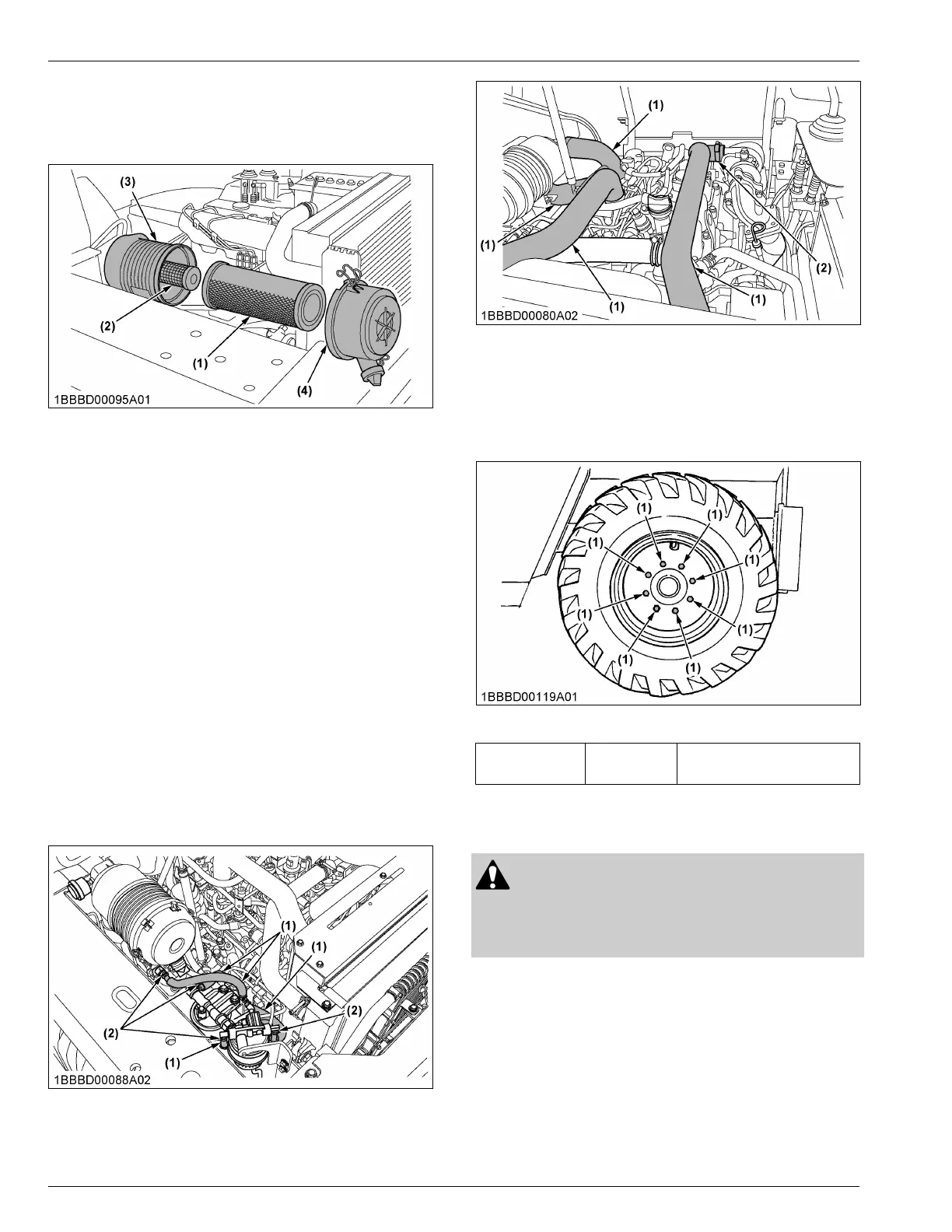

5. Reassemble
the outer-filter-element and the engine
cover.
During reassembly, take care to install the engine
cover so that its “TOP” mark (arrow) faces upwards.
(1) Outer filter element
(2)
Inner element
(3) Case
(4) Cover
IMPORTANT :
• If
you use the machine in an excessively
dusty environment, inspect and clean /
replace the air-cleaner-elements more often
than indicated in MAINTENANCE
INTERVALS on page 63.
• The air-cleaner-elements are dry elements.
Do not oil the air-cleaner-elements.
• Do not operate the machine without the air
cleaner installed.
4. Checking the fuel line and the
intake air line
1. Check
to see that all lines and hose clamps are
tight and not damaged.
2. If hoses and hose clamps are found worn or
damaged, replace or repair them at once.
(1) Hose (2) Hose clamp
5. Checking the wheel bolts
1. Check
the wheel bolts according to Changing the
tires on page 92.
(1) Wheel bolt
Wheel bolt (1)
Tightening
torque
275 N⋅m to 314 N⋅m
(28 kgf⋅m to 32 kgf⋅m)
6. Cleaning the air cleaner element
WARNING
T
o avoid personal injury or death:
• Wear the eye protectors when cleaning with
compressed air.
PERIODIC SERVICE SERVICE EVERY 200 HOURS
