Kubota R430 User Manual

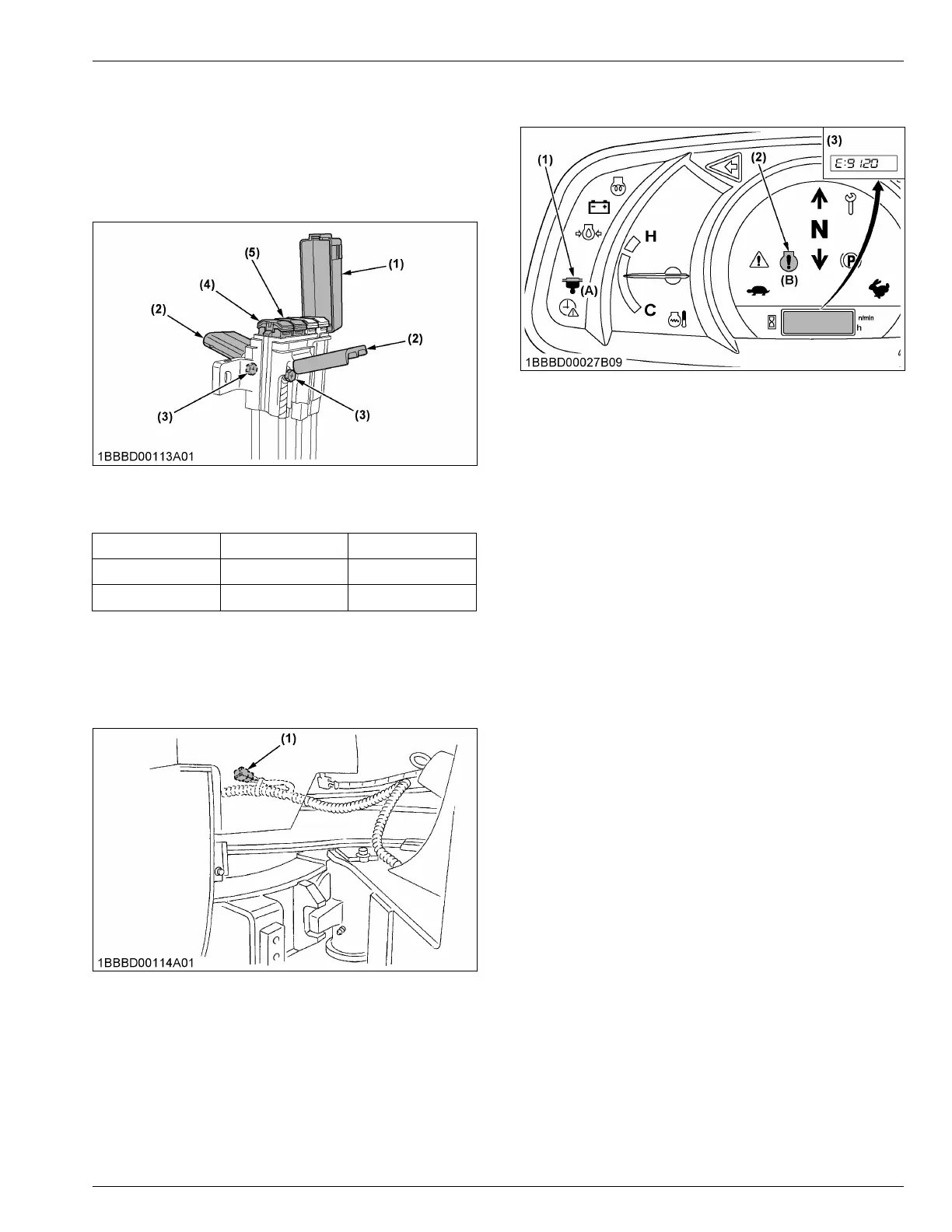

1.2 Replacing the slow blow fuses
1.
Disconnect the negative cord of the battery.
2. Remove the slow-blow-fuse-case.
3. Open the slow-blow-fuse-case-cap and the cover
then remove the bolts and draw out the slow-blow-
fuse A and B.
(1) Slow blow fuse case cap
(2) Cover
(3) Bolt
(4) Slow blow fuse A
(5) Slow blow fuse B
Slow blow fuse Rating Applied circuit
A 80A Alternator
B 60A Main 1
2. Branching the auxiliary electric
1. Branch
the wire harness of auxiliary electric as the
following figure if required.
(1) Auxiliary electric
The branched wire harness allows up to 20 A in use
when the starter switch in the [RUN]
position.
3. Draining the fuel filter by draining
the water separator
If the water separator filled-up indicator lights up and
the
error code “E:9120” appears on the meter panel,
immediately take the steps in this section to drain the
fuel filter after stopping the engine.
(1) Water separator filled-up in-
dicator
(2)
Engine warning indicator
(3) Warning message
(A) Lighting
(B) Blinking
IMPORTANT :
• If
you do not drain the fuel filter immediately
after the alarm, the engine may be seriously
damaged.
1. Open the engine cover.
2. Check the red float.
When the separated water is entering the sediment
cup, the red float moves upwards.
3. When the float moves upwards, close the shutoff-
valve so that no fuel can run out.
4. Now loosen the drain plug, and drain the water.
IMPORTANT :
• Collect drained water in an oil pan or the
like.
5. In case there are foreign substances in the cup,
detach the cup and clean it.
SERVICE AS REQUIRED PERIODIC SERVICE
R430
89
