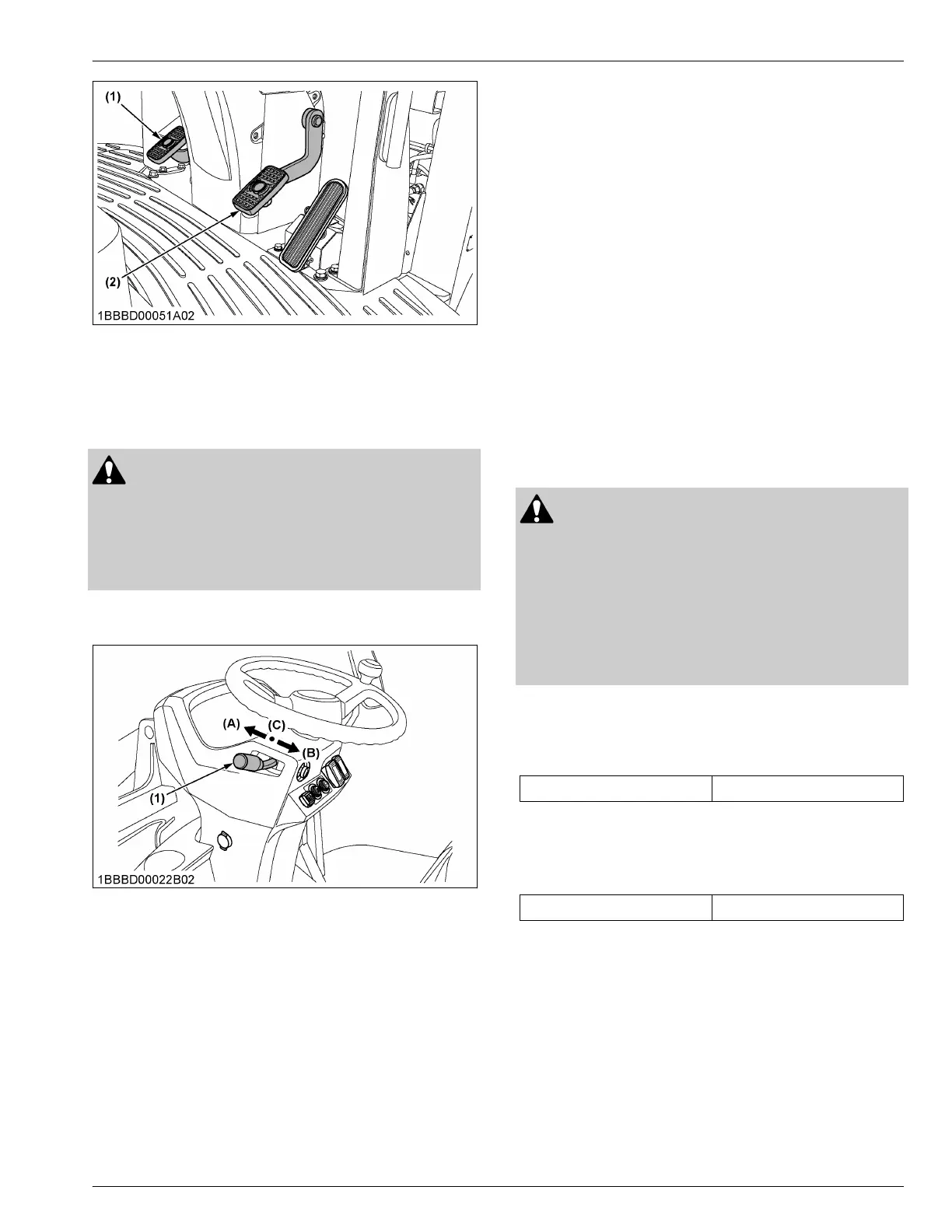

(1) Inching and brake pedal (2) Brake pedal
4. Shuttle change lever
Shuttle-change-lever changes the running direction of
machine, forward or back.
WARNING
T
o avoid personal injury or death:
• To prevent the machine from moving suddenly
or unexpectedly, be sure and push the shuttle-
change-lever-lock-knob to lock the shuttle-
change-lever whenever getting on or off.
Push the shuttle-change-lever forward for forward
direction, and pull it back for backward direction.
(1) Shuttle change lever (A) Forward
(B)
Backward
(C) Neutral
IMPORTANT :
• When
unreasonable power is applied other than
forward or backward direction of the shuttle-
change-lever, it could cause the shuttle-change-
lever to be broken.
• If the temperature of hydraulic oil is too low, the
reserve alarm may start sounding when
switching from the backward to the forward
travel. Sounding the reserve alarm is not a
problem. Just force a warm-up run, and then the
temperature of hydraulic oil rises and the
reserve alarm will stop. If the reserve alarm still
keeps
sounding, contact your local KUBOTA
dealer.
NOTE :
• When the shuttle-change-lever is in the neutral
position, the neutral indicator on the instrument
panel goes on.
• When the shuttle-change-lever is in the forward
position, the forward indicator on the
instrument panel goes on.
• When the shuttle-change-lever is in the
backward position, the backward indicator on
the instrument panel goes on.
• When the machine begins to travel backward,
the back buzzer starts sounding.
5. Travel speed switch
Travel-speed-switch serves to change the maximum
speed and low speed.
WARNING
T
o avoid personal injury or death:
• While descending a slope in the high speed, be
extremely careful when applying the travel-
speed-range from the high speed, there is the
risk of the rear lifting of machine which could
be dangerous.
• When descending a slope, use the engine brake
to slow the machine.
1. Pressing the travel-speed-switch, the high-travel-
speed-indicator goes out and the low-travel-speed-
indicator lights up. Then travel speed is limited to
the following values.
Travel speed 4.8 km/h
2. Pressing
the travel-speed-switch again, the low-
travel-speed-indicator goes out and the high-travel-
speed-indicator lights up. Then maximum travel
speed is as follows.
Travel speed 20 km/h
TRAVELING WITH MACHINE OPERATION OF THE MACHINE
