Kubota R430 User Manual

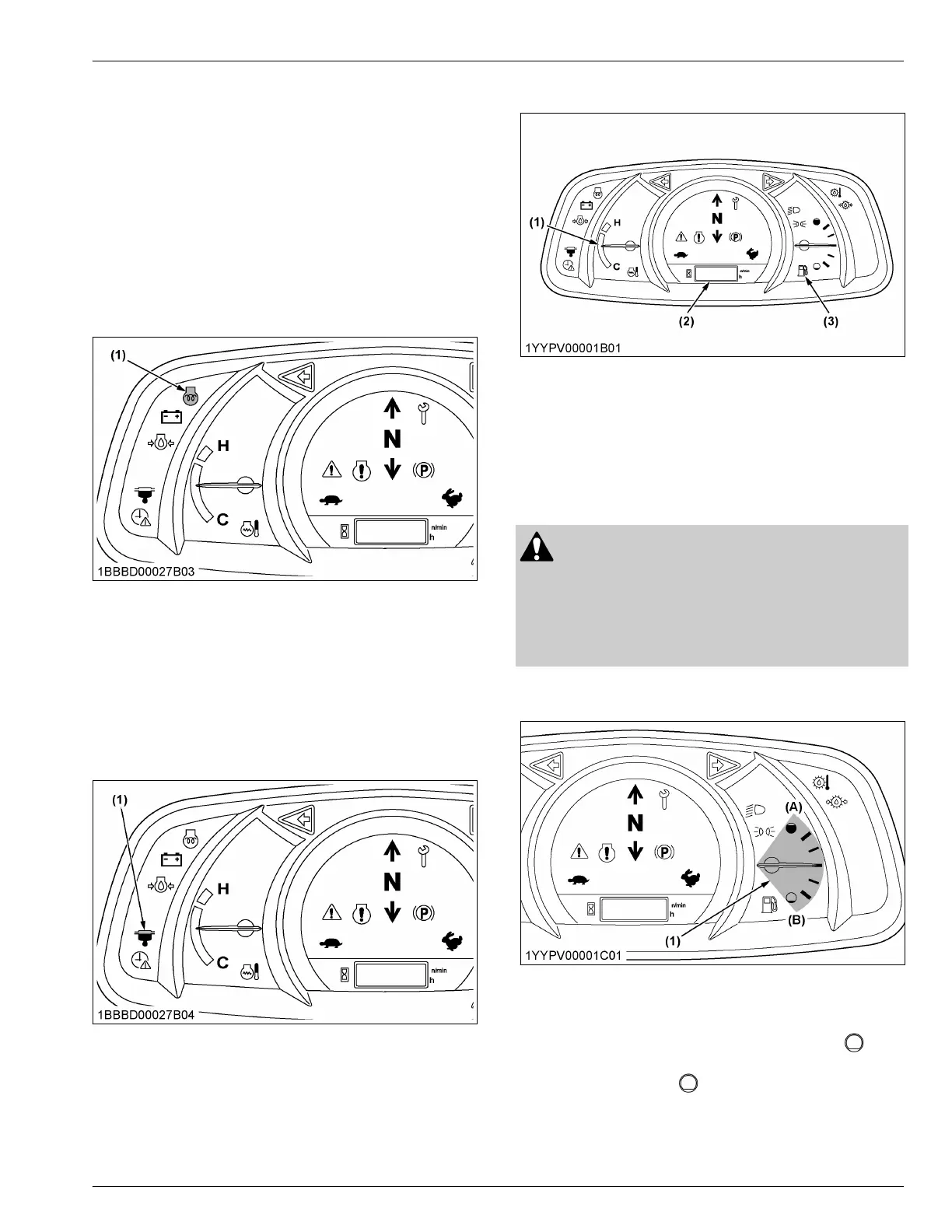

NOTE :
• When
the starter switch is turned to the [RUN]
position, the engine will be preheated for a
given period of time and the grow-plug-
indicator will turn on.
• The indication of the grow-plug-indicator
appears momentarily when the engine is
started, but it does not indicate trouble. This is
because the oil-charge-sensor-output fluctuates
when the engine is started.
• The following symbol appears momentarily
when the engine starts. This symbol appearing
is not an error.
(1) Glow plug indicator
4. Water separator filled-up indicator
When the water separator is filled up, the water
separator filled-up indicator lights up.
If
the water separator filled-up indicator lights up, drain
the water separator according to Draining the water
separator on page 72.
(1) Water separator filled-up in-
dicator
5. LCD for normal operation
(1) Coolant temperature gauge
(2)
LCD
(3) Fuel gauge
NOTE :
• The
LCD may be illegible when viewed from a
certain angle. The illegible condition is not a
display failure.
5.1 Fuel gauge
WARNING
To avoid personal injury or death:
• Before adding the fuel, be sure to stop the
engine.
• Be sure to keep the open flame away from the
machine. Otherwise a fire may result.
With the starter key at the [RUN] position, the
remaining fuel level is indicated.
(1) Fuel gauge (A) Full
(B)
Empty
IMPORTANT :
•
If
the fuel-gauge-indicator is near the
, add
fuel
as soon as possible. If the fuel-gauge-
indicator is near
and the machine operates
on a slope, the engine may run out of fuel.
CHECKS FOR THE INDICATORS
CHECKS BEFORE STARTING THE MACHINE
R430
35
