• When
handling the control lever, you should
carry out it after setting the shuttle-change-
lever to the neutral position and the parking-
brake-switch to the parking position, lowering
the bucket, and locking all control levers in the
neutral position.

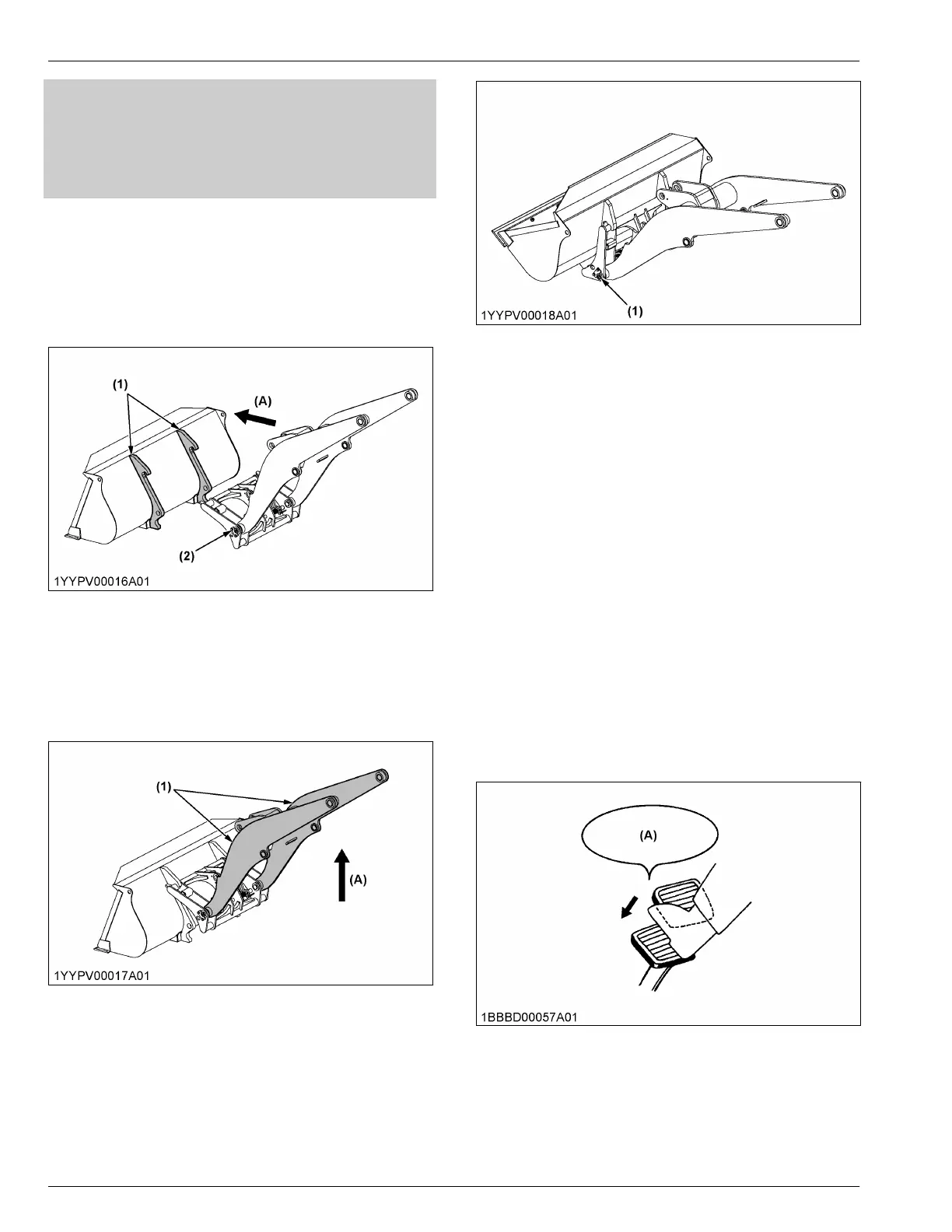

1. Place an attachment in question on a flat ground.
Slowly move the machine until the multi-coupler
hook's center gets in alignment with the attachment
center. At this time, keep the multi-coupler in its
dumping position and the connecting pins below the
level of the attachment hooks. Hold the connecting
pins still in their retracted position.
(1) Hook
(2)
Connecting pin
(A) Forward
2. Make
sure the attachment center and the
multicoupler hook's center are in alignment with
each other. Press the multi-coupler against the
attachment and raise the lift arm so that all the
hooks fit together.
(1) Lift arm (A) Raise
3. Now
raise the lift a little further and tilt up the
bucket. Fit and secure the connecting pins in
position.
(1) Connecting pin
4. T
o dismount the attachment, take the reverse order
of the above mounting procedure.
HOW TO USE THE INCHING
AND BRAKE PEDAL
1. Operating the inching and brake
pedal
Operate the inching-and-brake-pedal as the procedures
in this section according to the application.
1.
Stop the machine.
The inching-and-brake-pedal controls the LST
pump and brake.
a. To stop the machine completely during work,
first press the inching-and-brake-pedal slightly.
Oil flow from LST pump comes to zero and cuts
the driving power to slow down or stop the
machine.
b. Press the inching-and-brake-pedal completely.
The disc brake will be applied to stop the
machine completely.
(A) Press the inching and brake
pedal with force
OPERATION OF THE MACHINE HOW TO USE THE INCHING AND BRAKE PEDAL
