Getting to know the machine
28
Technical
specifications

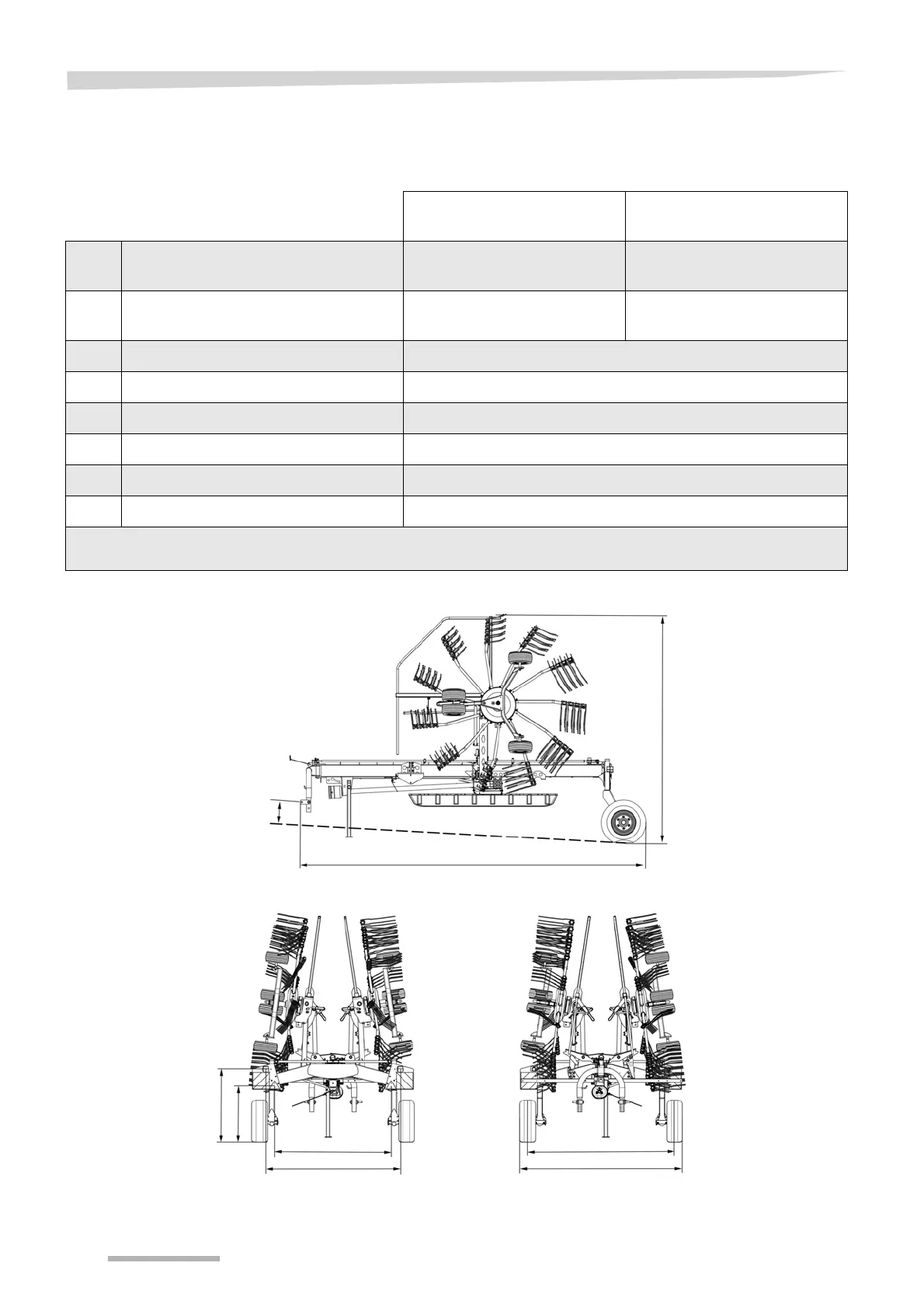

Dimensions in transport position Standard
transport chassis [m]
With hydraulic transport
chassis [m]
A Length
5.90 (16.36 ft) 5.90 - 6.06**
(16.36 ft - 21.65 ft)
B Height with all tine supports
3.65 ** - 3.90
(11.76 ft - 12.80 ft)
3.44** - 3.90
(11.29 ft - 12.80 ft)
C Width at transport wheels 2.80 (9.19 ft)
D Track width 2.51 (8.25 ft)
E Distance between lights 2.30 (7.55 ft)
F Height of lights 1.29 (4.23 ft)
G Height of bottom reflectors 0.35 (1.15 ft
H Distance between bottom reflectors 2.08 (6.83 ft)
* Machine attachment point (cat. 2) lowered to 200 mm from the ground (attachment carrier 40 mm).
** Machine completely lowered for transport position with hydraulic chassis.
