Getting to know the machine
33
Function
overview

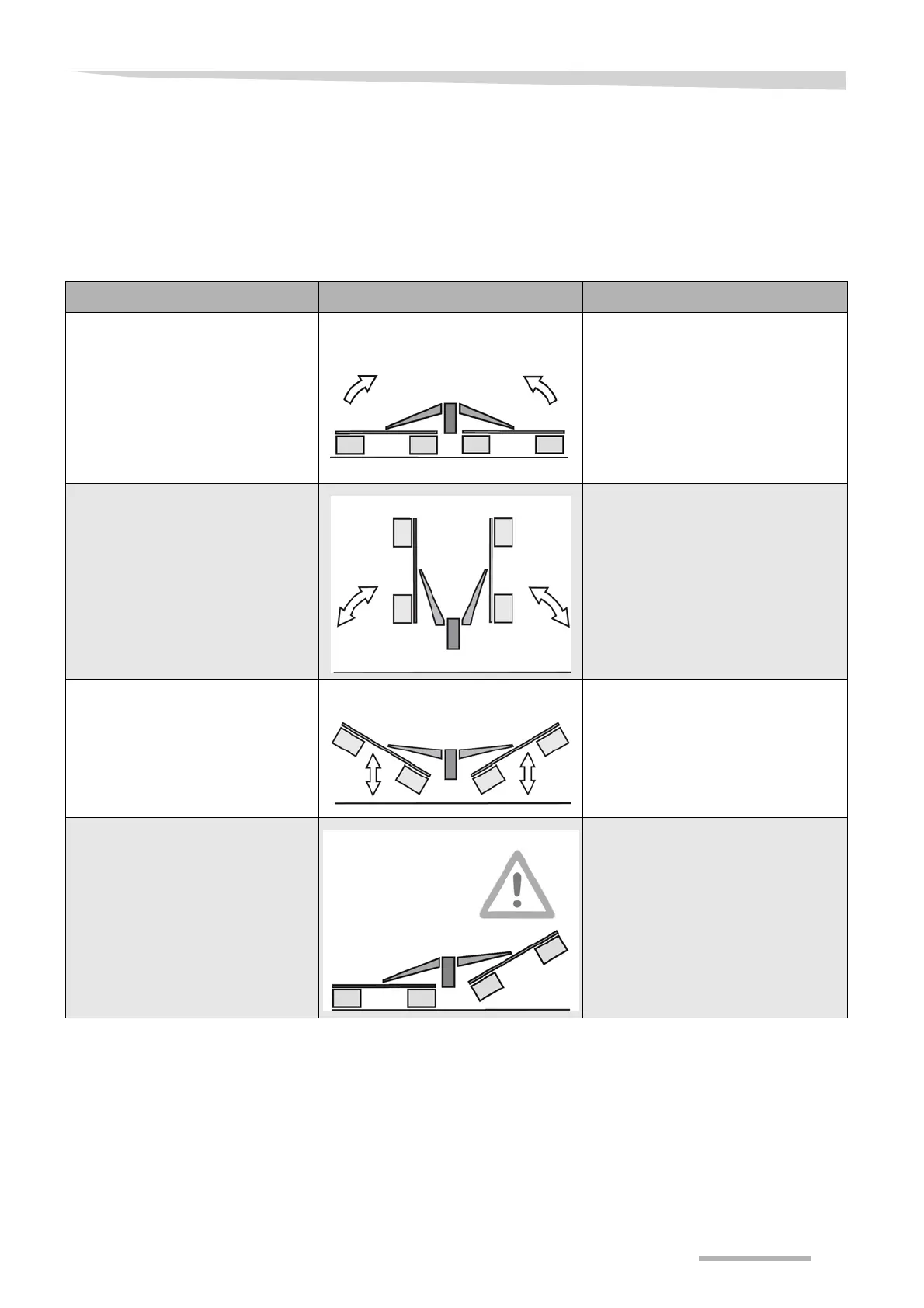

Standard version
The table below provides a summary of the functions. Be sure to
follow the other instructions and note the safety information in the
operating manual.
Steering Machine position Function
• Single-acting hydraulic control
device on the tractor.
Transport
• Machine in work position.
• Switch off the PTO shaft drive.
• Clean the machine.
• Use the single-acting hydraulic con-
trol device on the tractor to move the
machine to the transport position.
• Single-acting hydraulic control
device on the tractor.
Work position
• Switch off the PTO shaft drive.
• Use the single-acting hydraulic con-
trol device on the tractor to release
the lift arm locking mechanism.
• Pull the cable on the mechanical
lock and keep tensioned.
• Fold the rotors in fully with the sin-
gle-acting hydraulic control device
on the tractor.
• Single-acting hydraulic control
device on the tractor.
Headlands
• Using the single-acting hydraulic
control device on the tractor, raise
both rotors to the headland position,
then lower them.
• Single-acting hydraulic control
device on the tractor.
• Cable-controlled ball valve for
right rotor.
Swathing with left rotor [+]
• The right rotor remains in the head-
land position.
• Raise the machine to the headland
position using the single-acting hy-
draulic control device.
• Pull the cable on the right cable-con-
trolled ball valve once.
• Lower the left rotor using the single-
acting hydraulic control device on
the tractor.
