Preparing for use
56
General
The following applies when performing all adjustment work:
Check the tire pressure.
Secure the machine.
Lower the machine to the work position.
Undo the appropriate bolts.
Make the required adjustment.
Retighten the bolts.
Fit and secure the tine supports.
The following work steps are described in this section:
• »Adjusting the machine«
• »Frame pitch«
• »Rotor pitch«
• »Working depth«
Adjusting the
machine

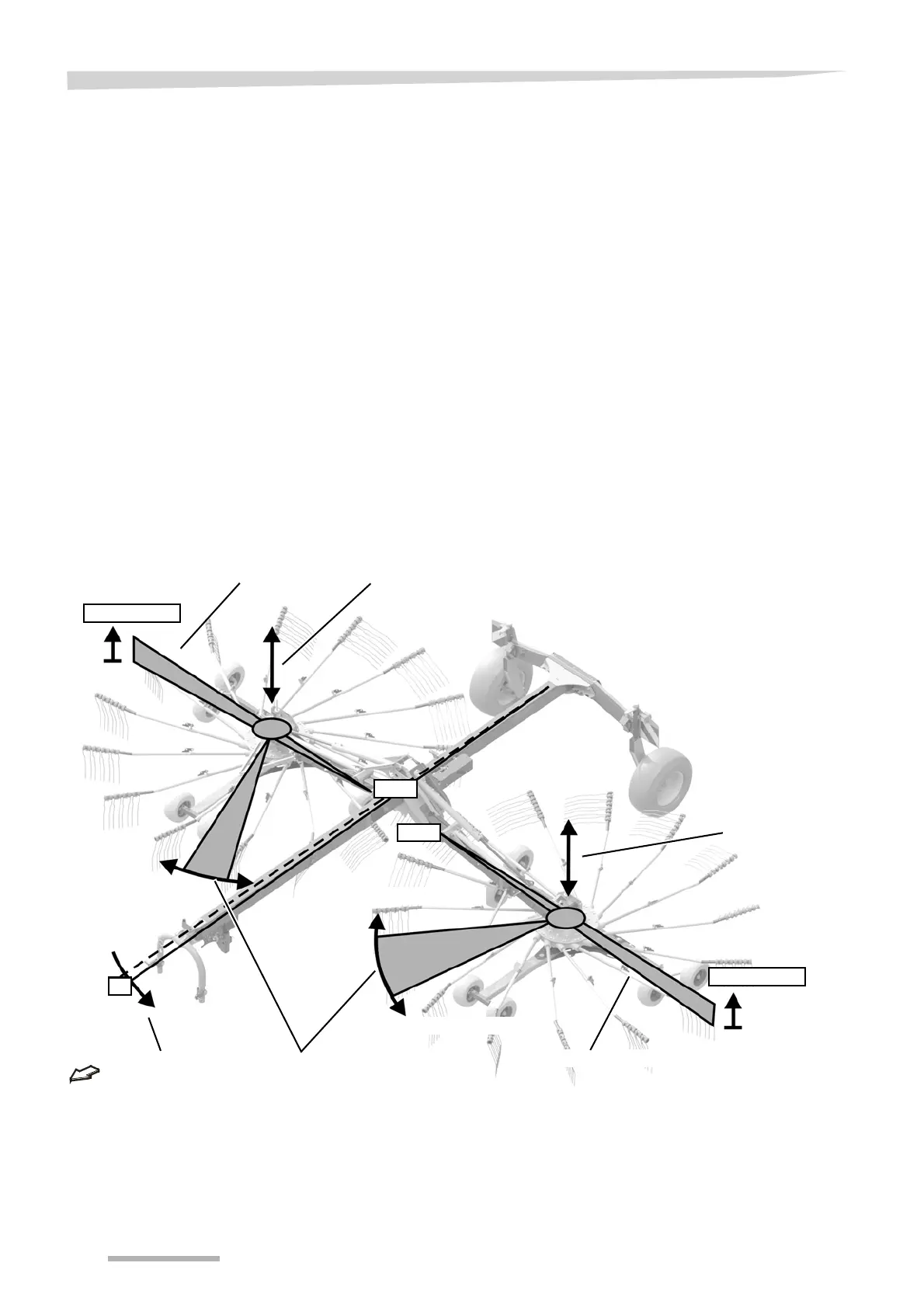

The machine is preset at the factory. The following illustration shows
an overview of the basic settings. Detailed information can be found
on the following pages.
Frame pitch
Rotor pitch
Working depth
Rotor pitch
Lifting the tines
20 mm (0.8 in)
20 mm (0.8 in)
0 mm
0 mm
1°
Early lifting
Late lifting
Working depth
