Maintenance
96
Filling quantities
Checking rotor gear
The rotor gear is equipped with a continuous oil lubrication system.
Check the lubricants if there is visible loss of lubricant when the
machine is in a horizontal position – at least once per season. If there
is a visible loss of lubricant, consult your dealer. Otherwise, this will
cause damage to the machine. The oil level at the rotor gear is
indicated by an inspection glass.
Check the oil level at the rotor using the inspection glass.
Check the oil level at the angular gear box using the filling/drain
screw.
If there is a visible loss of oil, top up to the required volume.
Tires
Tire pressure
Check the tire pressures on a regular basis:
• daily.
• before any road transport
• as required (for example before setting the tine height).
• before and after the season.
\ CAUTION
Observe the correct fill quantities
Observe the correct lubricant fill quantities. Check them regularly.
A lubricant level which is too low or too high may result in damage
to the machine.
Gear box Oil volume
Angular gear 1.0 l (1.06 US qt)
Rotor gear, left 6.2 l (6.55 US qt)
Rotor gear, right 6.2 l (6.55 US qt)

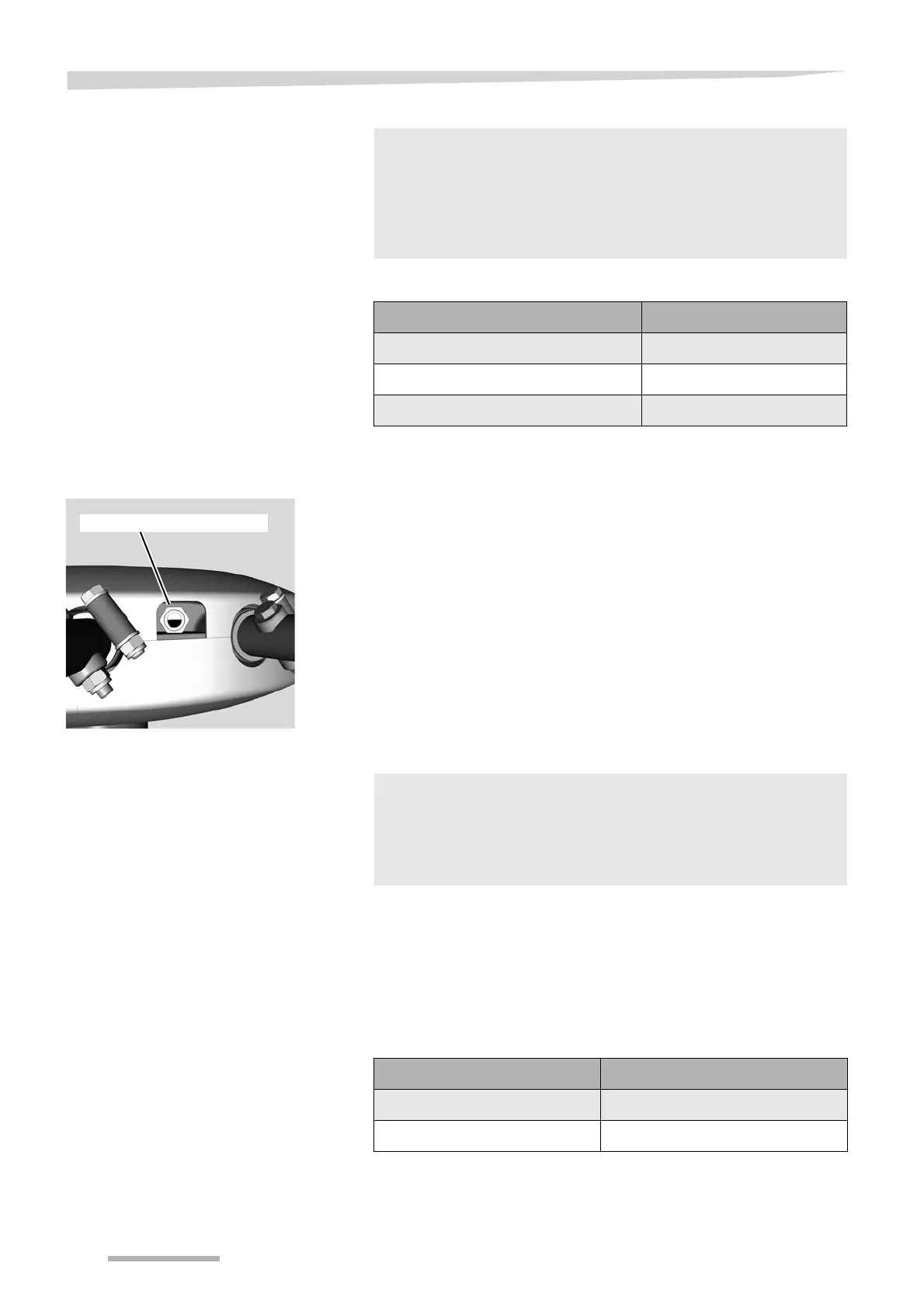

Inspection glass on the rotor
\ WARNING
Do not drive with worn or damaged tires
Replace worn or damaged tires immediately. There is a high risk
of accident when driving on the road with such tires.
Tire pressure
Rotor chassis 1.5 bar (22 psi)
Transport chassis 2.5 bar (36.5 psi)
