Coupling the machine
49
Connections
Electrical
connections
Lighting equipment –
USA
The machine is fitted with lighting equipment for road transport. The
lighting equipment is mounted on the left and right-hand side of the
rear guard bar and connected to the tractor by a 7-pin plug. The cor-
responding connection must be present on the tractor (SAE J560).
If your tractor does not have the corresponding connection, this must
be retrofitted. Consult your dealer.
The lighting equipment is controlled by the lighting controls in the tractor.
The lamps on the machine are only switched on when either the parking
lights or the headlight of the tractor is switched on.

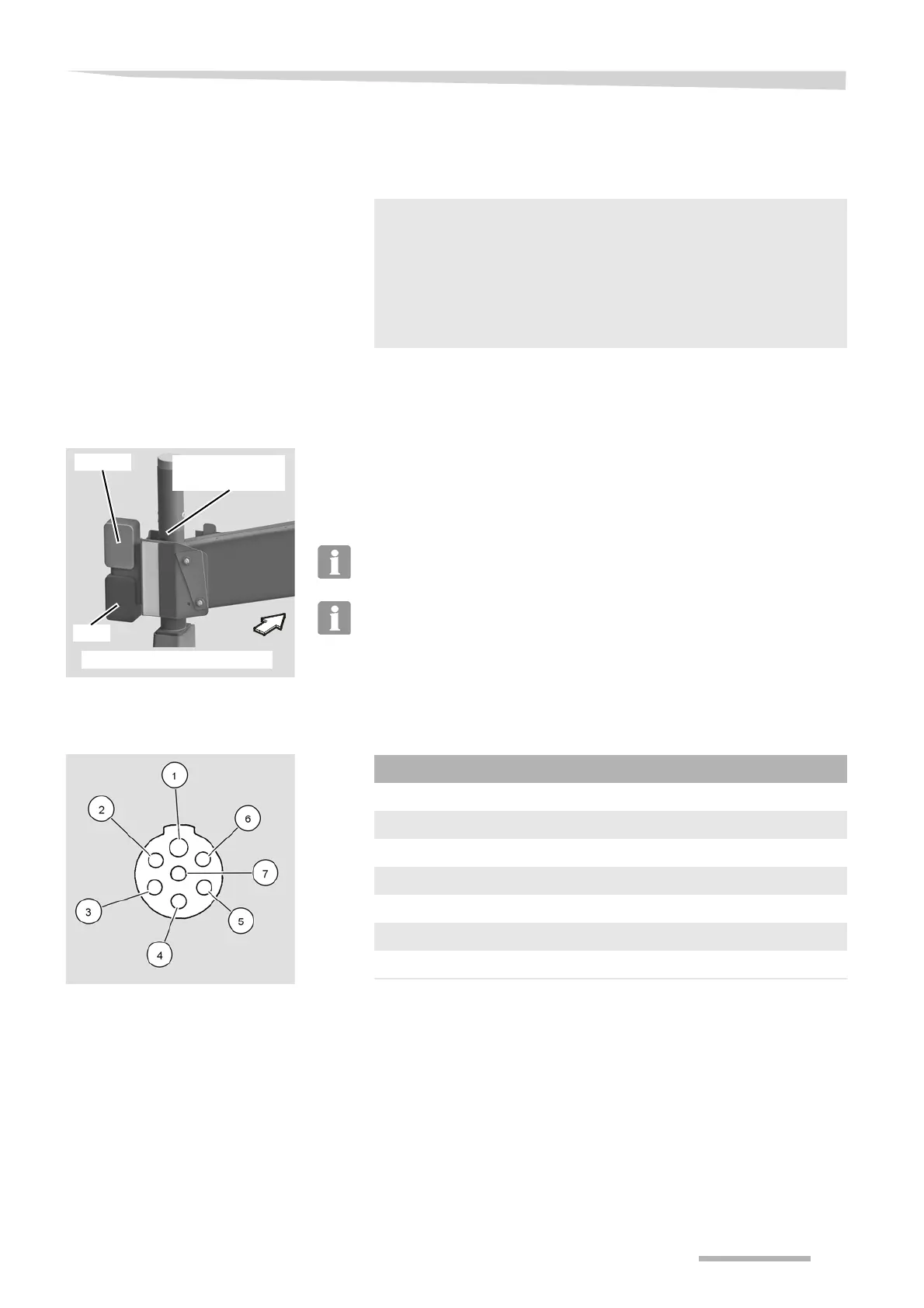

SAE J560 plug
arrangement
Connect the plug for the 12 V power supply to the 7-pin plug socket
on the tractor.
\ WARNING
Checking the electrical cables
Check the electrical cables. The electrical cables must not chafe
or hang loose. Electrical cables that have been torn away or worn
through must be replaced. Damage to the machine may be
caused as a result.
Left-hand lighting equipment
Amber
Red
2 x reflectors
(red and amber)
PIN Cable Connection to
1 White Earth; all lights
2 Black Not used
3 Yellow Left indicator (amber)
4 Red Brake lights
5 Green Right indicator (amber)
6 Brown Rear lights (red)
7 Blue Not used
