Getting to know the machine
32

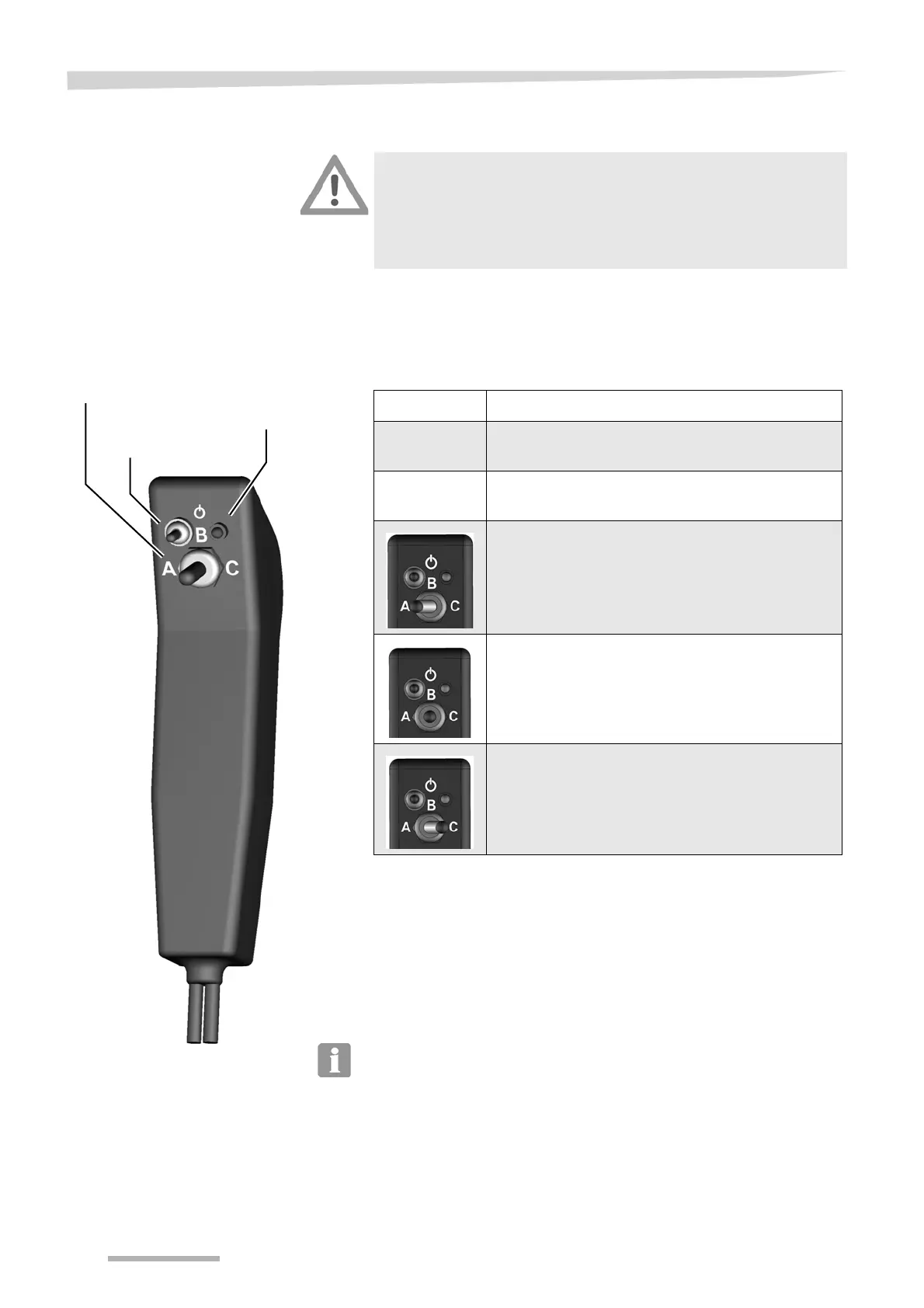

Pilotbox – Hydro
version
The rotary rake Hydro version is fitted with an electro-hydraulic control
unit – the pilotbox. The following functions can be selected from the
tractor seat and controlled using a single-acting hydraulic control de-
vice:
Operate the rotary rake with the pilotbox as follows:
Mount the pilotbox in the tractor cab so that it is easily reachable
and secure it.
Switch it on and off with the switch. The control LED lights up when
the pilotbox is switched on.
With the switch, select the function (A, B or C) and then execute
the function with the double-acting hydraulic control device.
The pilotbox is included in the scope of delivery for the Hydro version.
The pilotbox is not included in the scope of delivery for the standard
version.
Protecting electrical parts against moisture
The electronic control system, pilotbox and electrical plug connec-
tions must be protected against damp and penetrating moisture.
Dampness in electronic devices can lead to leakage current,
which results in malfunction.
On/Off switch
Control LED
3-way switch
Preselection Function
Pilotbox
OFF
Raise and lower both rotors.
Extend both lift arms.
Pilotbox
ON
Control LED lights up. The A, B and C functions
are available.
A: Raise and lower the left rotor.
B: Raise and lower the transport chassis.
Caution: During this process, the lift arms are also
extended or retracted.
C: Raise and lower the right rotor.
