PERIODIC SERVICE72
BChecking Brake Pedal
To avoid serious injury:
A Stop the engine and chock the wheels before
checking brake pedal.
A If movement is outside of the specifications,
contact your local KUBOTA Dealer for
adjusting the brake.
C Checking the brake pedal free travel
1. Release the parking brake.
2. Slightly depress the brake pedal and measure free
travel at the top of the pedal stroke.
3. If brake pedal free travel is outside of the
specifications, contact your local KUBOTA Dealer for
adjusting the brake.
C Checking the brake pedal stroke
1. Release the parking brake.
2. Step on the pedal and measure the pedal stroke.
3. If brake pedal stroke is outside of the specifications,
contact your local KUBOTA Dealer for adjusting the
brake.

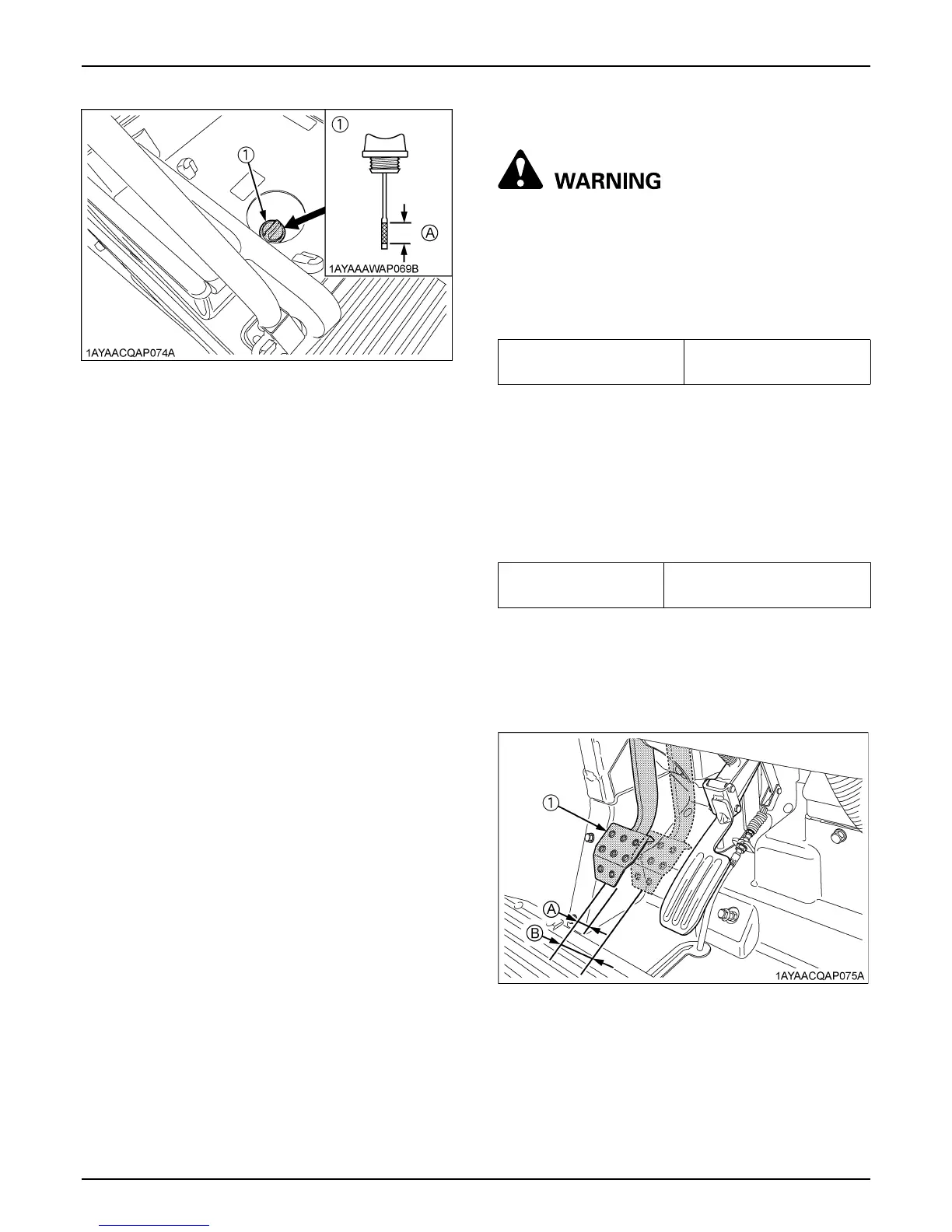

(1) Filling plug with dipstick (A) Oil level is acceptable within
this range
Proper brake pedal
free travel
8 to 18 mm (0.3 to 0.7 in.)
on the pedal
Pedal stroke
Less than 150 mm (5.9 in.)
on the pedal
(1) Brake pedal (A) "FREE TRAVEL"
(B) "PEDAL STROKE"
To Next Page
