PERIODIC SERVICE
76
B

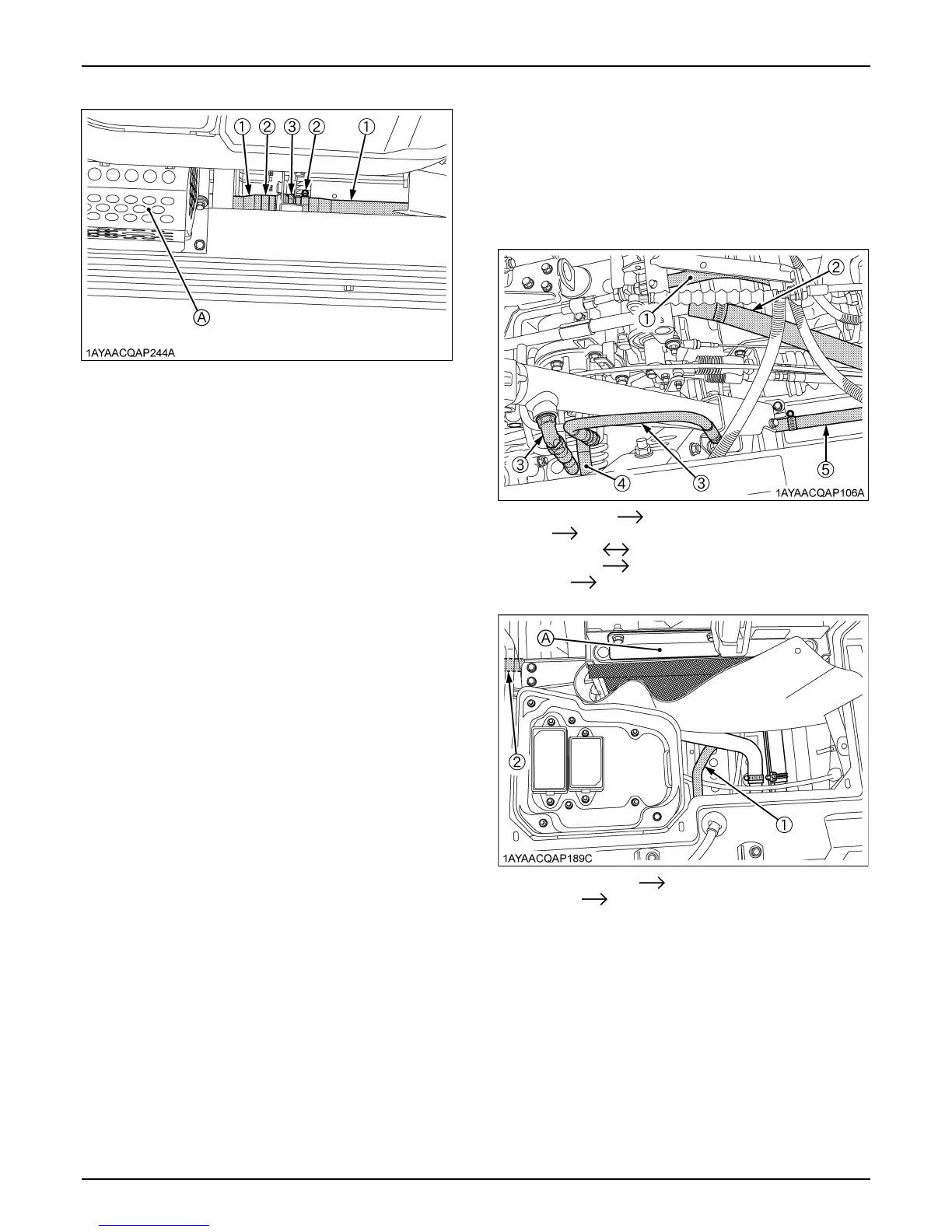

Checking Hydraulic Oil Line
1.
Check to see if the hoses and hose clamps are tight
and not damaged.
2.
If hoses and clamps are found to be worn or damaged,
replace or repair them at once.
[Only with hydraulic dump]
(1) Hose
(2) Hose clamp
(3) Joint
(A) Hydraulic tank
(1) Hydraulic pump
Control valve
(2) HST
Oil tank
(3) Control valve
Lift cylinder
(4) Control valve
Power steering unit
(5) Oil tank
HST
(1) Power steering unit
Oil cooler
(2) Oil coo
ler
O
il tank
(A) Oil coo
ler
97
99
