Kubota U17-3 Tier4 User Manual

21
HANDLING THE SAFETY DEVICES

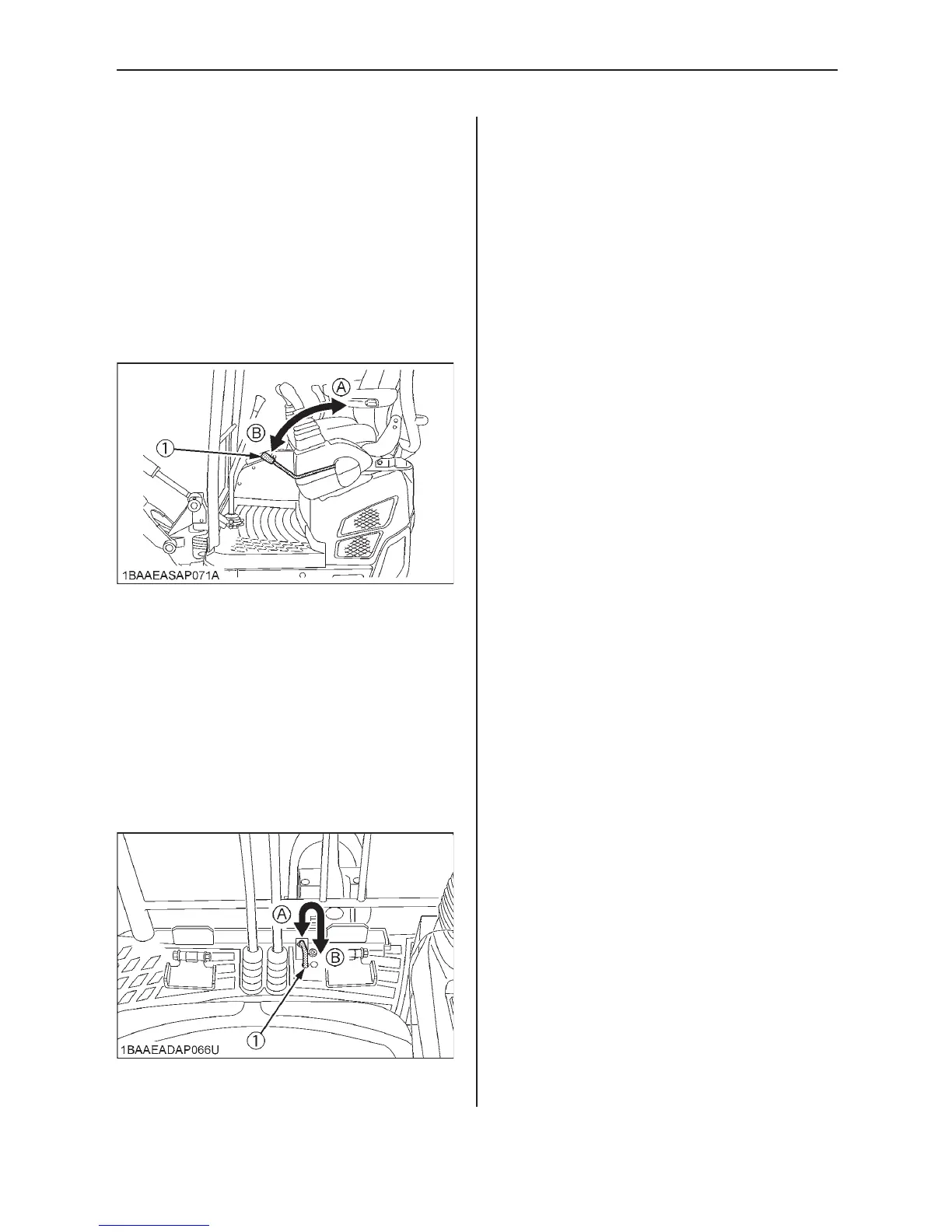

 Control lever lock
3
CAUTION
 When the excavator is not used
or left unattended, be sure to
place the lock lever in "Lock"
position .
The attachment control lever lock is located
on the left side.
(1) Lock lever for attachment (A) “Lock”
control (B) “Unlock”
 Swing lock pin
This pin is used to lock the swing frame. Set
the lock pin to the “Lock” position and the
swing frame gets locked to the track frame.
IMPORTANT:
 Before locking the lock pin, be sure to
place the swing frame and the track frame
in parallel with each other.
(1) Swing lock pin (A) “Unlock”
(B) “Lock”

Kubota U17-3 Tier4 Specifications

General

Engine Model	Kubota D902-E4
Engine Power	16.1 HP
Bucket Capacity	0.04 - 0.07 m³
Height	2, 490 mm
Bucket Breakout Force	3417 lbs
Travel Speed	2.5 mph
Max Digging Depth	7 ft 7 in
Width	980 mm
