36

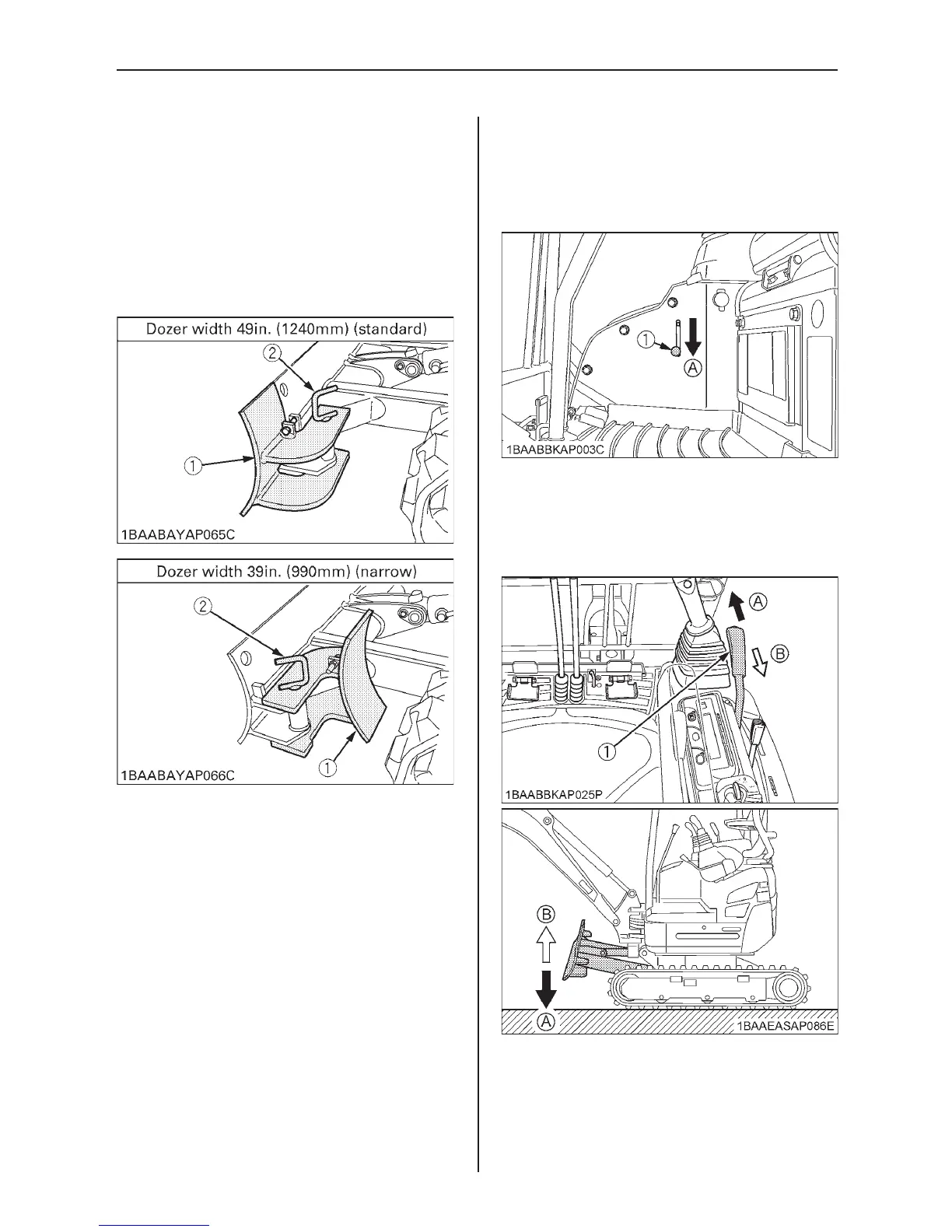

Adjustment of the Dozer Width
For changing from standard width to narrow
width:
1. Pull out the fi xing pin (2) and remove the
extension dozer (1).
2. Set as under illustration the extension
dozer (1), insert fi xing pin (2).
3. It is the same operations for opposite
side (left or right), and also for changing
from standard width to wide width.
(1) Extension dozer
(2) Fixing pin
Operation of the Dozer
NOTE:
While operating the dozer, the track width
change / dozer select lever must be set
position (A).
(1) Track width change / (A) “Dozer”
dozer select lever
1. To raise the dozer, pull back the control
lever. Pushing the control lever forwards,
lowers the dozer.
(1) Control lever (A) “Lower”
(B) “Raise”
2. While undertaking earth moving work,
control both drive levers with the left
hand and the control lever with the right
hand.
