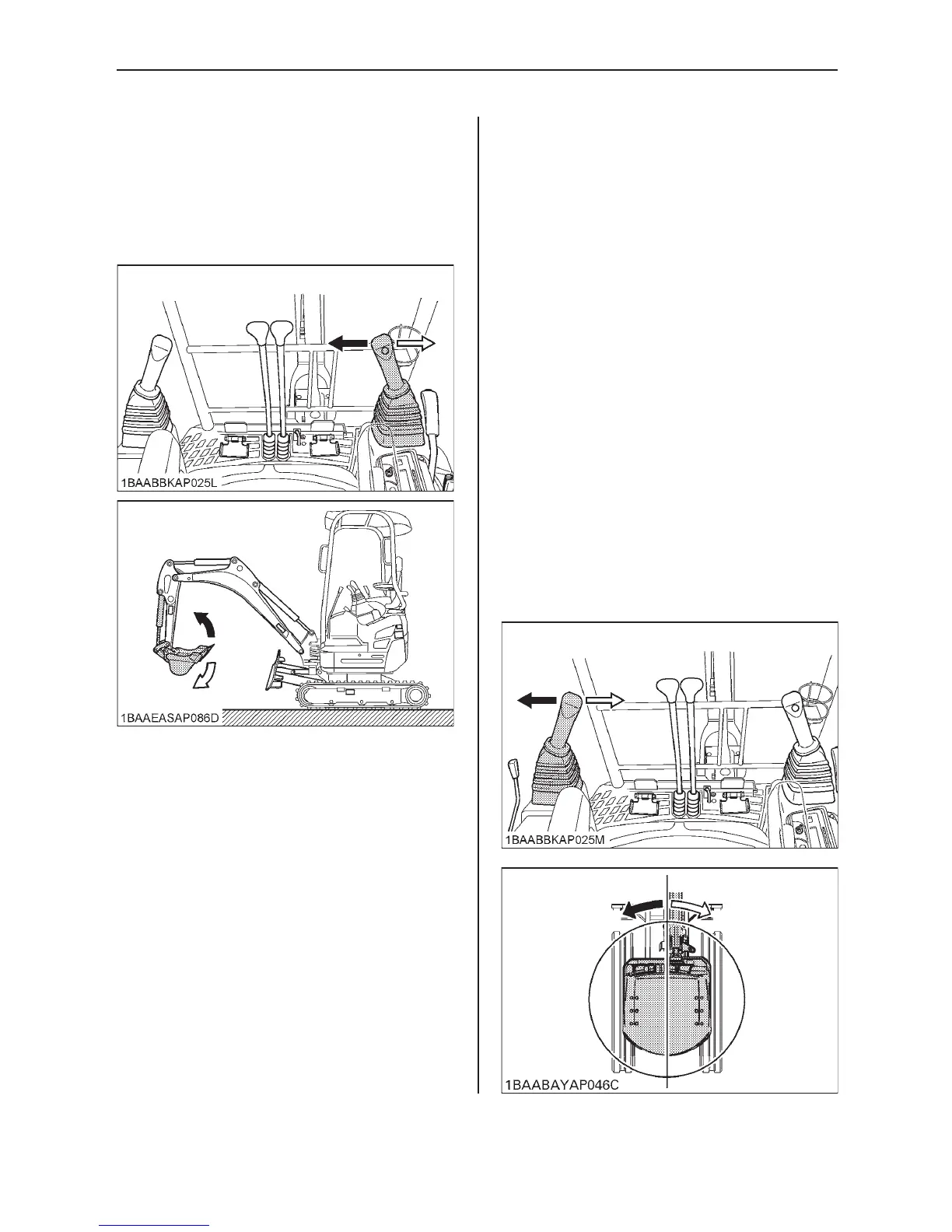

OPERATION OF BUCKET
To dig using the bucket, move the right
attachment control lever from the neutral
position left. Moving the control lever right,
moves the bucket outwards and dumps its
contents.
SWIVEL (UNIT SWING) OPERATION
3
CAUTION
To avoid personal injury:
When working in groups,
always let the others know
what you are going to do before
you do it.
Keep away from the working
area.
IMPORTANT:
Do not operate the left attachment control
lever abruptly from right to left (or vice
versa). Because of the law of inertia, this
causes an impact load on the swing gear
and the swing motor. Additionally, the life
of the excavator will be shortened.
Unlock the swing lock pin before doing
swivel operations.
1. Move the control lever to the left and the
upper structure will turn to the left.
2. Move the control lever to the right and
the upper structure will turn to the right.
