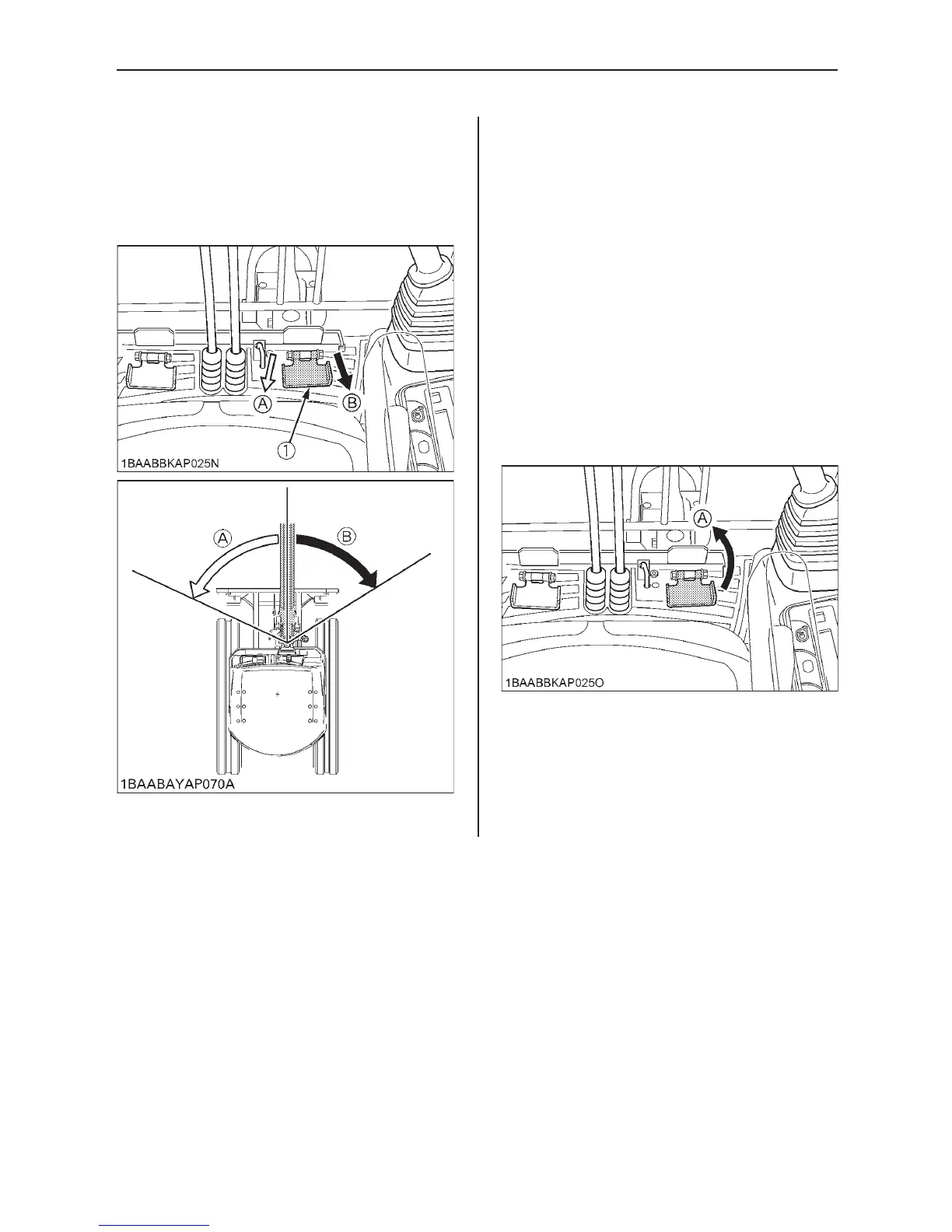

BOOM SWING OPERATION
1. Step on the left side of the pedal to swing
the boom to the left.
2. Step on the right side of the pedal to
swing the boom to the right.
(1) Boom swing pedal (A) Swing to left
(B) Swing to right
BOOM SWING PEDAL
3
WARNING
To avoid personal injury or death:
 Always keep your toes within
the edge of foot step; otherwise
there is a possibility that your
toes will be caught between
swing frame and boom or
boom cylinder.
3
CAUTION
To avoid personal injury:
 When boom swing operation is
not in use, fold the boom swing
pedal forward to fi x the pedal
from unexpected move.
(A) “Fix”

Kubota U17-3 Tier4 Specifications

General

Engine Model	Kubota D902-E4
Engine Power	16.1 HP
Bucket Capacity	0.04 - 0.07 m³
Height	2, 490 mm
Bucket Breakout Force	3417 lbs
Travel Speed	2.5 mph
Max Digging Depth	7 ft 7 in
Width	980 mm
