59
EVERY 500 SERVICE HOURS
Do all 50, 100 and 250 hour servicing at the
same time.
Drive unit Oil Change
(First Oil Change at 100 hours)
3
CAUTION
To avoid personal injury:
Lower attachments to the
ground, stop the engine
and remove the key before
undertaking the oil change.

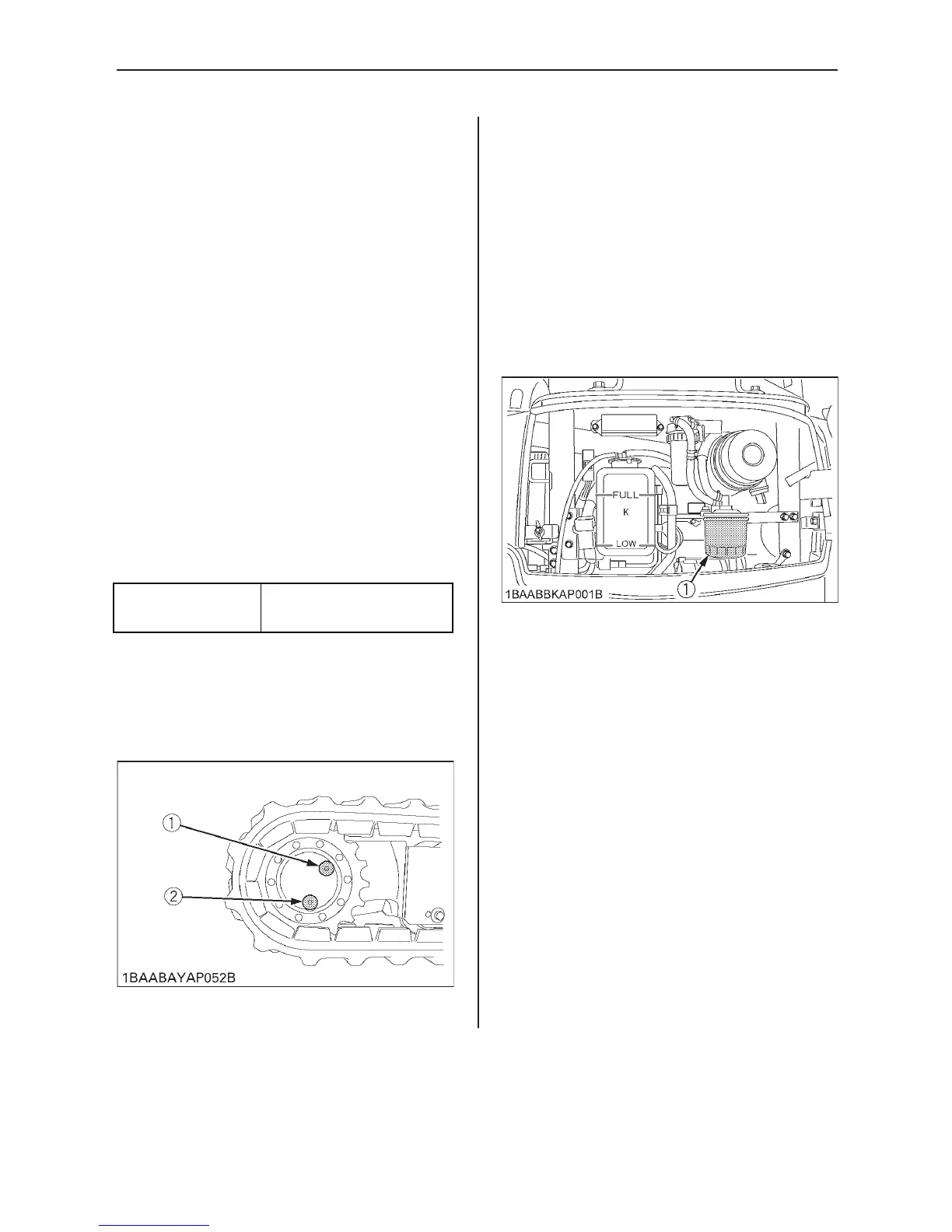

1. Rotate the track so that the drain plug of
the drive unit is in the bottom position.
2. Remove the drain plug to let the oil run
out. Screw in and tighten the drain plug
again and fi ll with gear oil through the oil
check port.
3. Fill oil until it overfl ows out of the oil
check port.
Oil change
- fi rst oil change after 100 hrs
- then every 500 hrs
- or at least once a year
4. Use prescribed gear oil SAE 90.
(1) Oil check port (also serves as oil fi lling port)
(2) Drain plug
Replacing of Fuel Filter
3
CAUTION
To avoid personal injury:
Keep fi re away.
1. Close the cock of the water separator.
Remove the fi lter with the supplied fi fter
wrench.
2. Add fuel to the new fi lter before
installing.
3. Apply a light fi lm of fuel to the seal of the
new fi lter and turn in tightly by hand.
(1) Fuel fi lter
IMPORTANT:
After exchange of the fi lter, the fuel
system must purged.
Gear oil volumes
approx. 0.25 L
