51

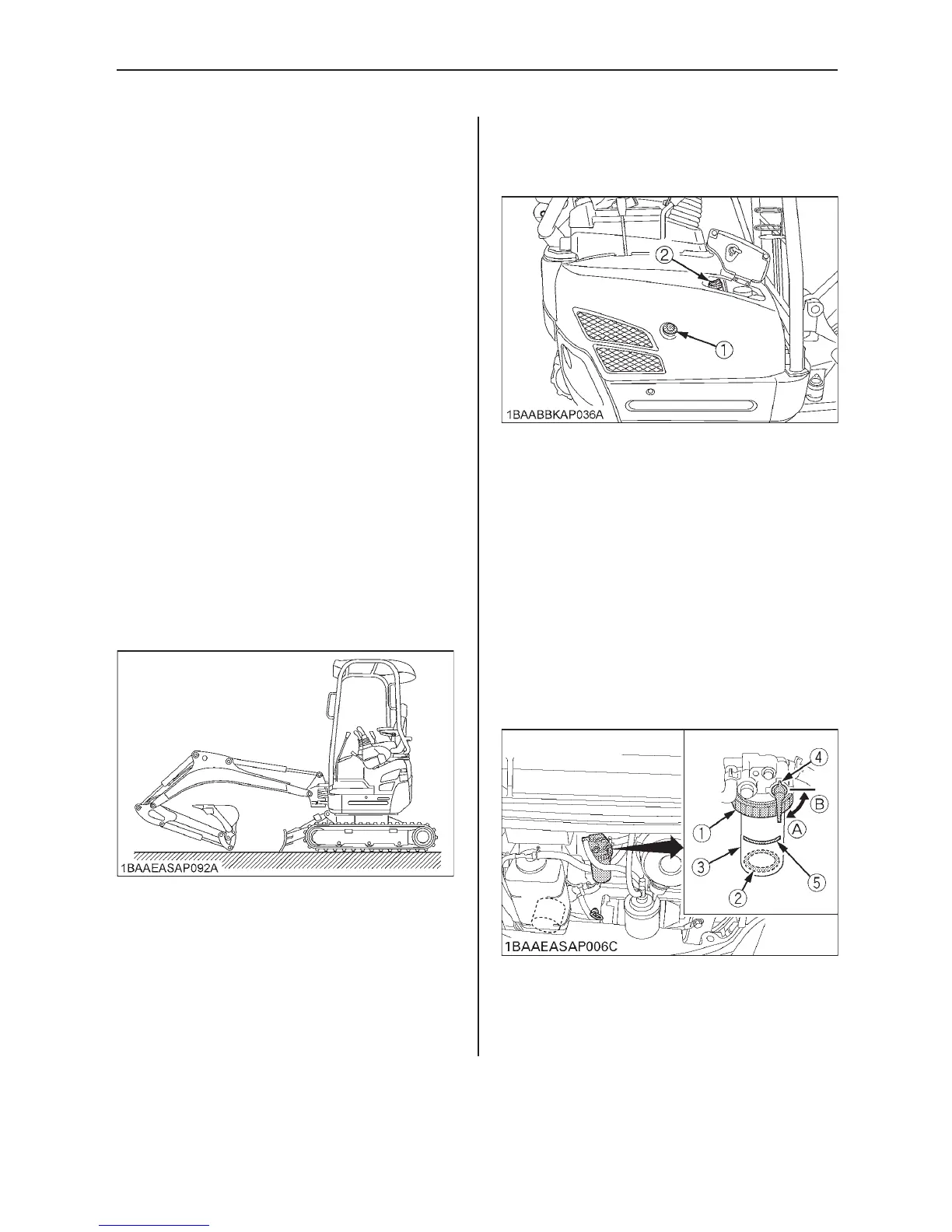

Check Hydraulic Oil Level
3
CAUTION
To avoid personal injury:
First lower all attachments
on the ground then stop the
engine and remove the key.
IMPORTANT:
Before fi lling oil, wipe away all sand and
dust from around the oil port. Make sure
you use an identical type of hydraulic
fl uid.
The excavator has been fi lled with
hydraulic fl uid before delivery. See
“RECOMMENDED OILS”. (Do not mix
different oils!)
1. Park the excavator on a fi rm, fl at and
level surface.
Adjust the swing angle to the center.
Pull in the arm completely.
Pull in the bucket completely.
Lower the attachments and dozer blade
to the ground and stop the engine.
Track width increases [16 in. (1240
mm)].
2. Check the oil level as to whether it lies
on the center of the gauge at normal
temperature (10 to 30ºC).
3. Enough oil is present if the oil level lies
between the markings.
4. Should the oil level be too low, fi ll oil
through the oil port before starting the
engine. This step is important for the
protection of the hydraulic system.
(1) Specifi ed oil level
(2) Tank cap
Checking water separator
1. Open the engine bonnet.
2. When the separated water is being
drained, the red fl oat moves upward.
When the red fl oat has reached the
indication line, close the cock so that no
fuel can run out. Now loosen the ring
nut, remove the cup, empty the cup and
clean the cup.
3. Place the cup back into position. Bleed
the fuel system.
4. Finally, do not forget to open the cock.
(1) Ring nut (A) “Open”
(2) Float (B) “Closed”
(3) Cup
(4) Cock
(5) Indication line
