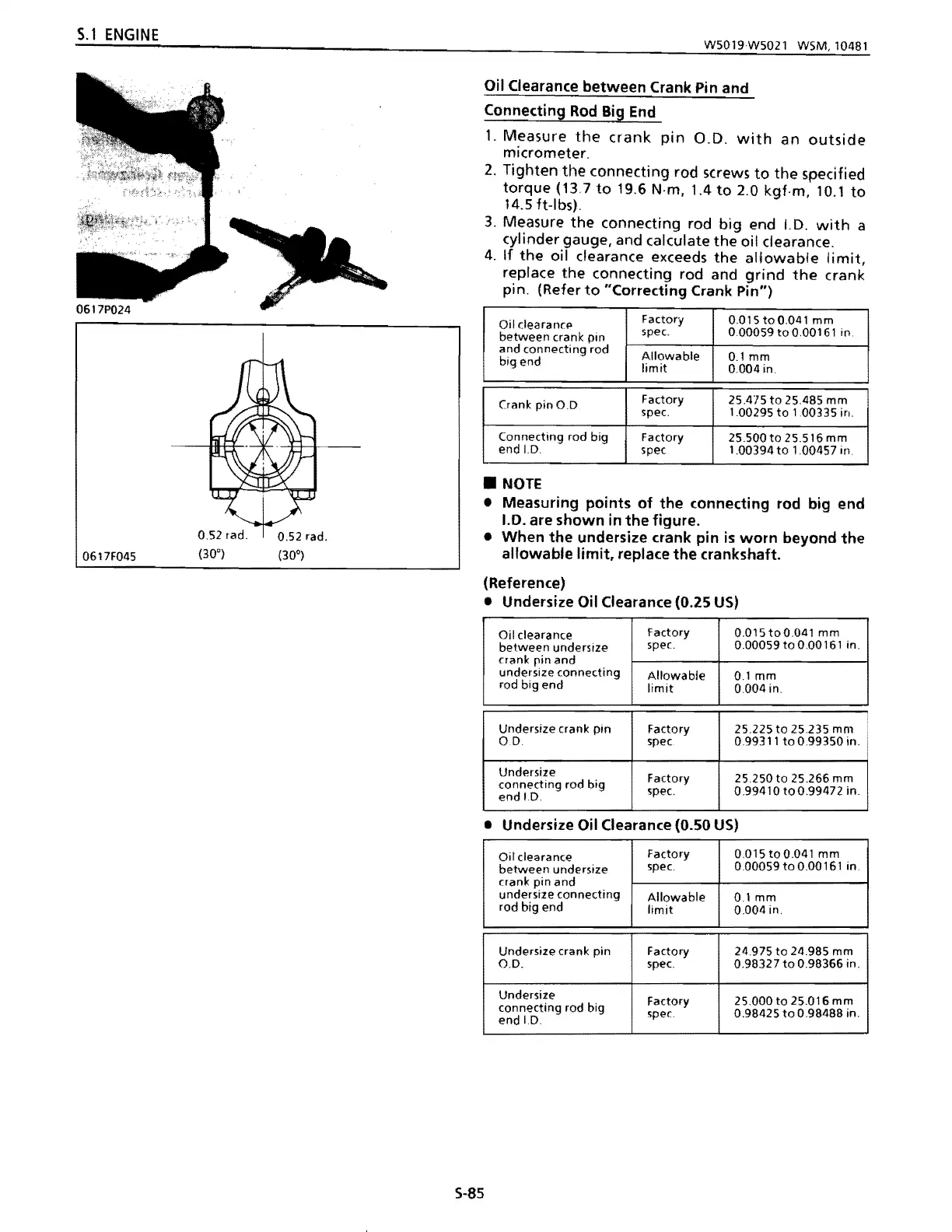

5.1 ENGINE
W5019W5021 W5M,10481
0.52 rad.
0.52 rad.
0617F045
(30°)
(30°)
Oil Clearance between Crank Pin and
Connecting Rod Big End
1. Measure the crank pin O.D. with an outside
micrometer.
2. Tighten the connecting rod screws to the specified
torque (137 to 19.6 N·m, 1.4 to 2.0 kgf·m, 10.1 to
14.5 ft-Ibs).
3. Measure the connecting rod big end I.D. with a
cylinder gauge, and calculate
the oil clearance.
4. If the oil clearance exceeds the allowable limit,
replace the connecting rod and grind the crank
pi n. (Refer to "Correcting Crank Pin")
Oil dearancl'
between crank pin
and connecting
rod
big end
Factory
spec.
Allowable
limit
0.015toO.041 mm
000059 toO.00161 in.
0.1 mm
0004 in.
Crank pin
0.0
Factory
spec.
25.4'15
to 25.485 mm
1.00295
to 1.00335 in.
Connecting rod big
end I.D.
Factory
spec
25.500
to 25.516 mm
1.00394
to 100457 in.
• NOTE
• Measuring points of the connecting rod big end
1.0. are shown in the figure.
• When the undersize crank pin is worn beyond the
allowable limit, replace the crankshaft.
(Reference)
• Undersize Oil Clearance
(0.25 US)
Oil clearance
between undersize
crank pin
and
undersize connecting
rod big end
Factory
spec.
Allowable
limit
0.015toO.041 mm
0.00059to000161 in.
0.1 mm
0.004 in.
Undersize crank pin
0.0.
Factory
spec
25.225
to 25.235 mOl
099311 to 099350 in.
Undersize
connecting
rod big
end 1.0.
Factory
spec.
25.250 to 25.266 mm
0.99410 to 0.99472 in.
• Undersize Oil Clearance (0.50 US)
Oil clearance
between undersize
Factory
spec.
0.015toO.041 mm
000059toO.00161 in.
crank pin
and
undersize connecting
rod big end
Allowable
limit
0.1 mm
0.004 in.
Undersize crank pin
0.0.
Factory
spec.
24.975
to 24.985 mm
0.98327
to 0.98366 in.
Undersize
connecting rod big
end I.D.
Factory
spec.
25.000 to 25.016 mm
0.98425 to 0.98488 in.
5-85
