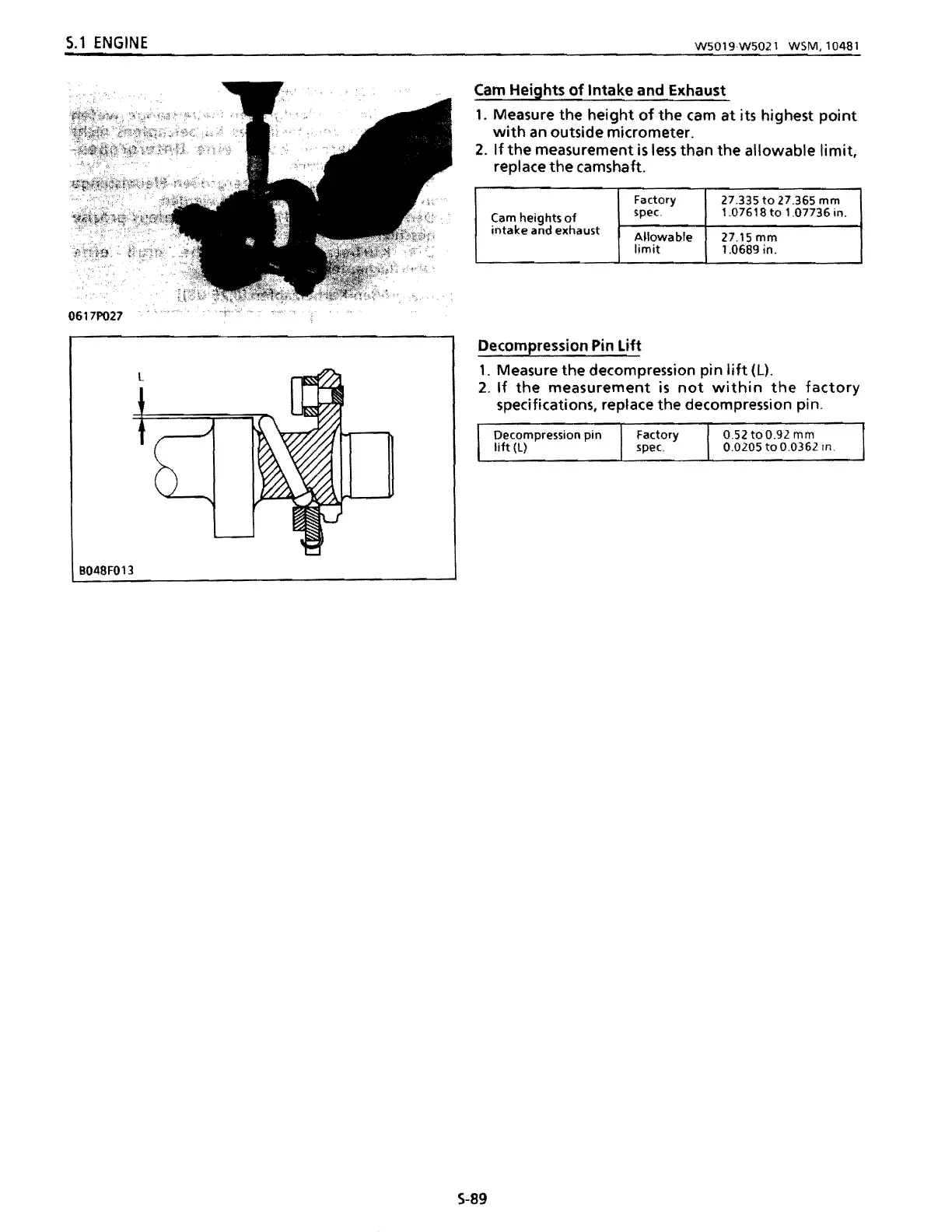

ENGINE
WS019WS021
WSM,10481
l
B048F013
Cam
Heights
of
Intake
and
Exhaust
1.
Measure
the
height
of
the
cam
at
its
highest
point
with
an
outside
micrometer.
2.
If
the
measurement
is
less
than
the
allowable
limit,
replace
the
camshaft.
Cam
heights
of
intake
and
exhaust
Factory
spec.
27.335
to
27.365
mm
1.07618
to
1.07736
in.
Allowable
27.15mm
limit
1.0689
in.
Decompression
Pin
Lift
1.
Measure
the
decompression
pin
lift
(L).
2.
If
the
measurement
is
not
within
the
factory
specifications,
replace
the
decompression
pin.
Decompression
pin
Factory
0.52toO.92mm
lift
(L)
spec.
0.0205
to
0.0362
tn.
S-89
119
121
