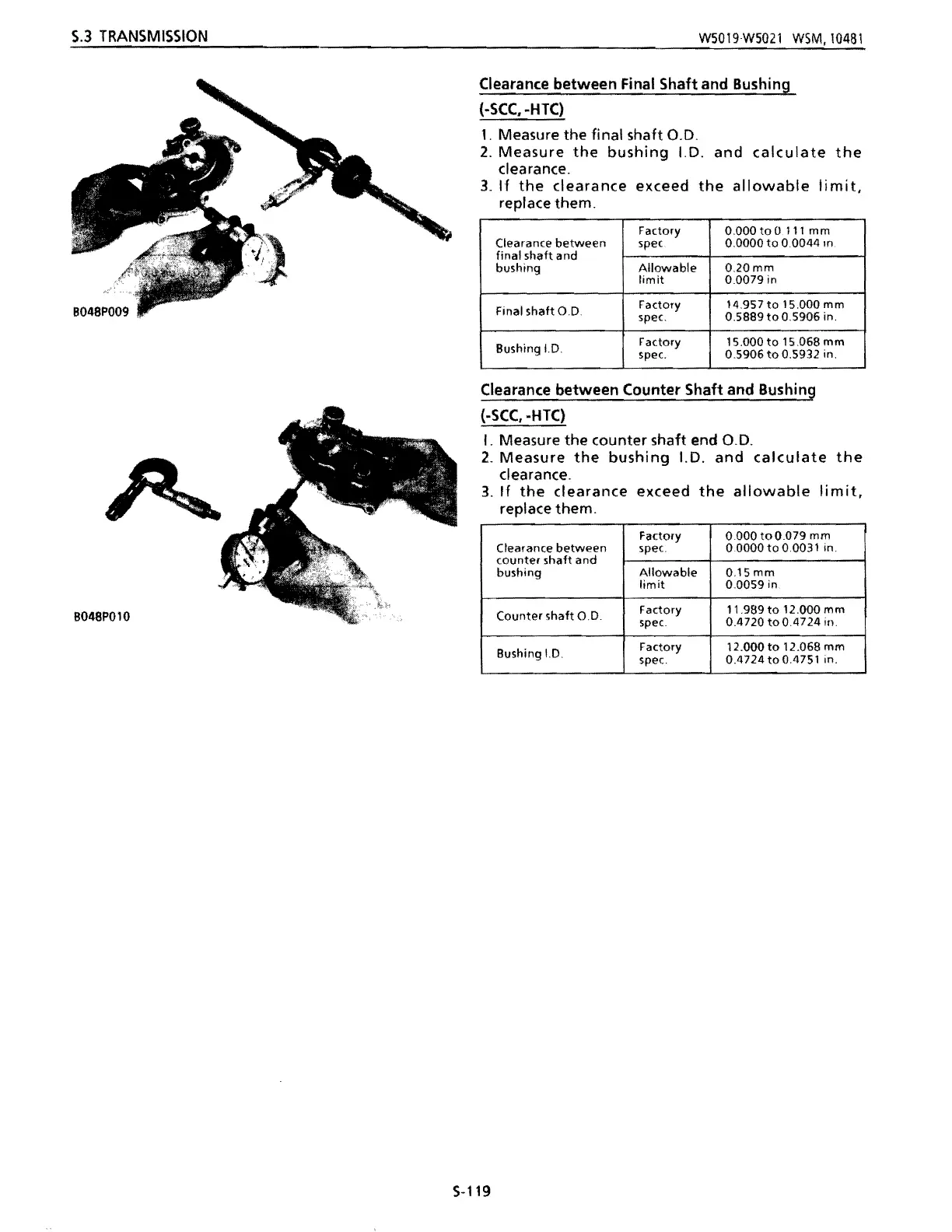

S.3 TRANSMISSION
W5019W5021 WSM.l0481
Clearance between Final Shaft and Bushing
(-SCC. -HTC)
1. Measure the final shaft 0.0.
2. Measure the bushing 1.0. and calculate the
clearance.
3.
If the clearance exceed the allowable limit,
replace them.
Clearance between
Factory
spec
O.OOOtoD 111 mm
0.0000 to 0.0044 In
final shaft and
bushing Allowable
limit
0.20 mm
0.0079 in
Final
shaft 0.0.
Factory
spec.
14.957
to 15.000 mm
0.5889 to 0.5906 in.
Bushing
'-D.
Factory
spec.
15.000
to 15068 mm
0.5906 to 0.5932 in.
B048P010
Clearance between Counter Shaft and Bushing
(-SCC, -HTe)
I. Measure the counter shaft end 0.0.
2. Measure the bushing 1.0. and calculate the
clearance.
3. If the clearance exceed the allowable limit,
replace them.
Clearance between
Factory
spec.
0.000
toO.079 mm
00000 to 0.0031 in.
counter shaft and
bushing Allowable
limit
0.15 mm
0.0059 in
Counter shaft O.D.
Factory
spec.
11989 to 12.000 mm
0.4720 to 0.4724 in.
Bushing '-D.
Factory
spec.
12.000
to 12.068 mm
0.4724 to 0.4751 in.
$-119
